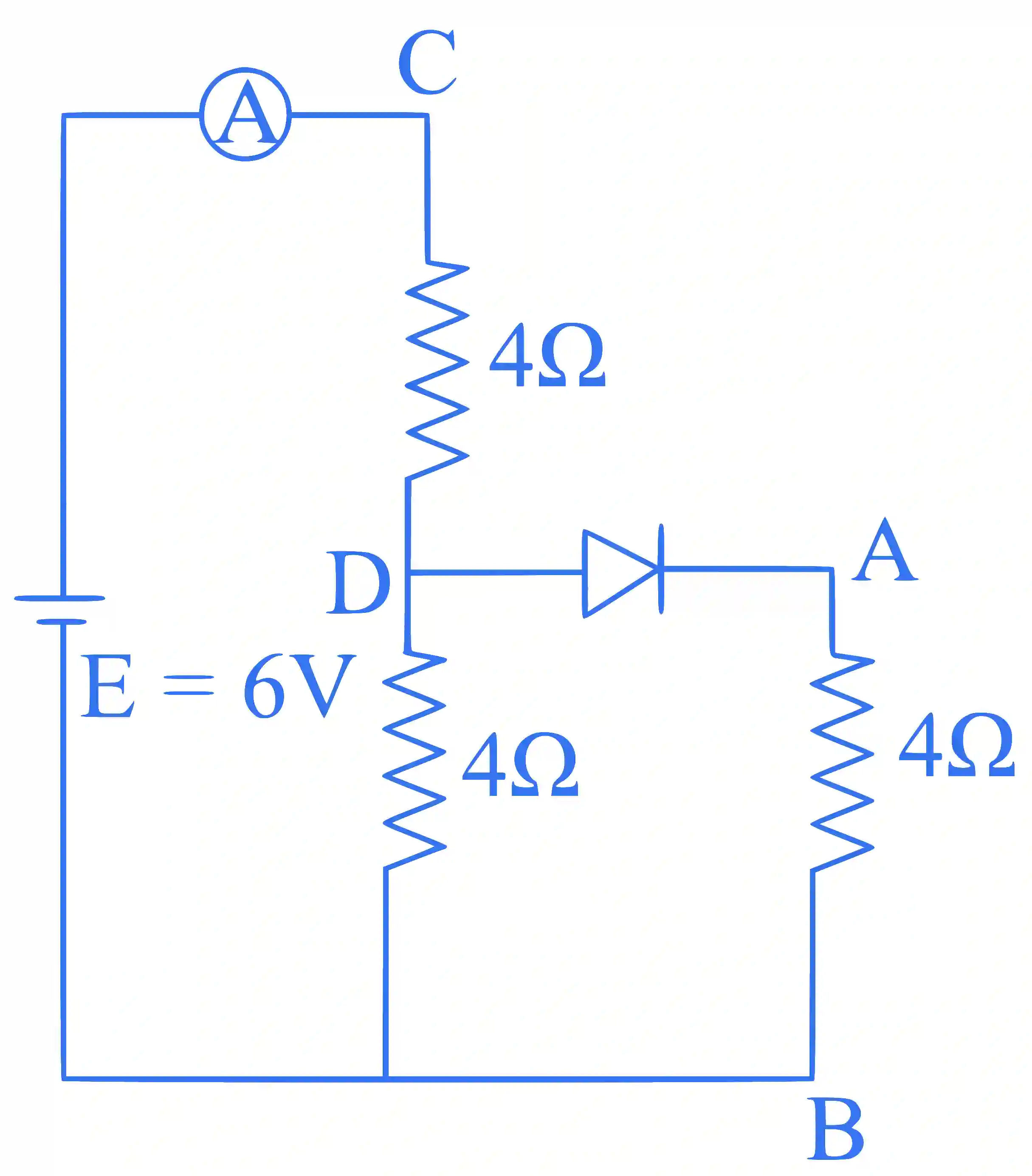

Refer to the circuit diagram given in the figure. which of the following observations are correct?

A. Total resistance of circuit is $6 \Omega$

B. Current in Ammeter is 1 A

C. Potential across $A B$ is 4 Volts.

D. Potential across CD is 4 Volts

E. Total resistance of the circuit is $8 \Omega$ .

Choose the correct answer from the options given below:

JEE Main 2025 (Online) 23rd January Morning Shift Physics - Semiconductor Question 5 English

Accepted Answer

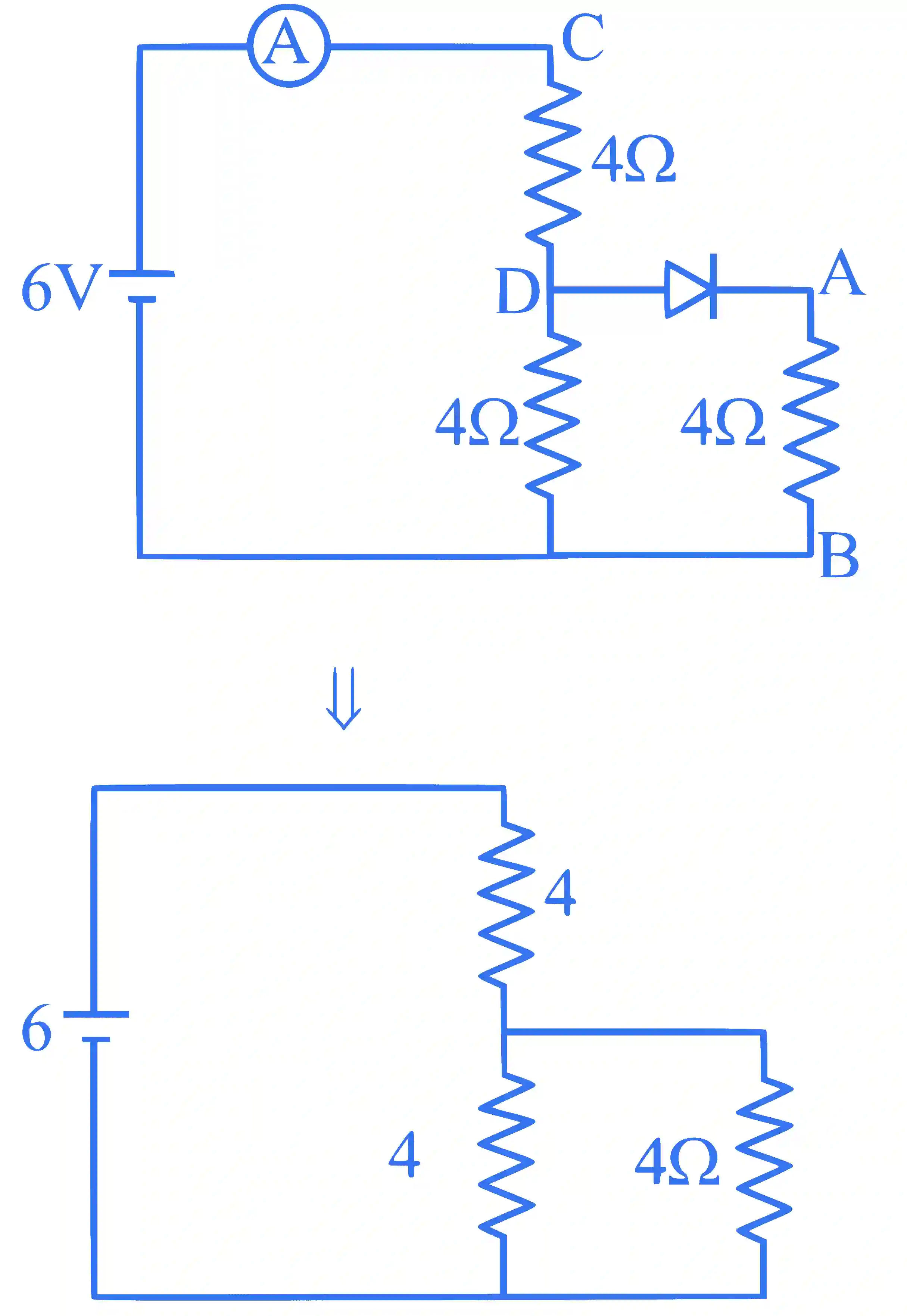

JEE Main 2025 (Online) 23rd January Morning Shift Physics - Semiconductor Question 5 English Explanation 1

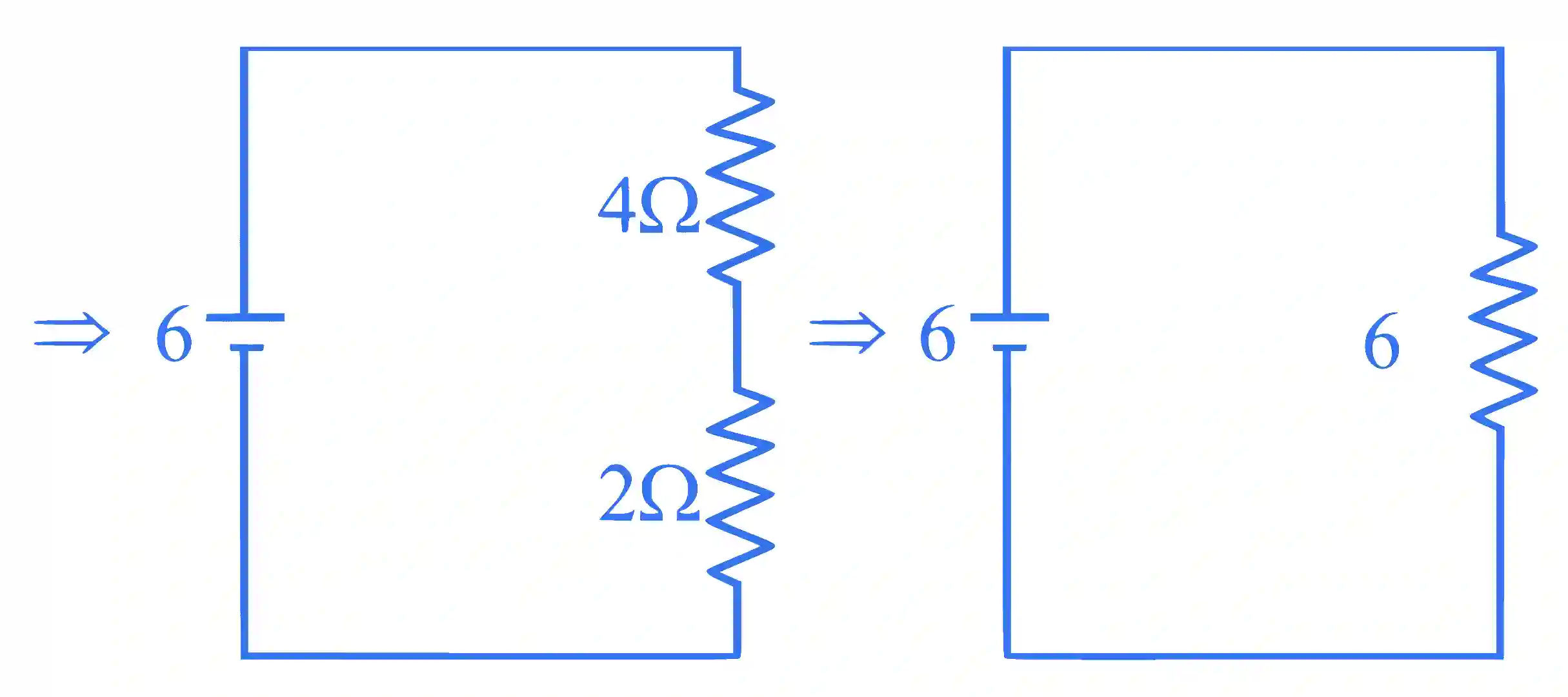

JEE Main 2025 (Online) 23rd January Morning Shift Physics - Semiconductor Question 5 English Explanation 2

Current through ammeter $=1 \mathrm{~A}$

$\mathrm{R}_{\text {net }}=6 \Omega$

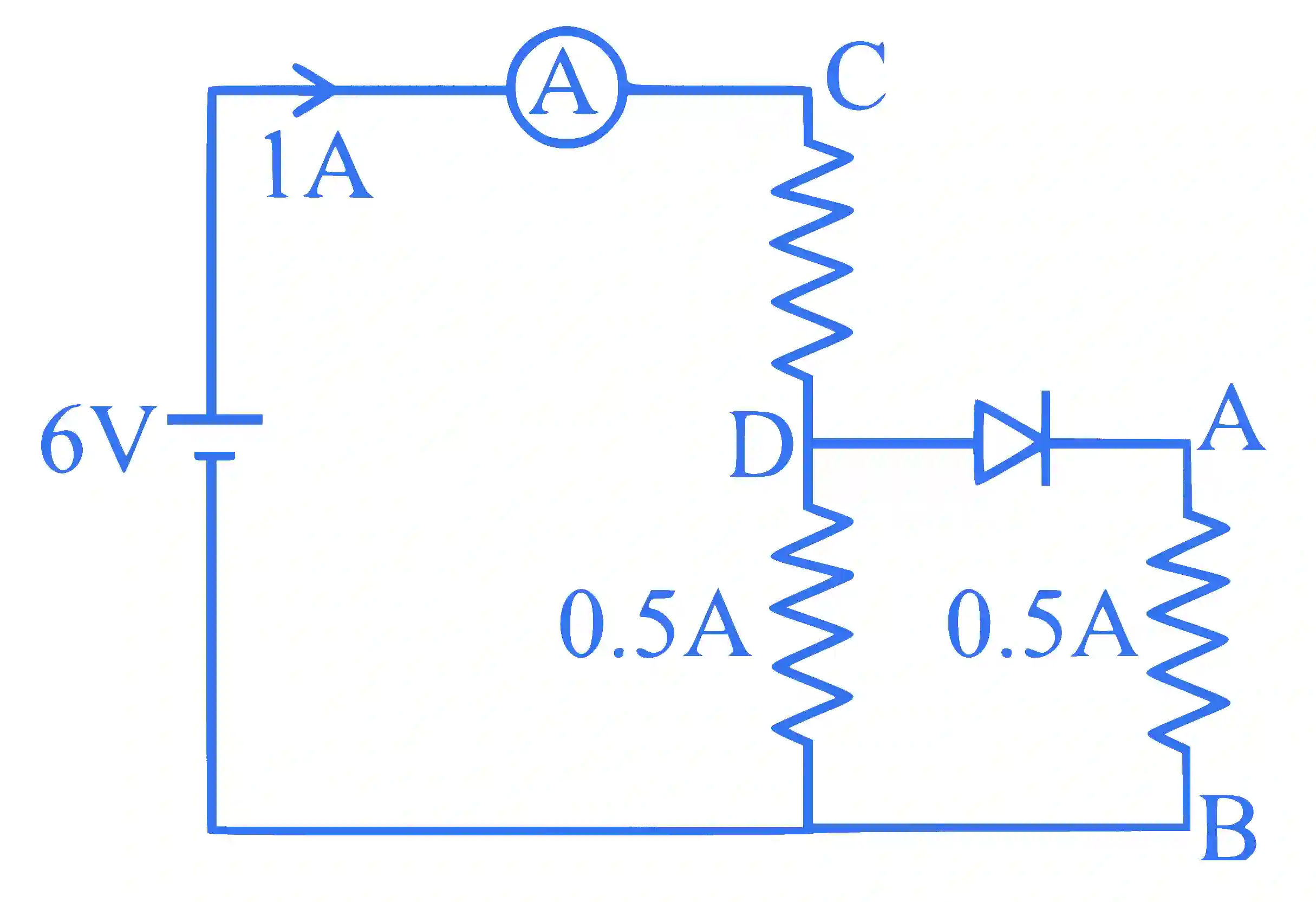

JEE Main 2025 (Online) 23rd January Morning Shift Physics - Semiconductor Question 5 English Explanation 3

$\begin{aligned} & \mathrm{V}_{\mathrm{AB}}=0.5 \times 4=2 \mathrm{volt} \\ & \mathrm{~V}_{\mathrm{CD}}=1 \times 4=4 \mathrm{volt} \end{aligned}$

$\mathrm{A}, \mathrm{B} \& \mathrm{D}$ are correct
