Question

Verified Solution • 2025–26 Session moderate

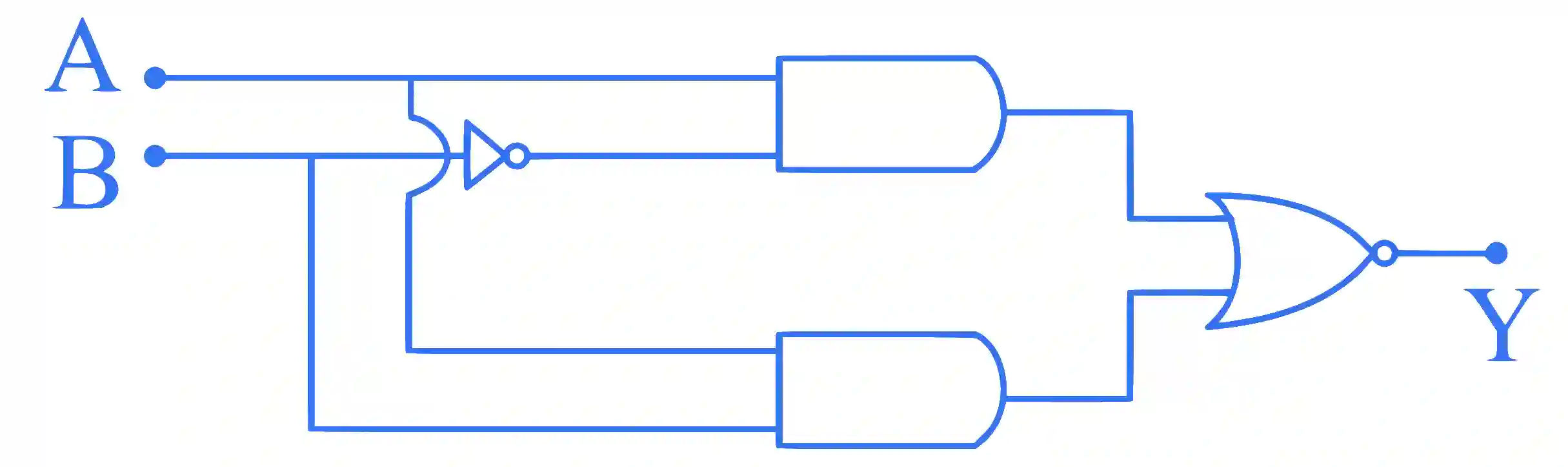

Which of the following circuits has the same output as that of the given circuit?

JEE Main 2025 (Online) 28th January Morning Shift Physics - Semiconductor Question 1 English

A https://ik.imagekit.io/novatra/photos/d52458d4bf5905d51f82864ea5dbced4b8dced5a333e6865f848b57b05f344cc.webp
B https://ik.imagekit.io/novatra/photos/f2ea1364c0943266d207b0c53f348c7b8623324679c8bbcbdd9a48d0a964d5a7.webp
C https://ik.imagekit.io/novatra/photos/a0f37e1e202c9ef87e9eb8a243bcb341ba852fec3405ce03739e336a75c20b4b.webp
D https://ik.imagekit.io/novatra/photos/3255cff105db8850e64f84a6f01eeee22a1f2705d328be44435cddbd4d22479d.webp

Accepted Answer

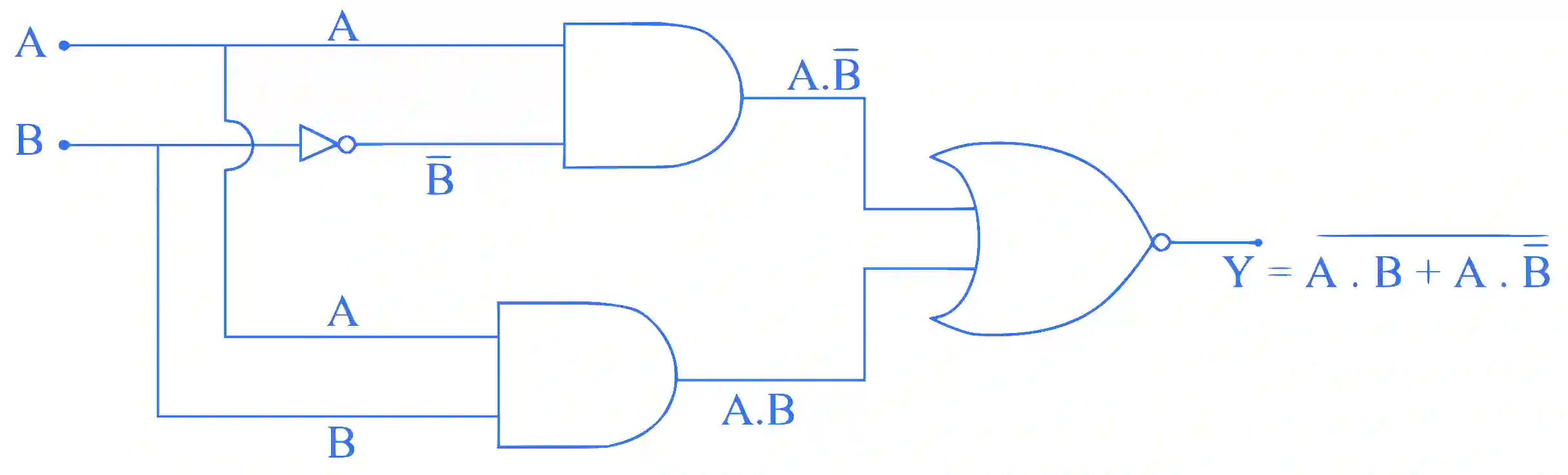

JEE Main 2025 (Online) 28th January Morning Shift Physics - Semiconductor Question 1 English Explanation 1

$Y = \overset{―}{A . B + A . \overset{―}{B}} = \overset{―}{A (B + \overset{―}{B})} = \overset{―}{A I}$

$\Rightarrow Y = \overset{―}{A}$

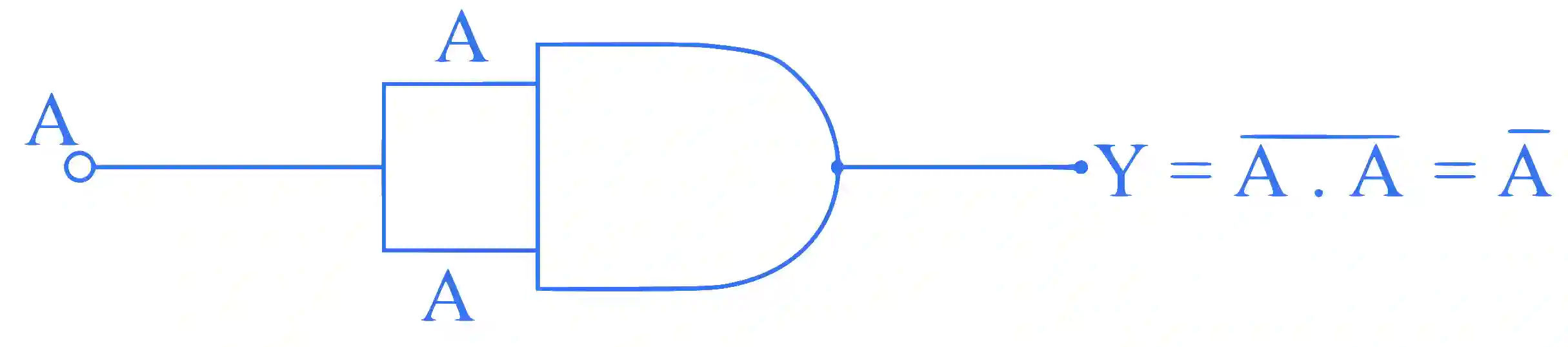

1. JEE Main 2025 (Online) 28th January Morning Shift Physics - Semiconductor Question 1 English Explanation 2

(As $A . A = A$

Hence, option 1 is correct.
