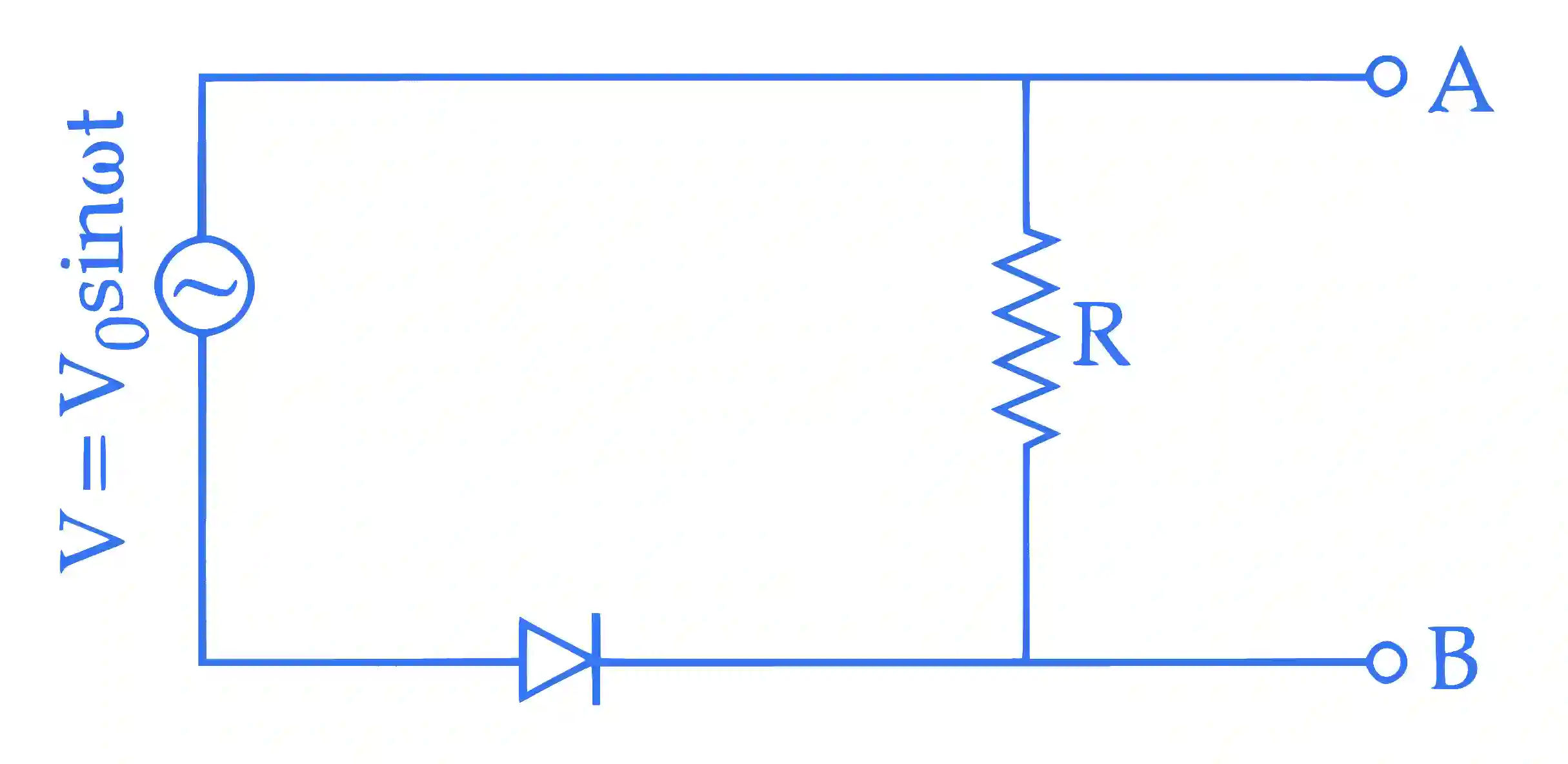

In the circuit shown here, assuming threshold voltage of diode is negligibly small, then voltage $V_{AB}$ is correctly represented by:

A $V_{AB}$ would be zero at all times.
B https://ik.imagekit.io/novatra/photos/41b3e7c90079f454942ccfd53411fd3363ac03efe67649499d14cc989b296242.webp
C https://ik.imagekit.io/novatra/photos/e7fa35aa478f0e1666a188dbef6a6138710c27a2436e7fd138190bc4112fa450.webp
D https://ik.imagekit.io/novatra/photos/9952fa4a57ae608052558eb46167f227c404a58d6a8ee52c492ff4d6723cc90a.webp

Accepted Answer

$\mathrm{V}=\mathrm{V}_0 \sin \omega \mathrm{t}$

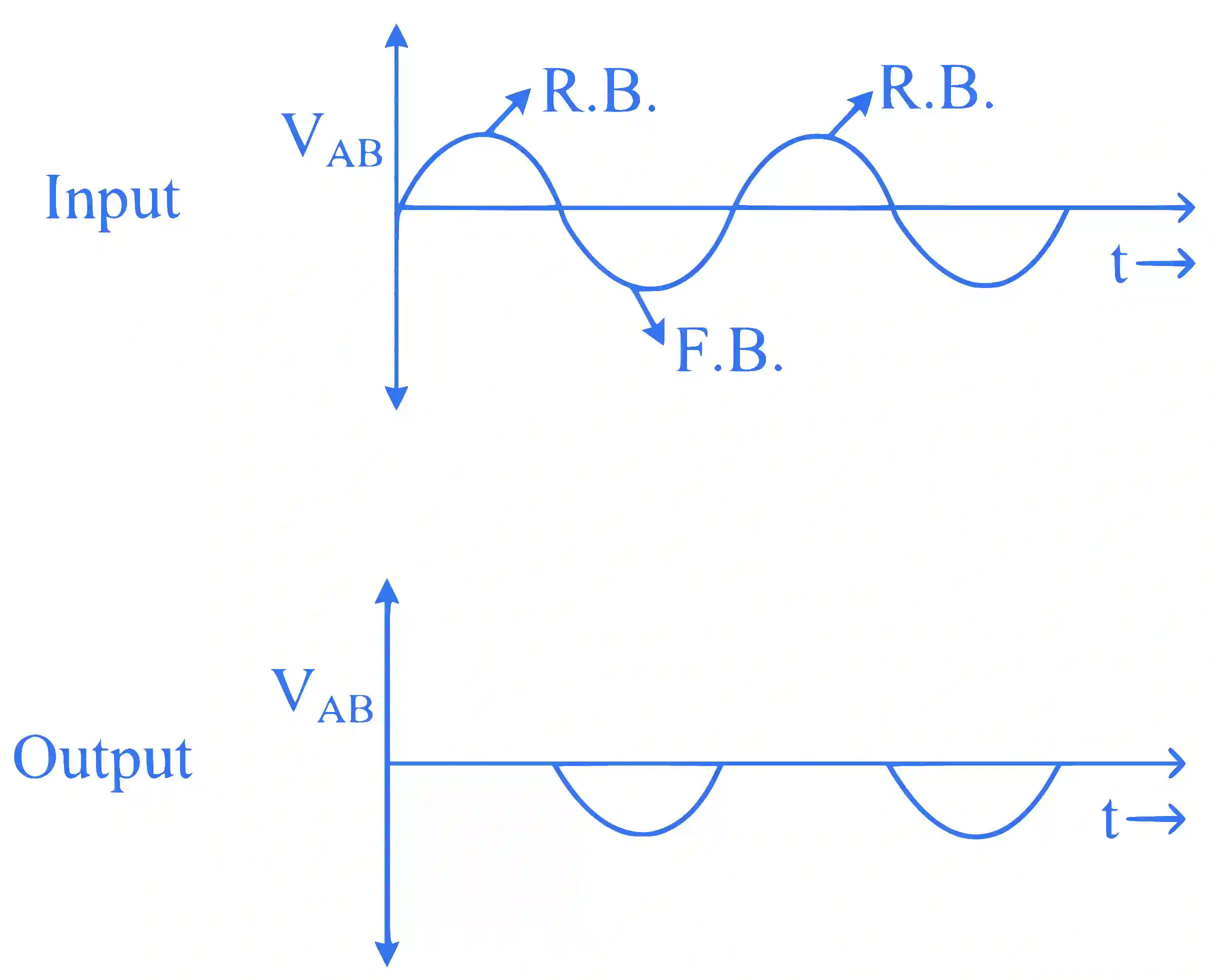

JEE Main 2025 (Online) 28th January Evening Shift Physics - Current Electricity Question 8 English Explanation

Step-by-Step Verified Solution
