Question

Verified Solution • 2025–26 Session moderate

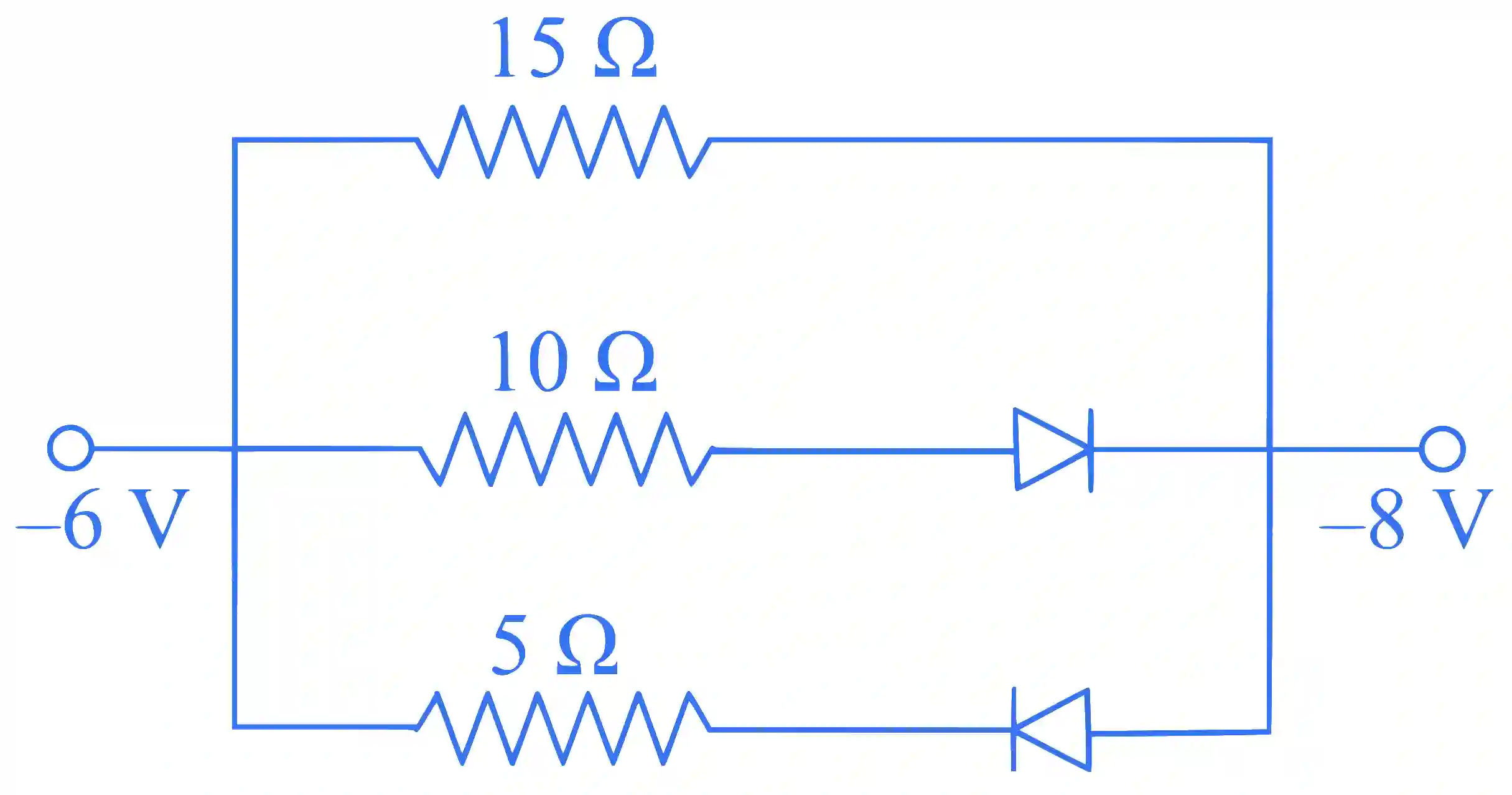

The value of net resistance of the network as shown in the given figure is :

JEE Main 2024 (Online) 4th April Morning Shift Physics - Semiconductor Question 18 English

Accepted Answer

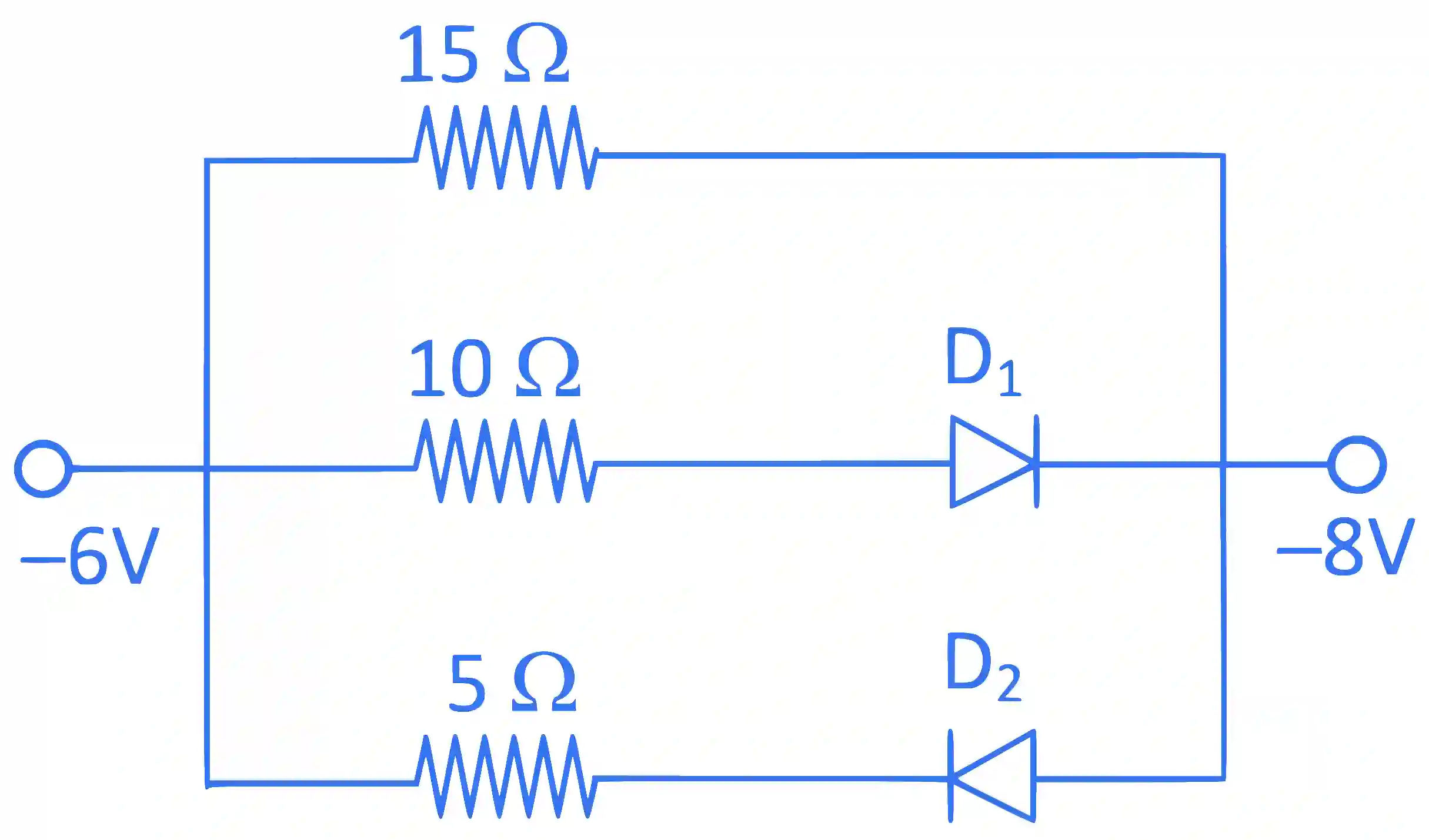

JEE Main 2024 (Online) 4th April Morning Shift Physics - Semiconductor Question 18 English Explanation

Here $D_{1}$ is forward wise while $D_{2}$ is reversed wise

So net resistance between end, $R = \frac{15 \times 10}{25} = 6 Ω$
