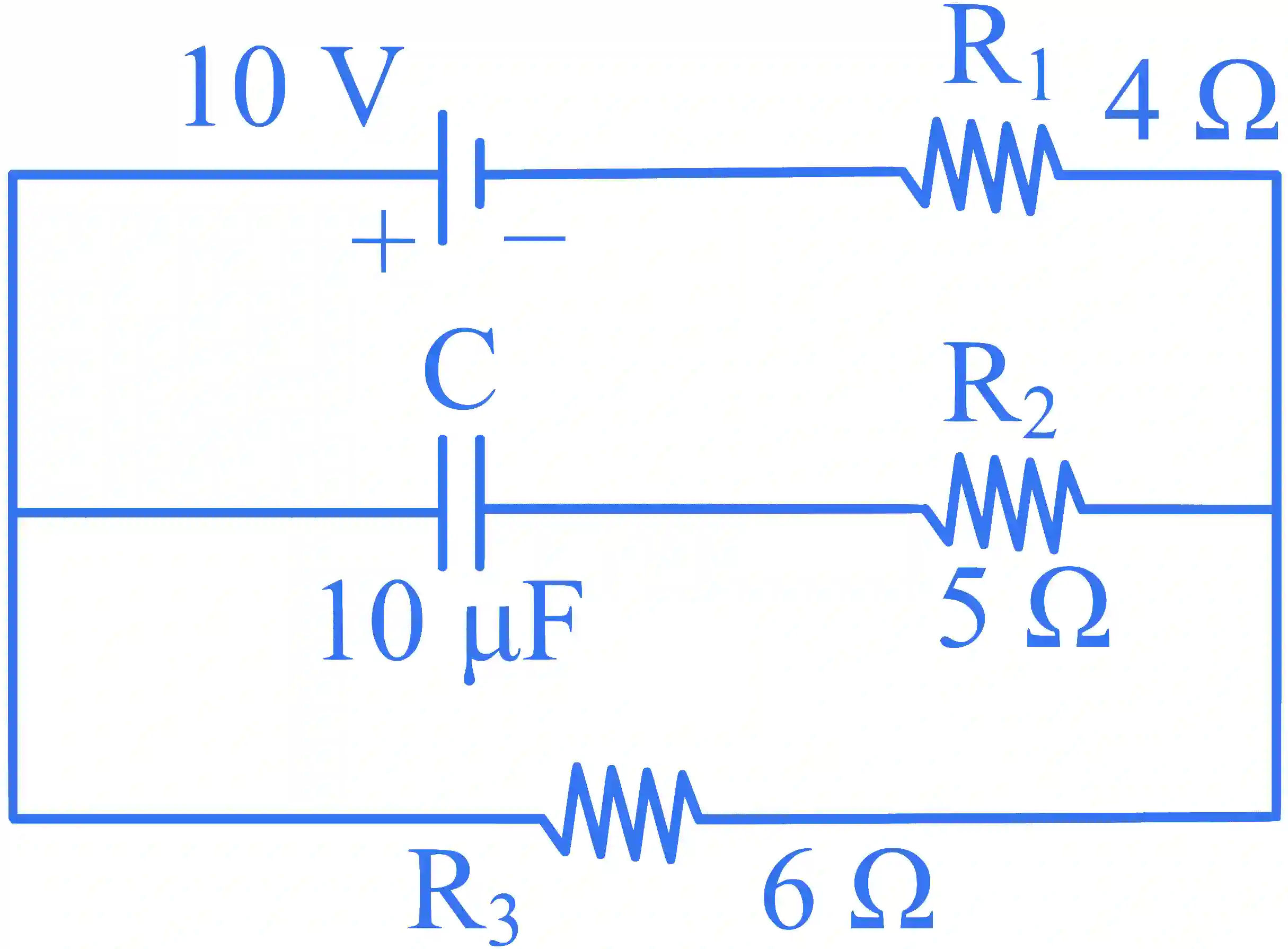

In an electrical circuit drawn below the amount of charge stored in the capacitor is _______ $\mu$ C.

Step-by-Step Verified Solution

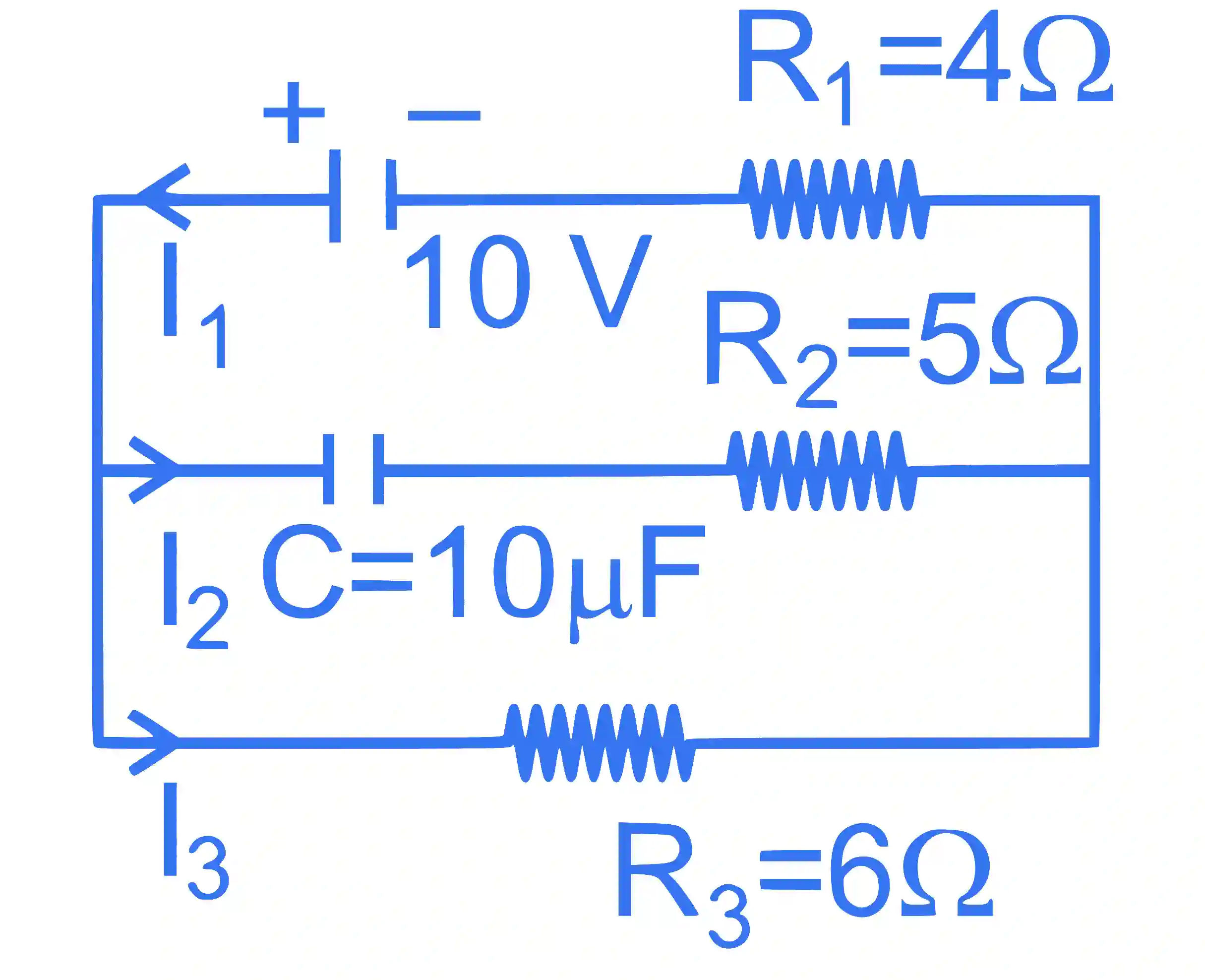

In steady state there will be no current in branch of capacitor, so no voltage drop across $\mathrm{R}_2=5 \Omega$

$$\begin{array}{rl}& {\mathrm{I}}_2=0\\ \\ & I_1=I_3=\frac{10}{4+6}=1\mathrm{A}\\ \\ & {\mathrm{V}}_{{\mathrm{R}}_3}={\mathrm{V}}_{\mathrm{c}}+{\mathrm{V}}_{{\mathrm{R}}_2},{\mathrm{V}}_{{\mathrm{R}}_2}=0\end{array}$$

$<mjx-container class="MathJax CtxtMenu_Attached_0" jax="CHTML" display="true" tabindex="0" ctxtmenu_counter="1" style="font-size: 130.9$
