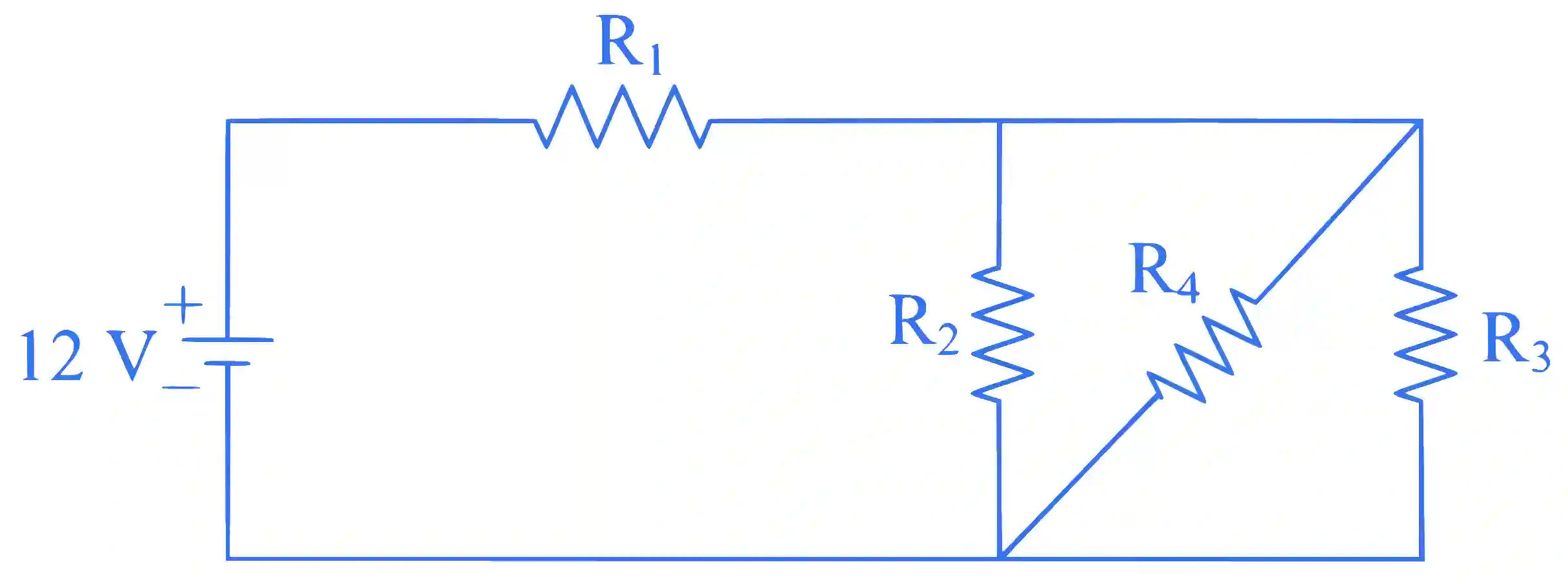

In the given figure R1=10Ω,R2=8Ω,R3=4Ω and R4=8Ω. Battery is ideal with emf 12 V. Equivalent resistant of the circuit and current supplied by battery are respectively :

JEE Main 2024 (Online) 5th April Morning Shift Physics - Current Electricity Question 19 English

Multiple Choice Options

  • A 12Ω and 11.4 A
  • B 10.5Ω and 1.14 A
  • C 10.5Ω and 1 A
  • D 12Ω and 1 A

Step-by-Step Verified Solution

Req=12Ω and, I=EReq=1212=1 A
