QJEEM24Phda98: JEE Main 2024 Physics - Class 12 JEEM24Phda98 Solution: Identify the logic operation performed by the given circuit.

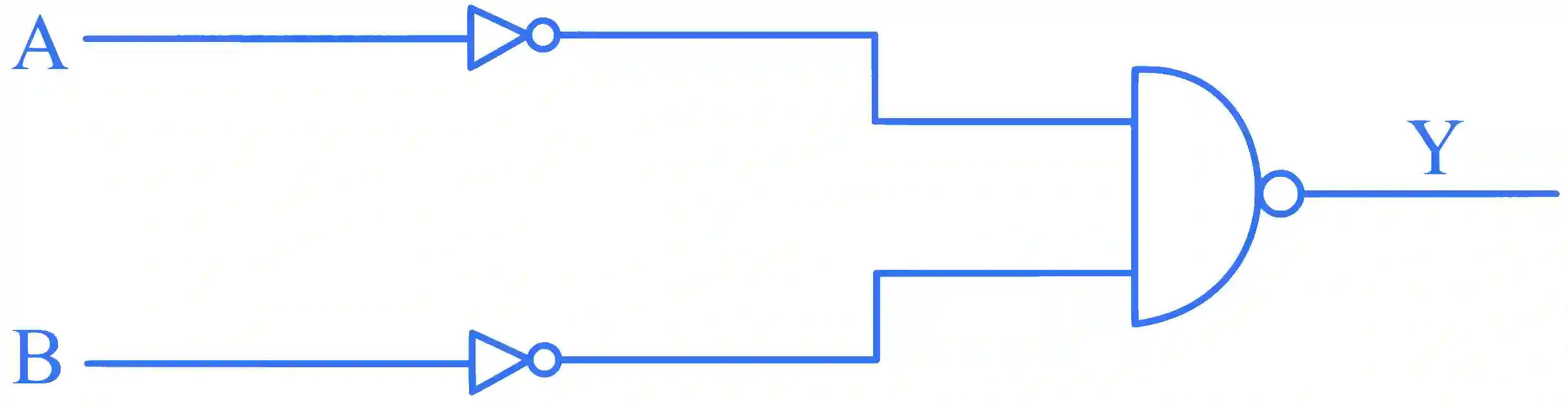

Identify the logic operation performed by the given circuit.

JEE Main 2024 (Online) 31st January Morning Shift Physics - Semiconductor Question 26 English

Multiple Choice Options

  • A AND
  • B NOR
  • C OR
  • D NAND

Step-by-Step Verified Solution

Y=A‾⋅B‾‾=A‾‾+B‾‾=A+B\mathrm{Y}=\overline{\overline{\mathrm{A}} \cdot \overline{\mathrm{B}}}=\overline{\overline{\mathrm{A}}}+\overline{\overline{\mathrm{B}}}=\mathrm{A}+\mathrm{B}

(De-Morgan's law)
