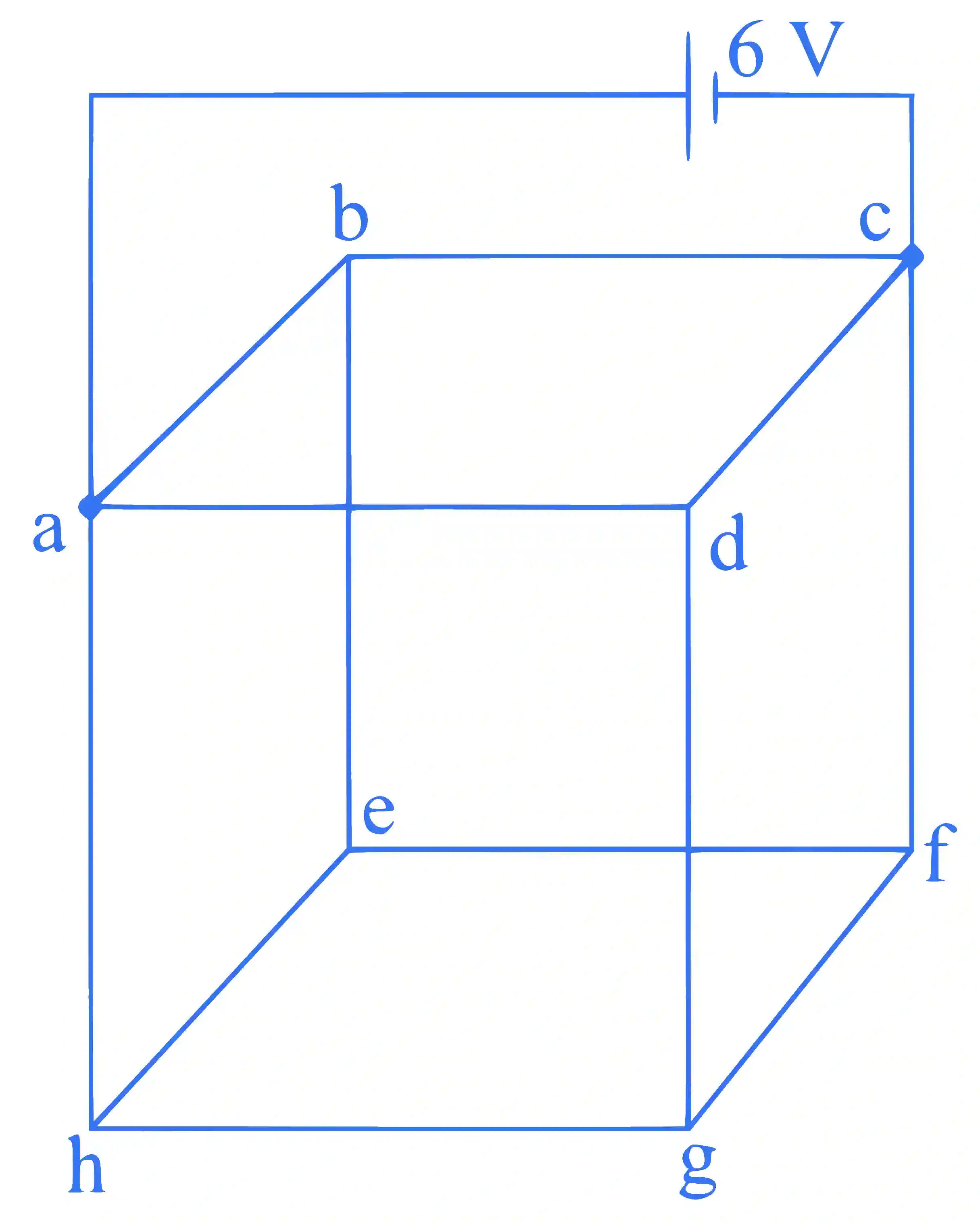

Twelve wires each having resistance 2Ω2 \Omega are joined to form a cube. A battery of 6 V6 \mathrm{~V} emf is joined across point aa and cc . The voltage difference between ee and ff is ________ V.

JEE Main 2024 (Online) 4th April Morning Shift Physics - Current Electricity Question 27 English

Step-by-Step Verified Solution

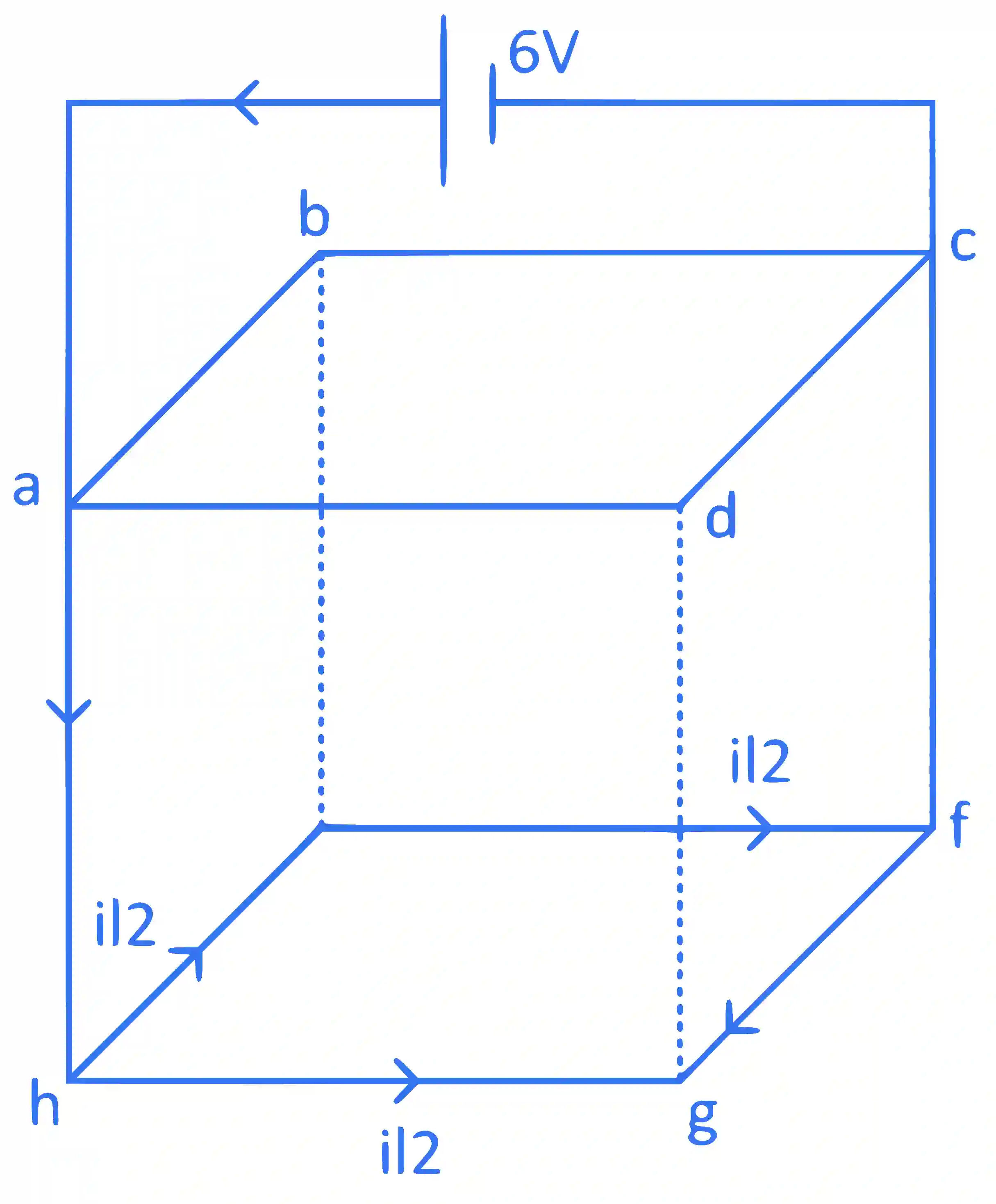

The circuit can be simplified as

JEE Main 2024 (Online) 4th April Morning Shift Physics - Current Electricity Question 27 English Explanation

amp;Rac=6×28=32Ωamp;amp;i=1Amp.amp;Vef=(i2)2amp;=1 V\begin{aligned}& R_{a c}=\frac{6 \times 2}{8}=\frac{3}{2} \Omega \\& \begin{aligned}& i=1 \mathrm{Amp} . \\& V_{e f}=\left(\frac{i}{2}\right)^2 \\& \quad=1 \mathrm{~V}\end{aligned}\end{aligned}
