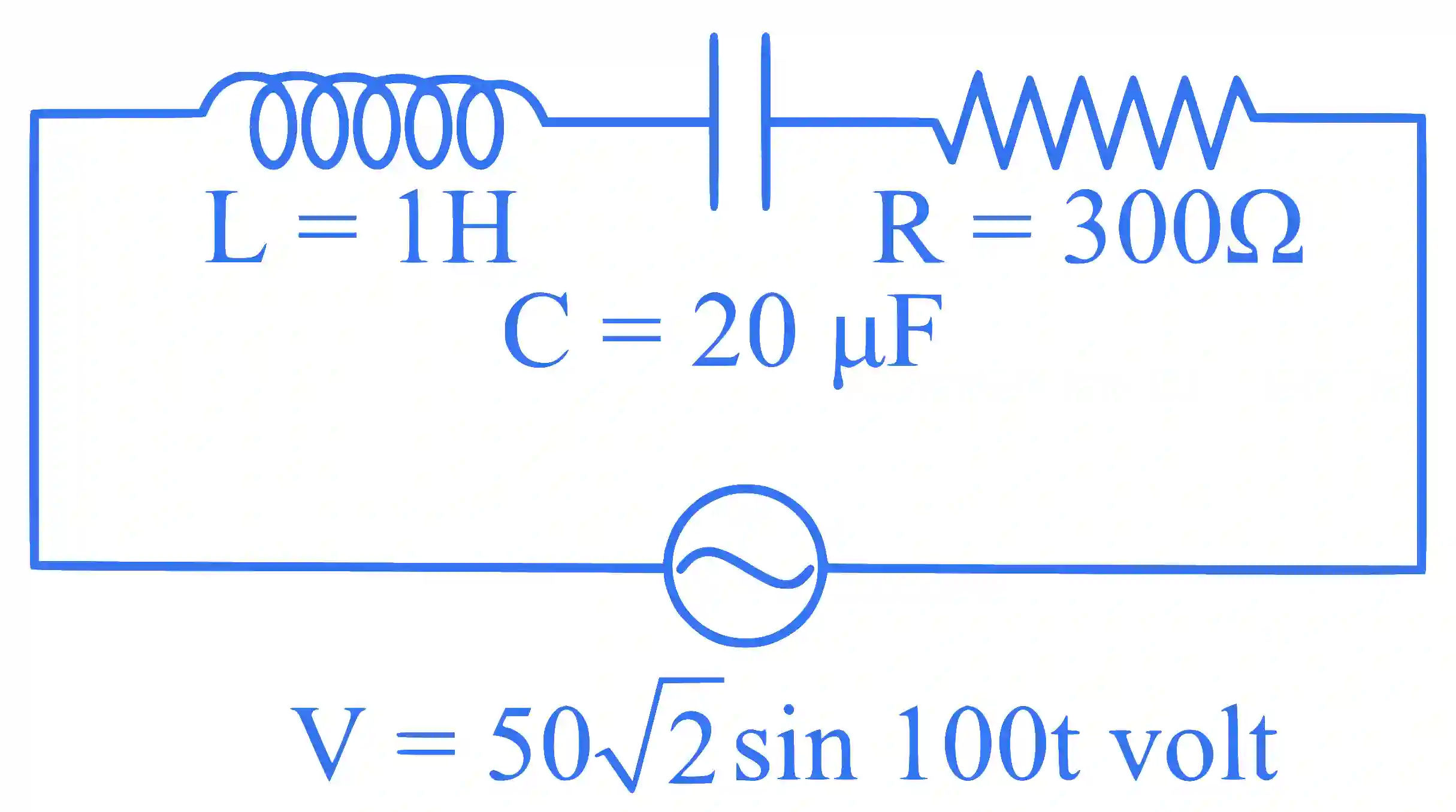

An ac source is connected in given series LCR circuit. The rms potential difference across the capacitor of 20μF20 \mu \mathrm{F} is __________ V.

JEE Main 2024 (Online) 5th April Morning Shift Physics - Alternating Current Question 8 English

Step-by-Step Verified Solution

amp;(Vrms)c=VrmsZXcamp;=50(500−100)2+3002×500amp;=50 V\begin{aligned}& \left(V_{r m s}\right)_c=\frac{V_{r m s}}{Z} X_c \\& =\frac{50}{\sqrt{(500-100)^2+300^2}} \times 500 \\& =50 \mathrm{~V}\end{aligned}
