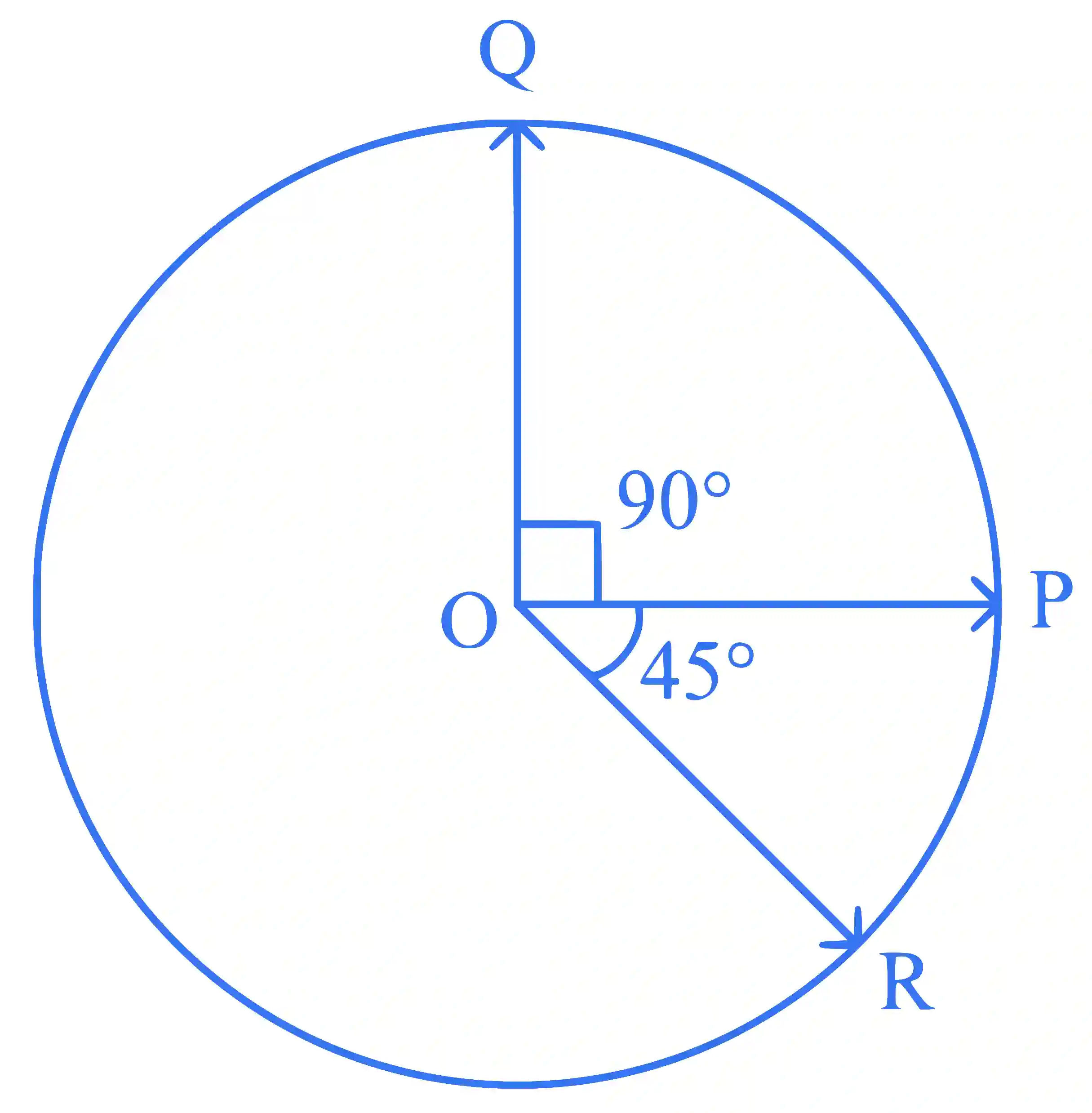

Three vectors $\vec{OP}, \vec{OQ}$ and $\vec{OR}$ each of magnitude $A$ are acting as shown in figure. The resultant of the three vectors is $A \sqrt{x}$ . The value of $x$ is _________.

JEE Main 2024 (Online) 8th April Morning Shift Physics - Vector Algebra Question 4 English

Related Learning Resources & Exam Preparation

JEE Main PYQ Question Bank

Browse year-wise authentic previous years' questions with solutions

Authentic CBT Mock Tests

Simulate official exam environment with live timer and percentile scoring

Accepted Answer

$\begin{aligned} \begin{aligned} (\vec{P} + \vec{Q}) = \sqrt{2} A \\ R = A \\ θ = 90^{\circ} \end{aligned} \\ Resultant = \sqrt{3} A \end{aligned}$
