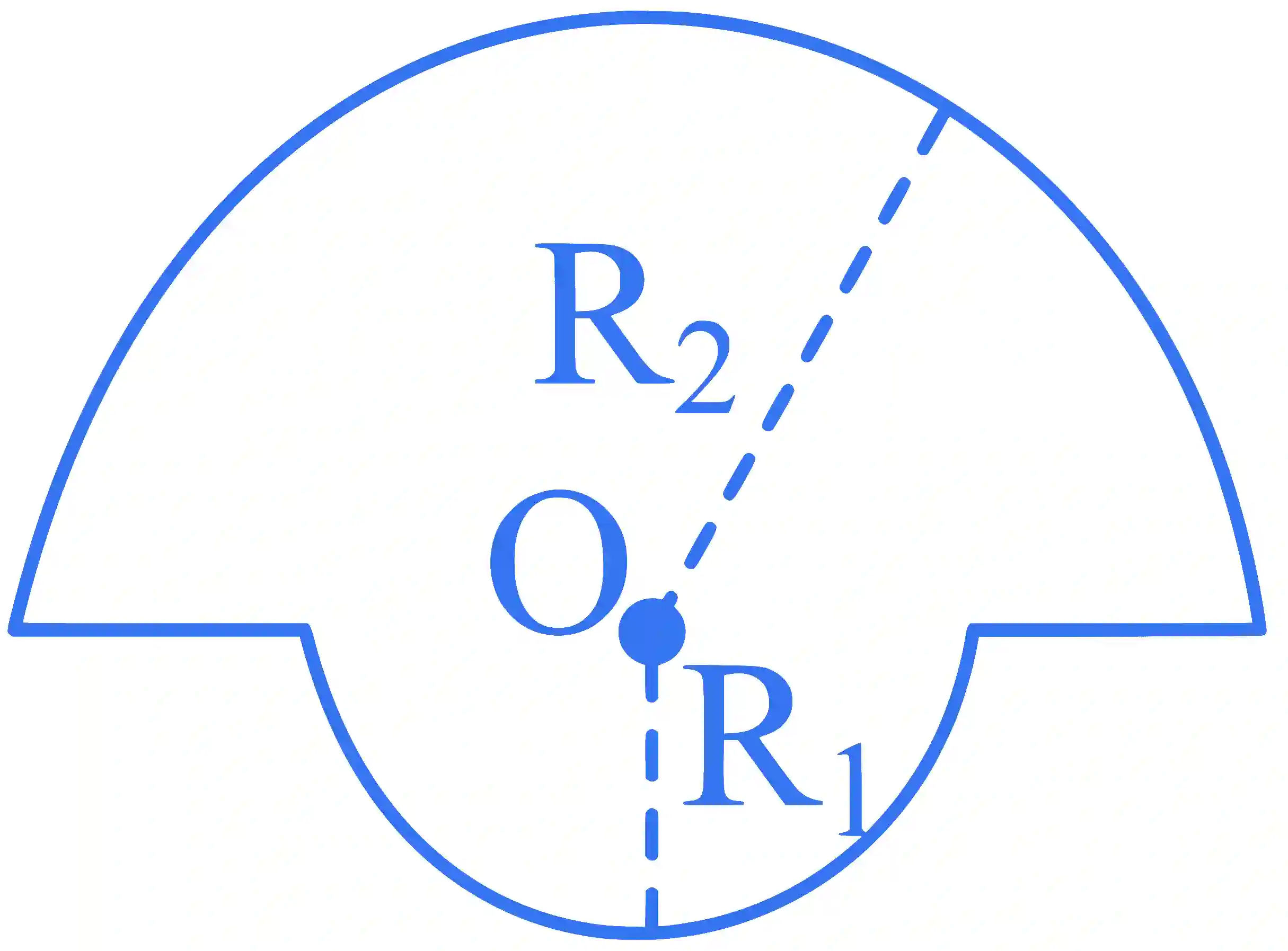

The magnetic field at the centre of a wire loop formed by two semicircular wires of radii $R_{1} = 2 π m$ and $R_{2} = 4 π m$ , carrying current $I = 4 A$ as per figure given below is $α \times 10^{- 7} T$ . The value of $α$ is ________. (Centre $O$ is common for all segments)

JEE Main 2024 (Online) 27th January Evening Shift Physics - Magnetic Effect of Current Question 39 English

Related Learning Resources & Exam Preparation

JEE Main PYQ Question Bank

Browse year-wise authentic previous years' questions with solutions

Authentic CBT Mock Tests

Simulate official exam environment with live timer and percentile scoring

Accepted Answer

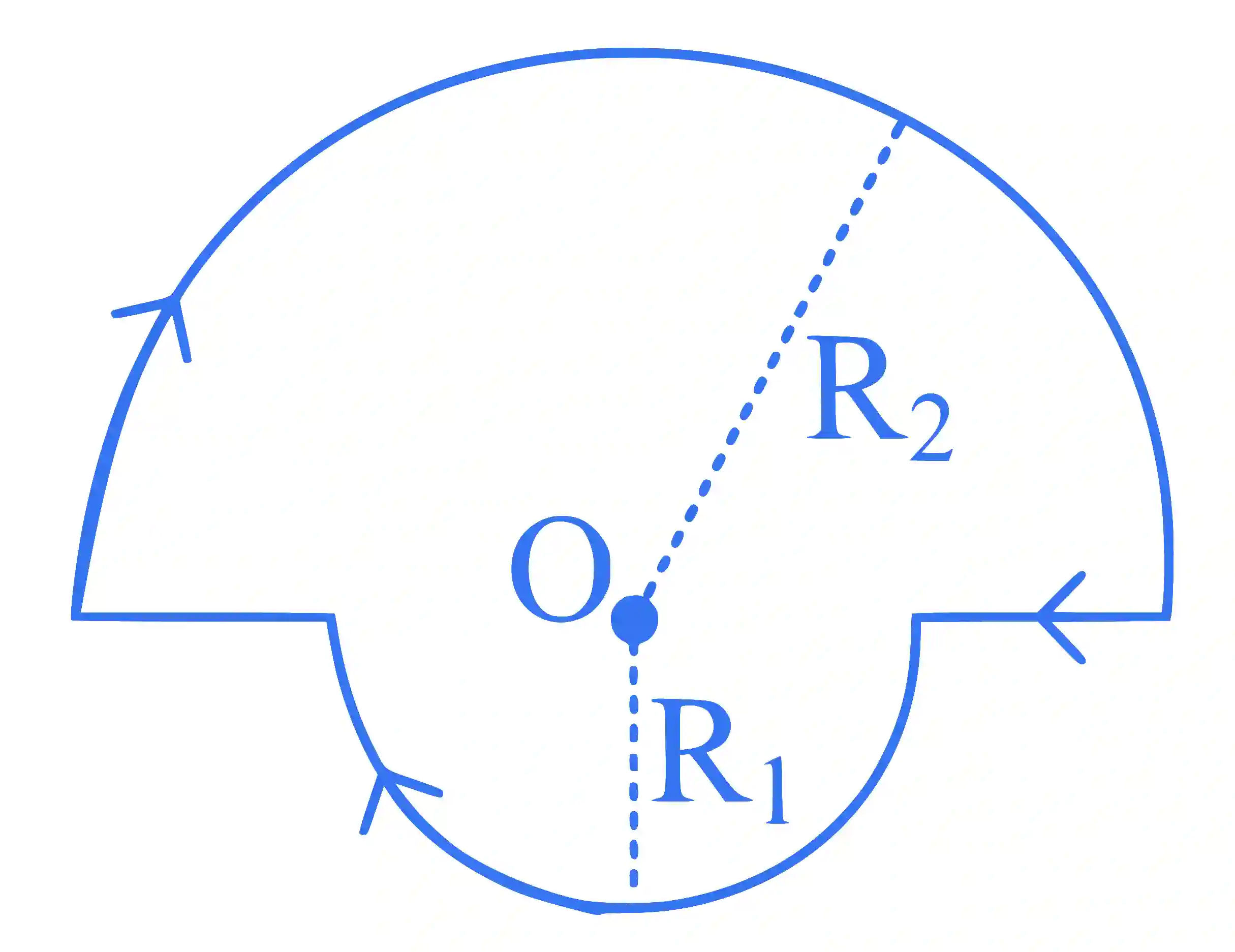

JEE Main 2024 (Online) 27th January Evening Shift Physics - Magnetic Effect of Current Question 39 English Explanation

$\begin{aligned} \frac{μ_{0} i}{2 R_{2}} (\frac{π}{2 π}) \otimes + \frac{μ_{0} i}{2 R_{1}} (\frac{π}{2 π}) \otimes \\ (\frac{μ_{0} i}{4 R_{2}} + \frac{μ_{0} i}{4 R_{1}}) \otimes \\ \frac{4 π \times 10^{- 7} \times 4}{4 \times 4 π} + \frac{4 π \times 10^{- 7} \times 4}{4 \times 2 π} \\ = 3 \times 10^{- 7} = α \times 10^{- 7} \\ α = 3 \end{aligned}$
