QJEEM24Ph9284: JEE Main 2024 Physics - Class 12 JEEM24Ph9284 Solution: In the given circuit, the terminal potential difference of the…

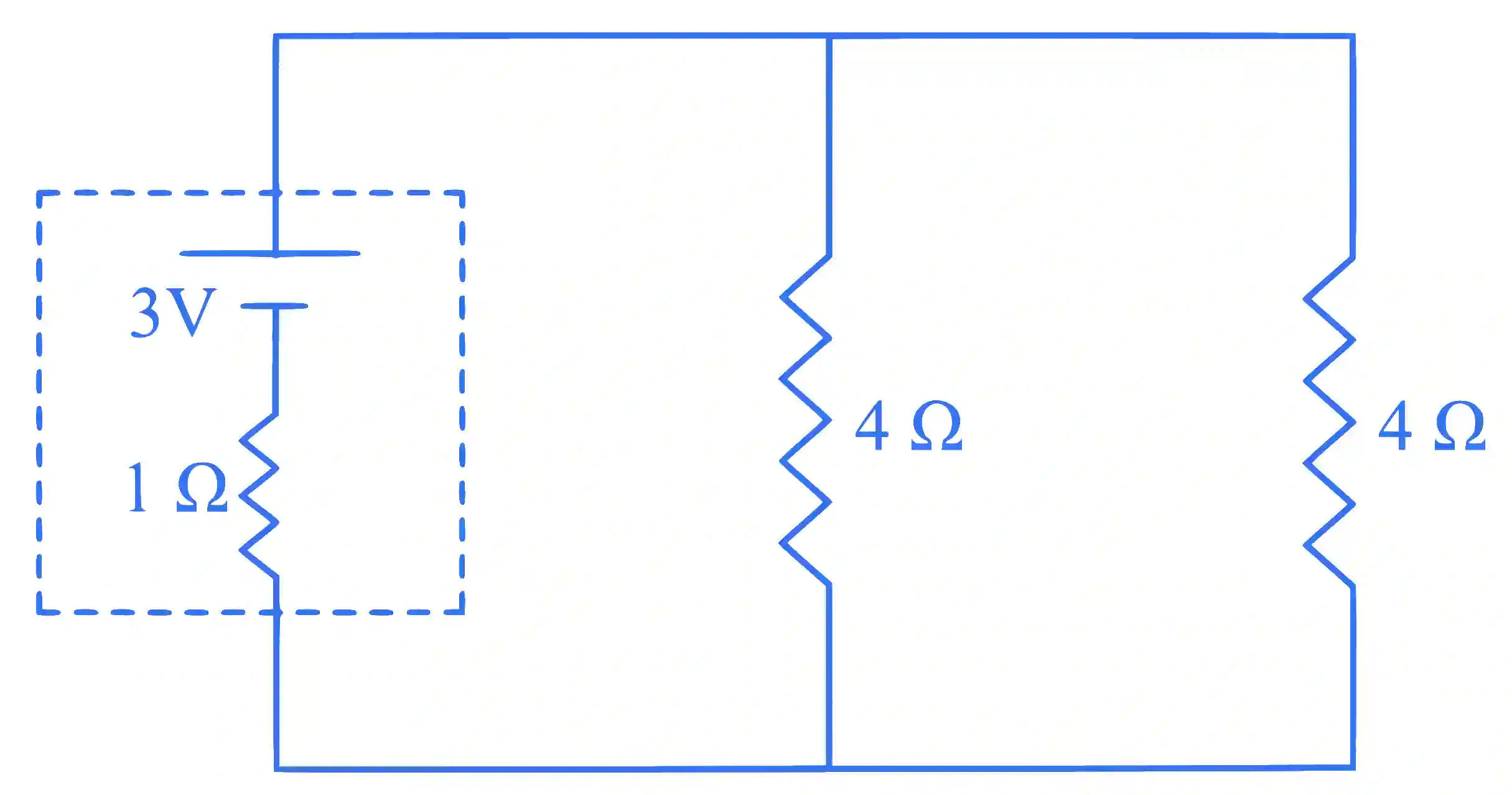

In the given circuit, the terminal potential difference of the cell is :

JEE Main 2024 (Online) 8th April Morning Shift Physics - Current Electricity Question 21 English

Multiple Choice Options

  • A 3 V
  • B 4 V
  • C 2 V
  • D 1.5 V

Step-by-Step Verified Solution

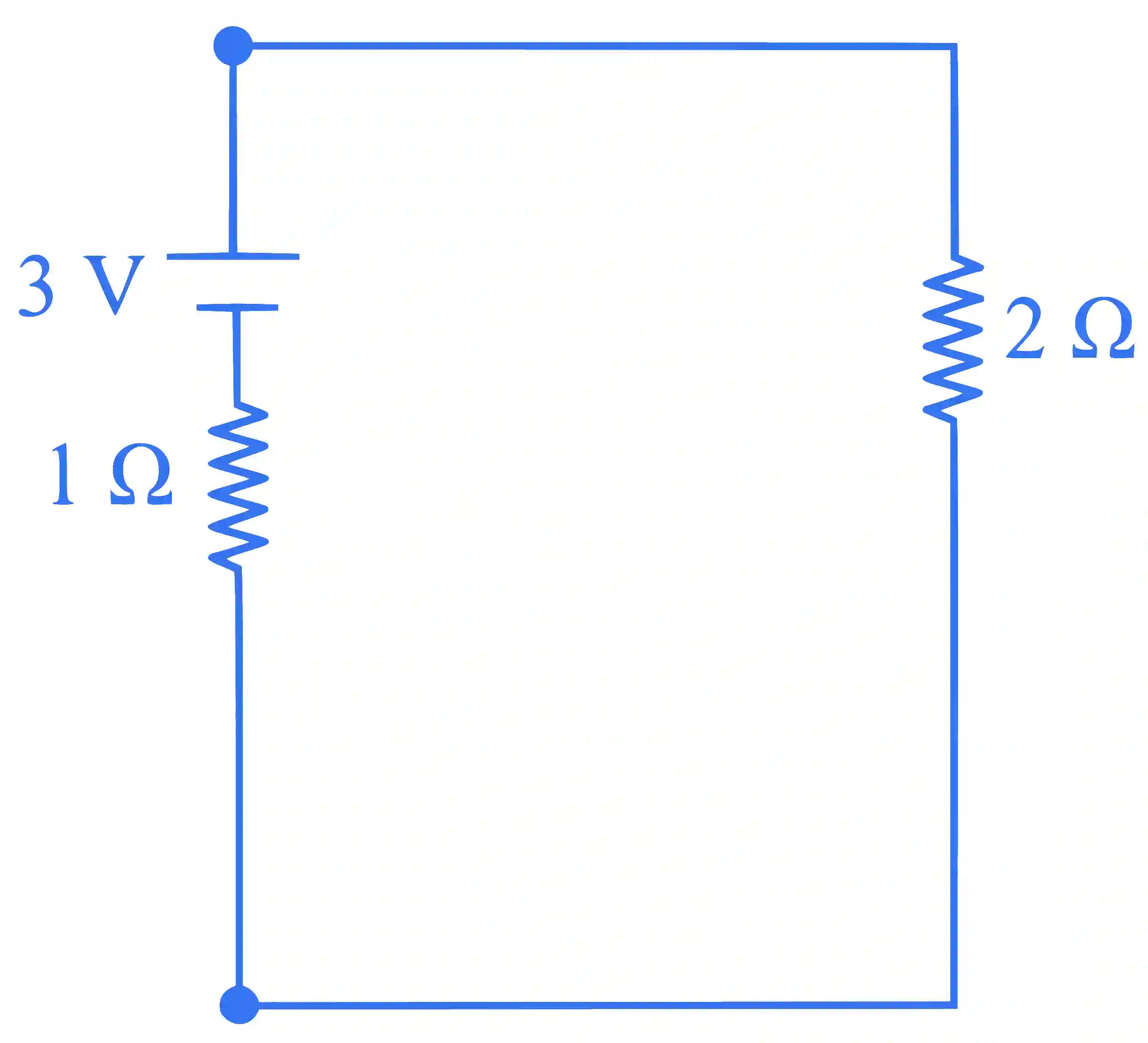

JEE Main 2024 (Online) 8th April Morning Shift Physics - Current Electricity Question 21 English Explanation

VT=(31+2)×2=2 VV_T=\left(\frac{3}{1+2}\right) \times 2=2 \mathrm{~V}
