QJEEM24Ph8c6f: JEE Main 2024 Physics - Class 12 JEEM24Ph8c6f Solution: Identify the logic gate given in the circuit :

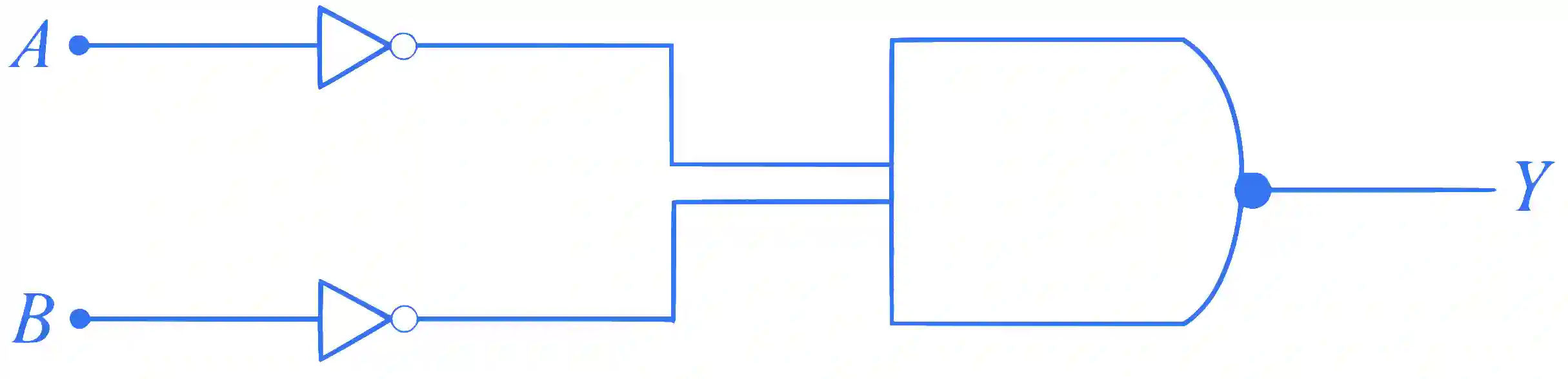

Identify the logic gate given in the circuit :

JEE Main 2024 (Online) 4th April Evening Shift Physics - Semiconductor Question 16 English

Multiple Choice Options

  • A OR gate
  • B NAND gate
  • C NOR gate
  • D AND gate

Step-by-Step Verified Solution

AA BB yy
0 0 0
1 0 1
0 1 1
1 1 1

So, Y=A+BY=A+B
