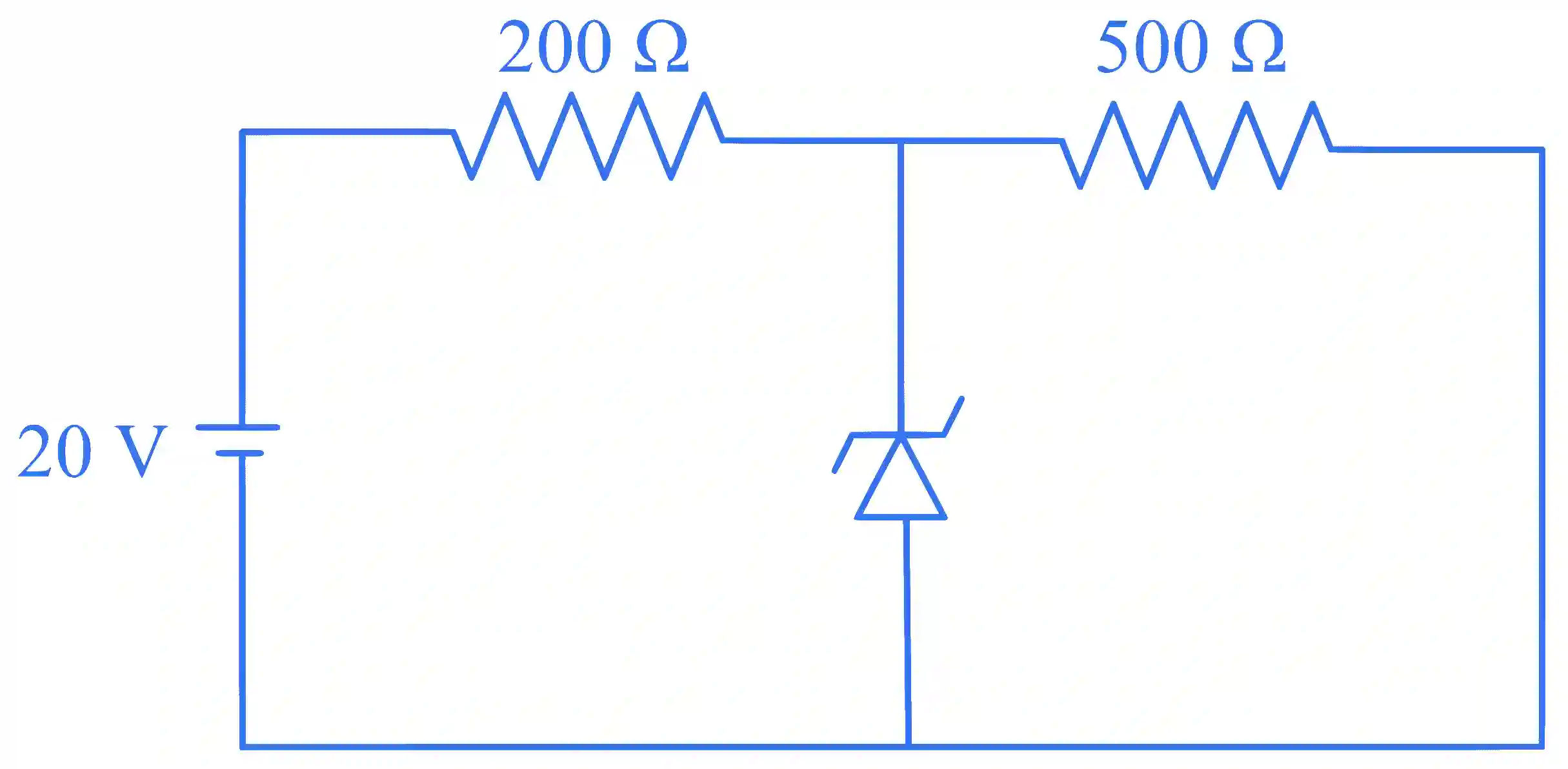

A Zener diode of breakdown voltage $10 V$ is used as a voltage regulator as shown in the figure. The current through the Zener diode is :

JEE Main 2024 (Online) 30th January Morning Shift Physics - Semiconductor Question 22 English

Multiple Choice Options

A 0
B 30 mA
C 20 mA
D 50 mA

Related Learning Resources & Exam Preparation

JEE Main PYQ Question Bank

Browse year-wise authentic previous years' questions with solutions

Authentic CBT Mock Tests

Simulate official exam environment with live timer and percentile scoring

Accepted Answer

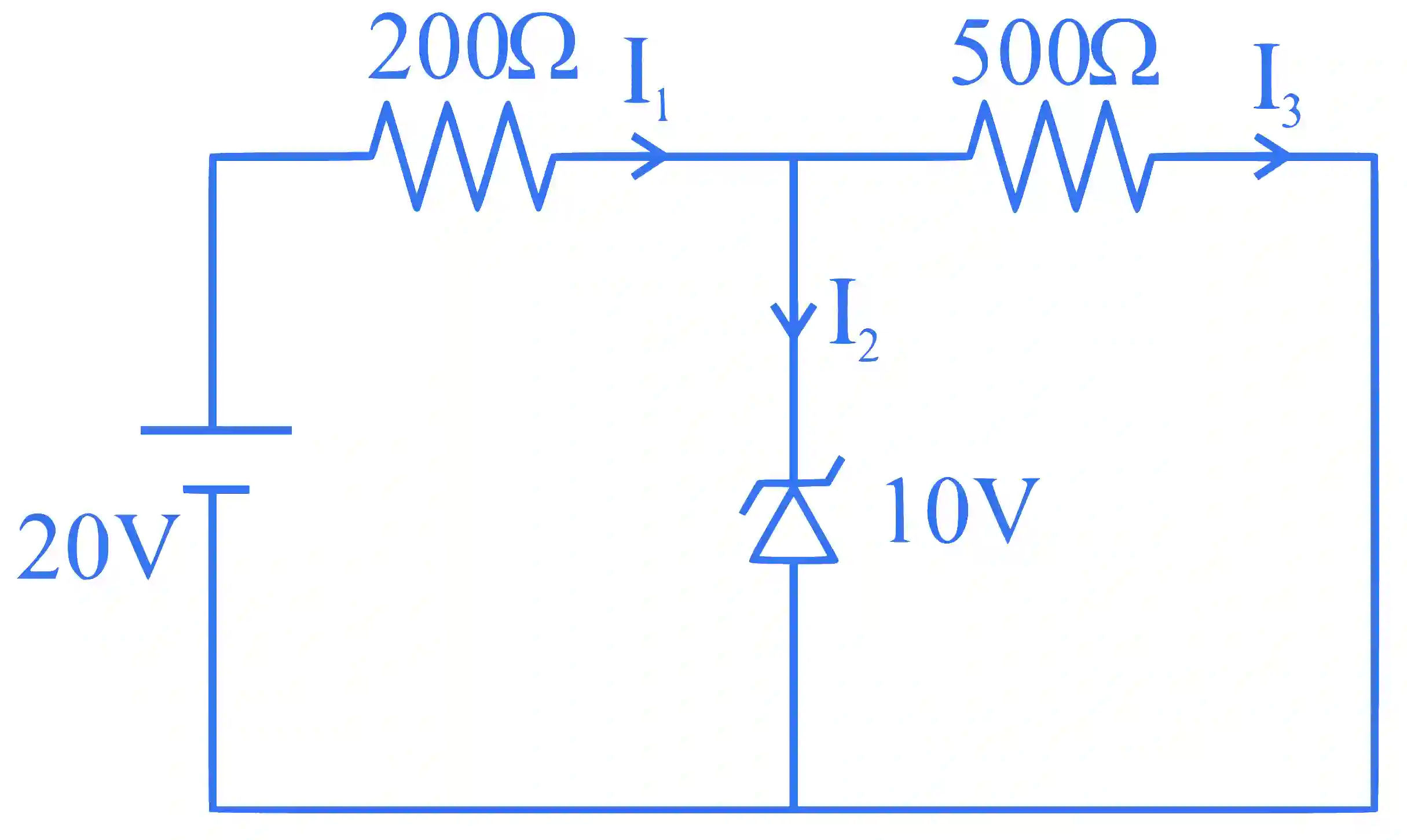

JEE Main 2024 (Online) 30th January Morning Shift Physics - Semiconductor Question 22 English Explanation

Zener is in breakdown region.

$\begin{aligned} I_{3} = \frac{10}{500} = \frac{1}{50} \\ I_{1} = \frac{10}{200} = \frac{1}{20} \\ I_{2} = I_{1} - I_{3} \\ I_{2} = (\frac{1}{20} - \frac{1}{50}) = (\frac{3}{100}) = 30 mA \end{aligned}$
