Question

Verified Solution • 2025–26 Session moderate

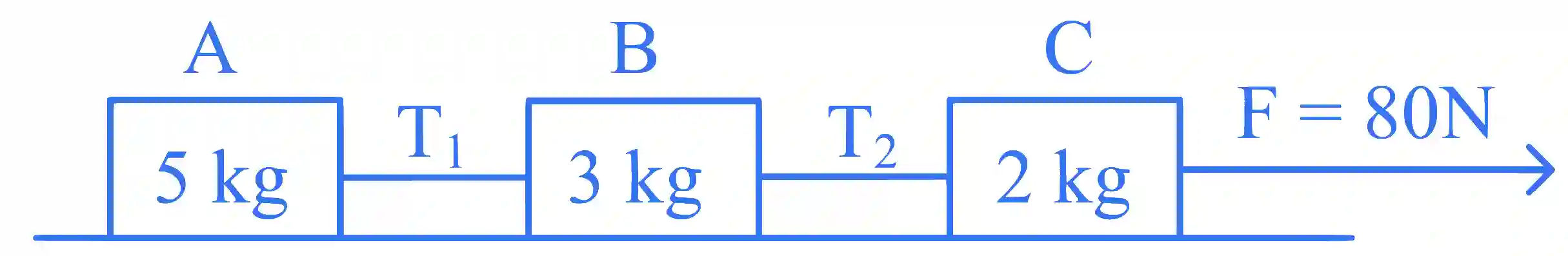

Three blocks $A, B$ and $C$ are pulled on a horizontal smooth surface by a force of $80 \mathrm{~N}$ as shown in figure

JEE Main 2024 (Online) 30th January Evening Shift Physics - Laws of Motion Question 18 English

The tensions T $_1$ and T $_2$ in the string are respectively :

Accepted Answer

$a_A=a_B=a_c=\frac{F}{5+3+2}=\frac{80}{10}=8 \mathrm{~m} / \mathrm{s}^2$

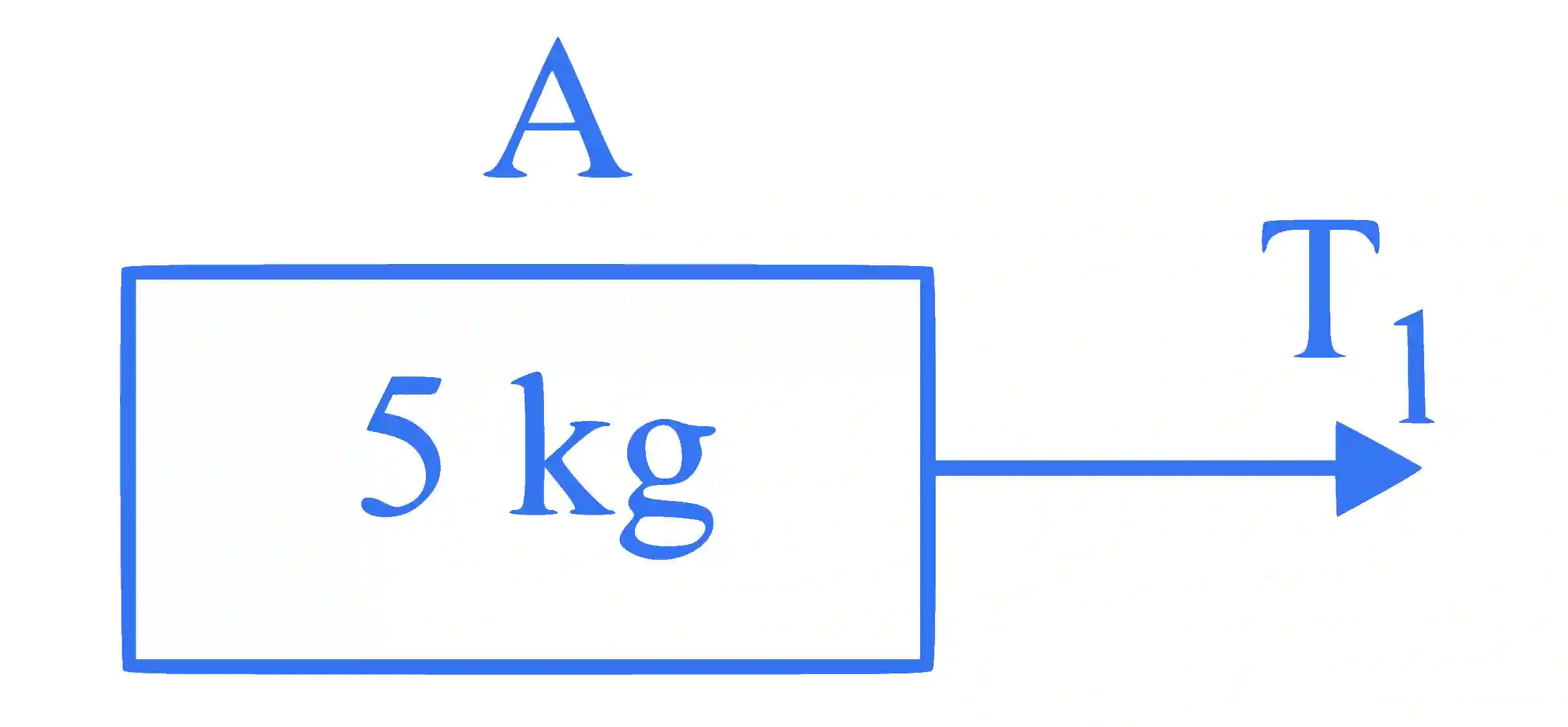

JEE Main 2024 (Online) 30th January Evening Shift Physics - Laws of Motion Question 18 English Explanation 1

$\mathrm{T_1=5\times8=40}$

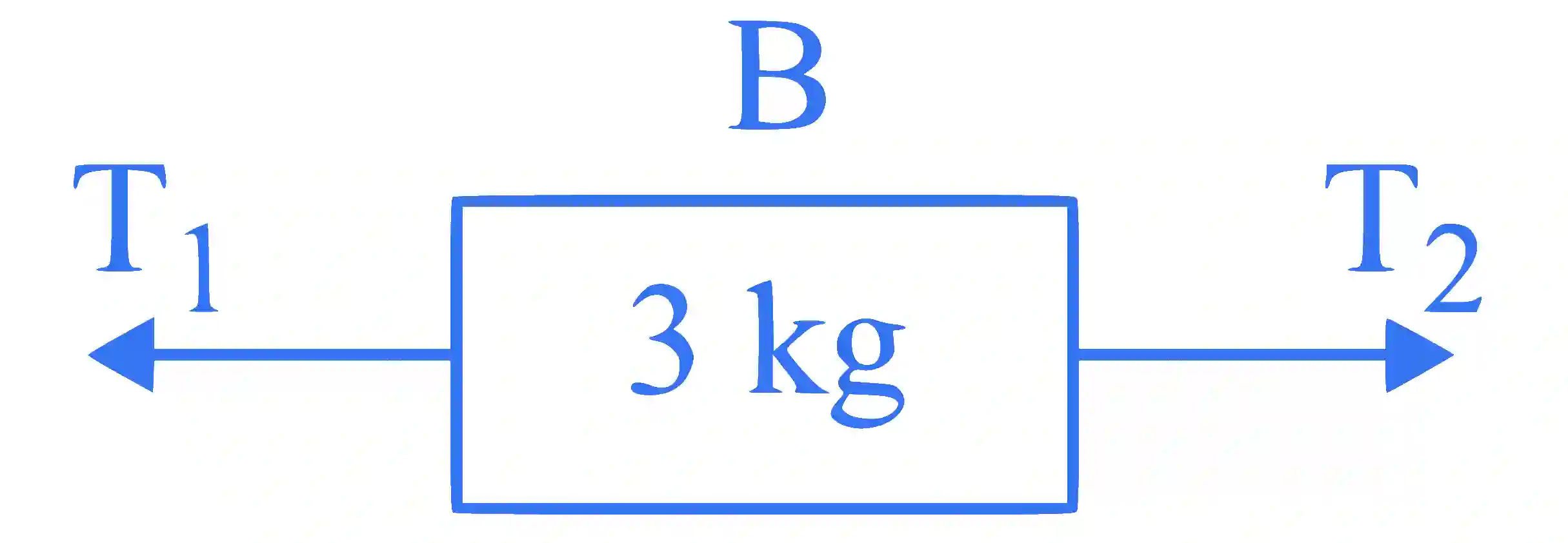

JEE Main 2024 (Online) 30th January Evening Shift Physics - Laws of Motion Question 18 English Explanation 2

$\mathrm{T_2-T_1=3\times8\Rightarrow T_2=64}$

Step-by-Step Verified Solution
