Question

Verified Solution • 2025–26 Session moderate

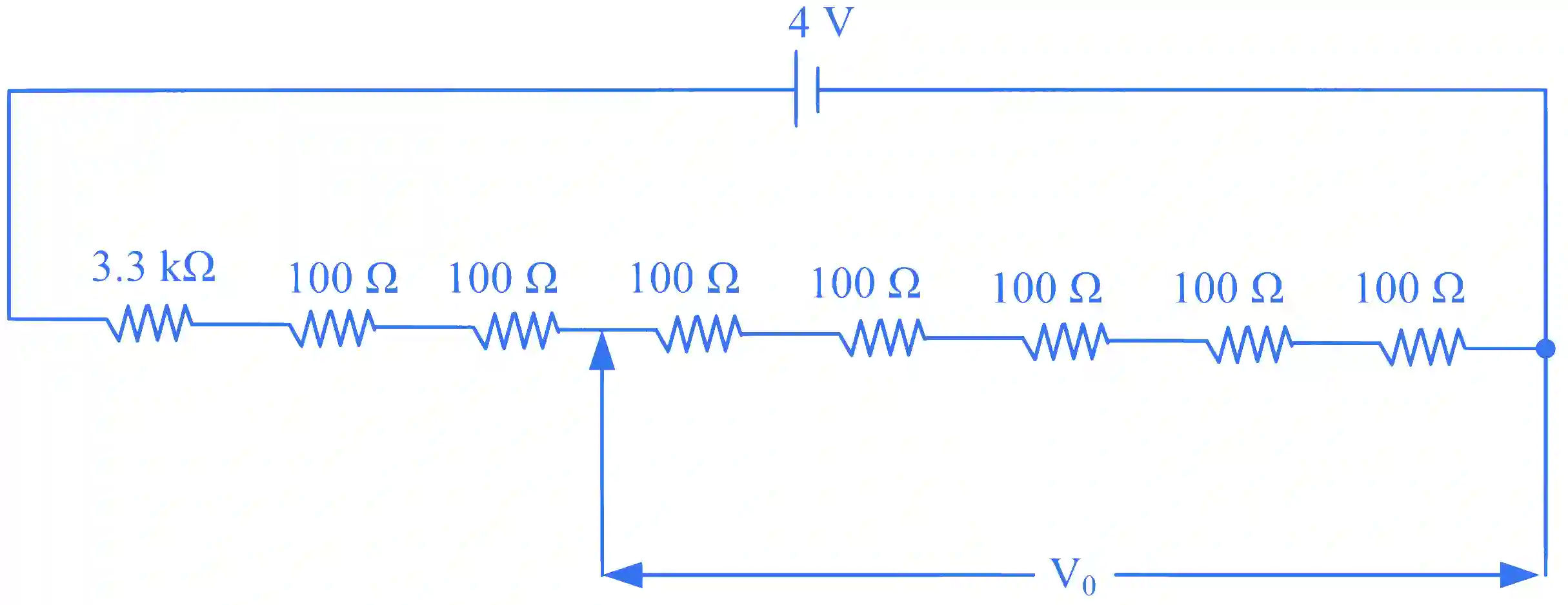

A potential divider circuit is shown in figure. The output voltage V $_{0}$ is :

JEE Main 2024 (Online) 30th January Morning Shift Physics - Current Electricity Question 37 English

Accepted Answer

$\begin{aligned} R_{e q} = 4000 Ω \\ i = \frac{4}{4000} = \frac{1}{1000} A \\ V_{0} = i . R = \frac{1}{1000} \times 500 = 0.5 V \end{aligned}$
