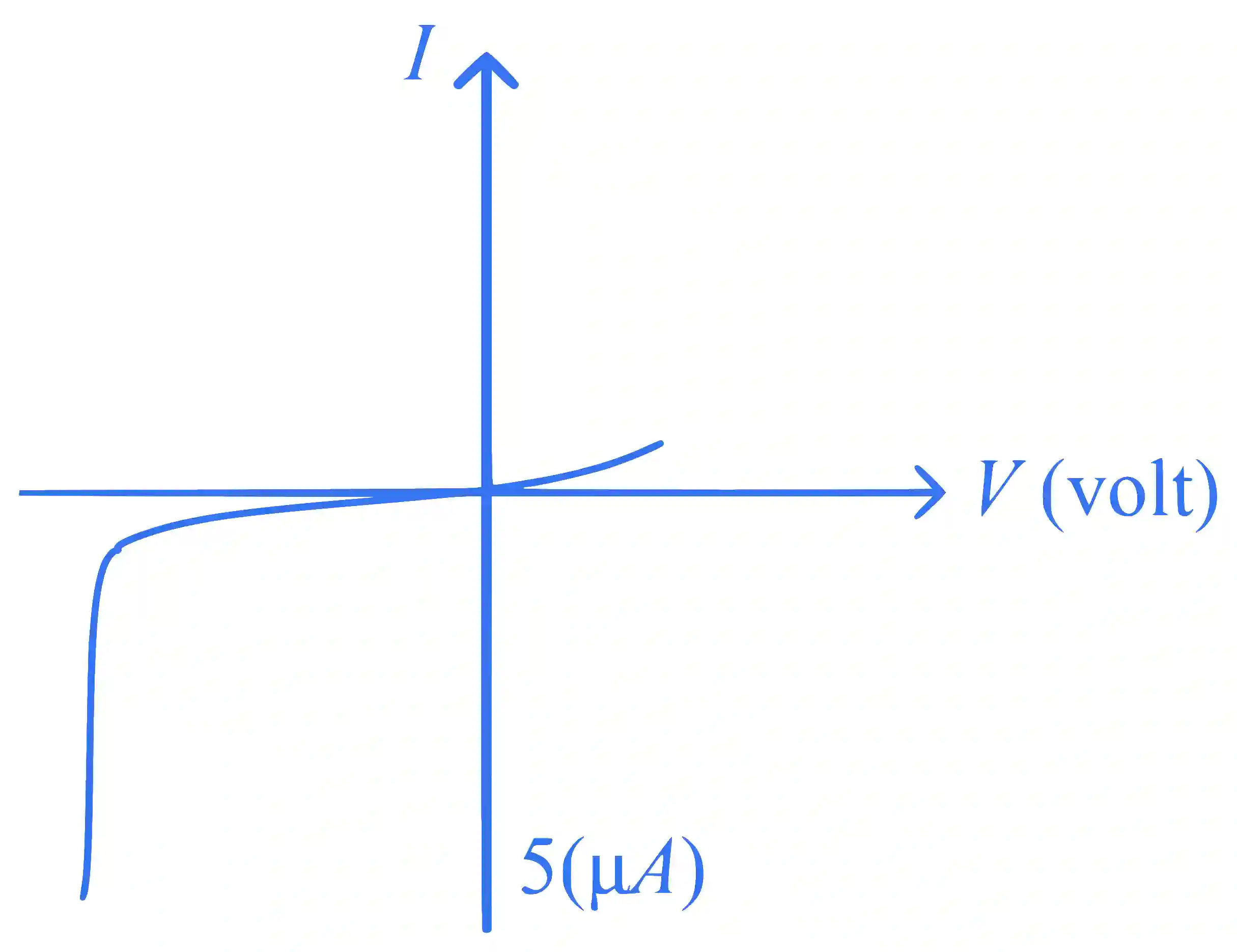

The - characteristics of an electronic device shown in the figure. The device is :
Multiple Choice Options
- A a solar cell
- B a transistor which can be used as an amplifier
- C a diode which can be used as a rectifier
- D a zener diode which can be used as a voltage regulator
Step-by-Step Verified Solution
As this is a reverse bias characteristic. It should be for Zener diode working as voltage regulator.
