The deflection in moving coil galvanometer falls from 25 divisions to 5 division when a shunt of 24Ω is applied. The resistance of galvanometer coil will be :

Multiple Choice Options

  • A 48Ω
  • B 100Ω
  • C 96Ω
  • D 12Ω

Step-by-Step Verified Solution

Let x = current/division

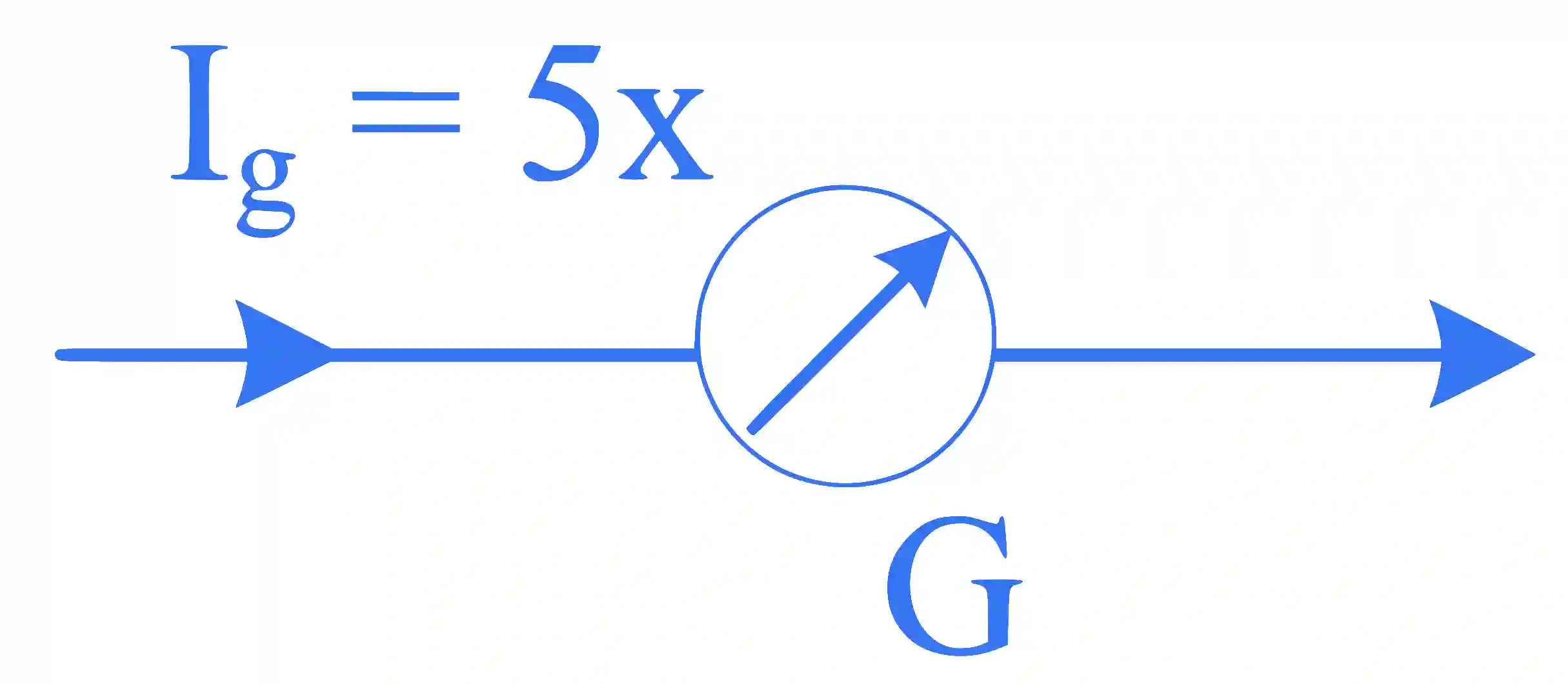

JEE Main 2024 (Online) 29th January Morning Shift Physics - Current Electricity Question 44 English Explanation 1

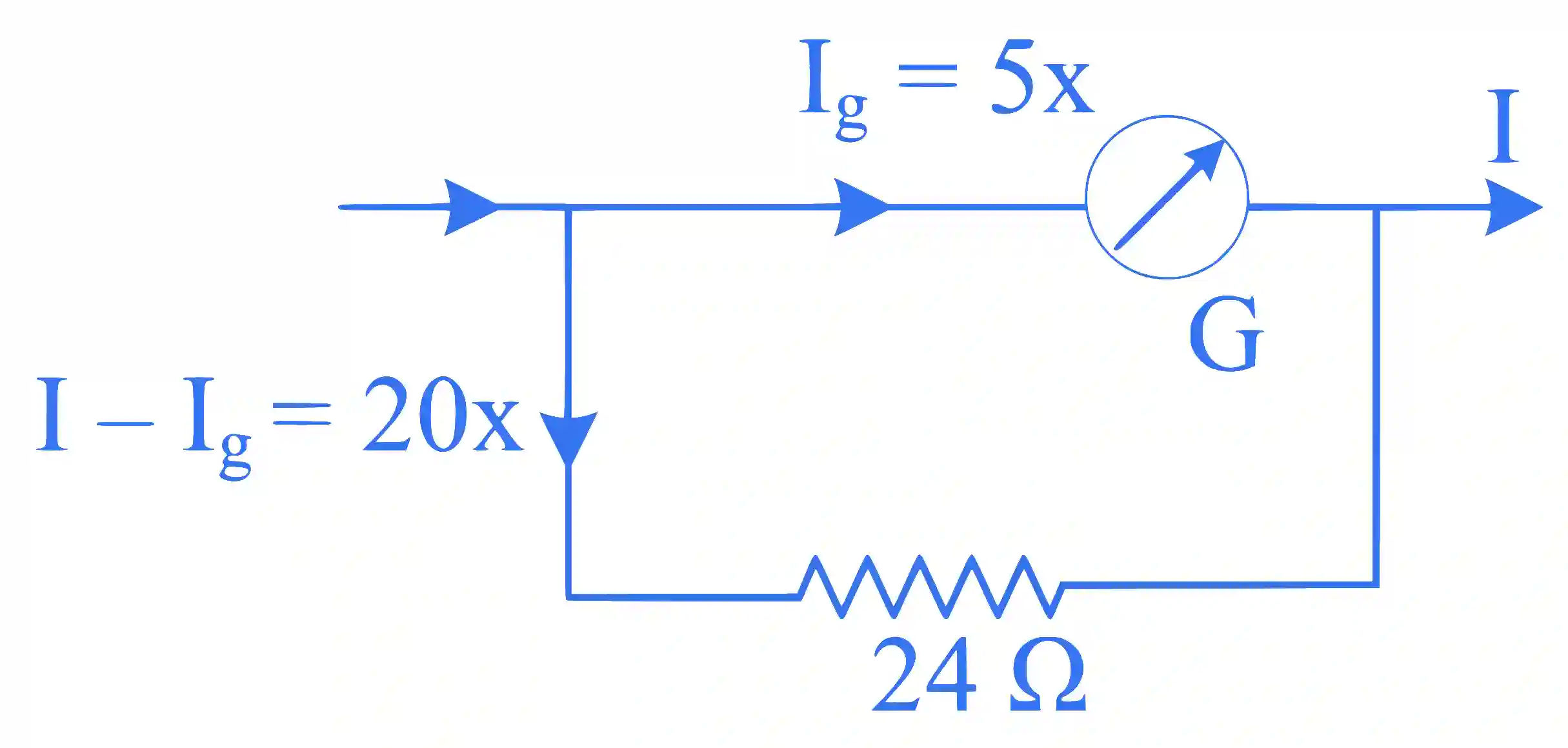

After applying shunt

JEE Main 2024 (Online) 29th January Morning Shift Physics - Current Electricity Question 44 English Explanation 2

Now 5x×G=20x×24

G=4×24G=96Ω
