JEE Main 2024 (Online) 9th April Evening Shift Physics - Semiconductor Question 20 English

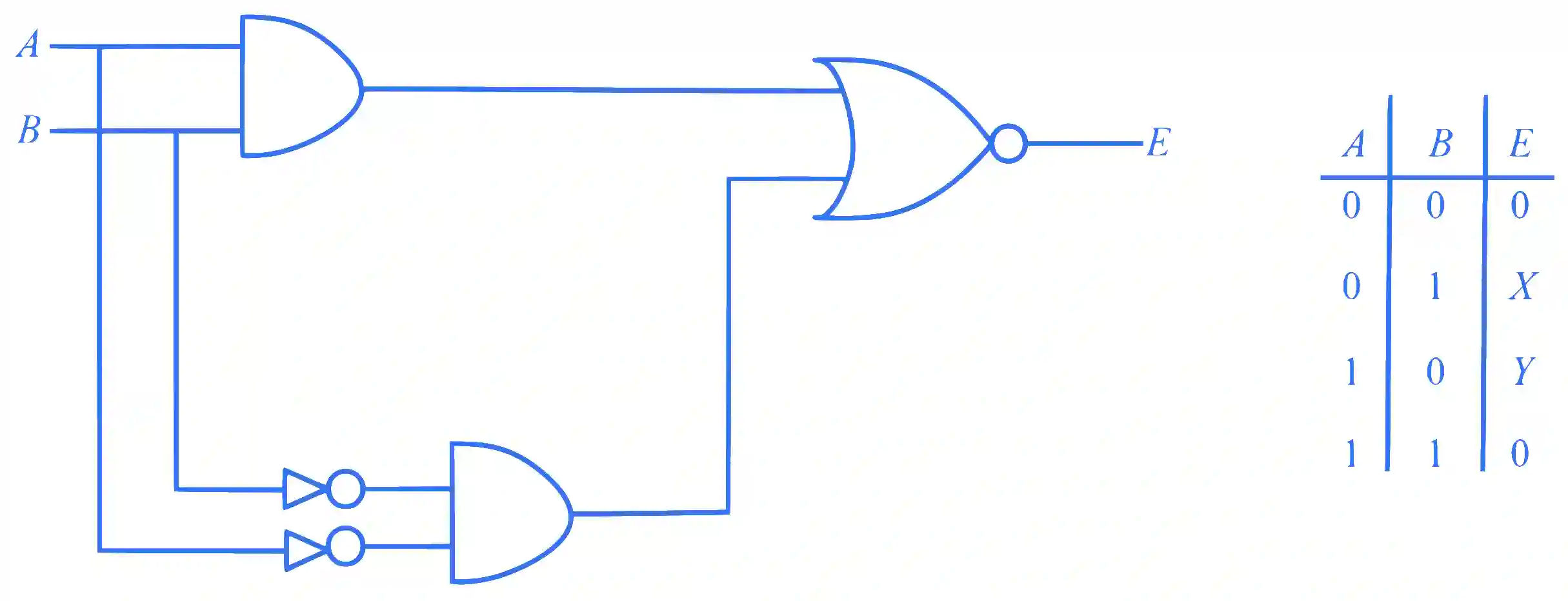

In the truth table of the above circuit the value of X and Y are :

Accepted Answer

$\begin{aligned} Y = \overset{―}{A B + \overset{―}{A B}} \\ for A = 0, B = 1, Y = 1 \\ for A = 1, B = 0, Y = 1 \end{aligned}$

Step-by-Step Verified Solution
