QJEEM24Ph7599: JEE Main 2024 Physics - Class 12 JEEM24Ph7599 Solution: Primary coil of a transformer is connected to 220   V ac.…

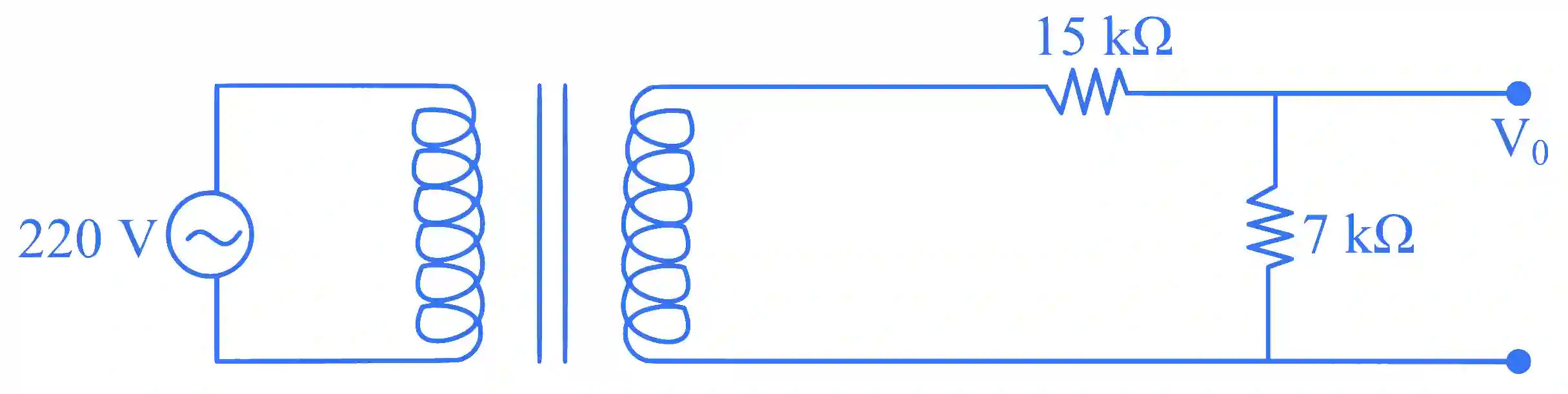

Primary coil of a transformer is connected to 220 V ac. Primary and secondary turns of the transforms are 100 and 10 respectively. Secondary coil of transformer is connected to two series resistances shown in figure. The output voltage (V0) is :

JEE Main 2024 (Online) 30th January Morning Shift Physics - Alternating Current Question 19 English

Multiple Choice Options

  • A 7 V
  • B 44 V
  • C 22 V
  • D 15 V

Step-by-Step Verified Solution

ε1ε2=N1N2=10010⇒ε2=22 VI=2222×103=1 mA,V0=7 V
