The resistance per centimeter of a meter bridge wire is $r$ , with $X Ω$ resistance in left gap. Balancing length from left end is at $40 cm$ with $25 Ω$ resistance in right gap. Now the wire is replaced by another wire of $2 r$ resistance per centimeter. The new balancing length for same settings will be at

Multiple Choice Options

A 10 cm
B 80 cm
C 40 cm
D 20 cm

Related Learning Resources & Exam Preparation

JEE Main PYQ Question Bank

Browse year-wise authentic previous years' questions with solutions

Authentic CBT Mock Tests

Simulate official exam environment with live timer and percentile scoring

Accepted Answer

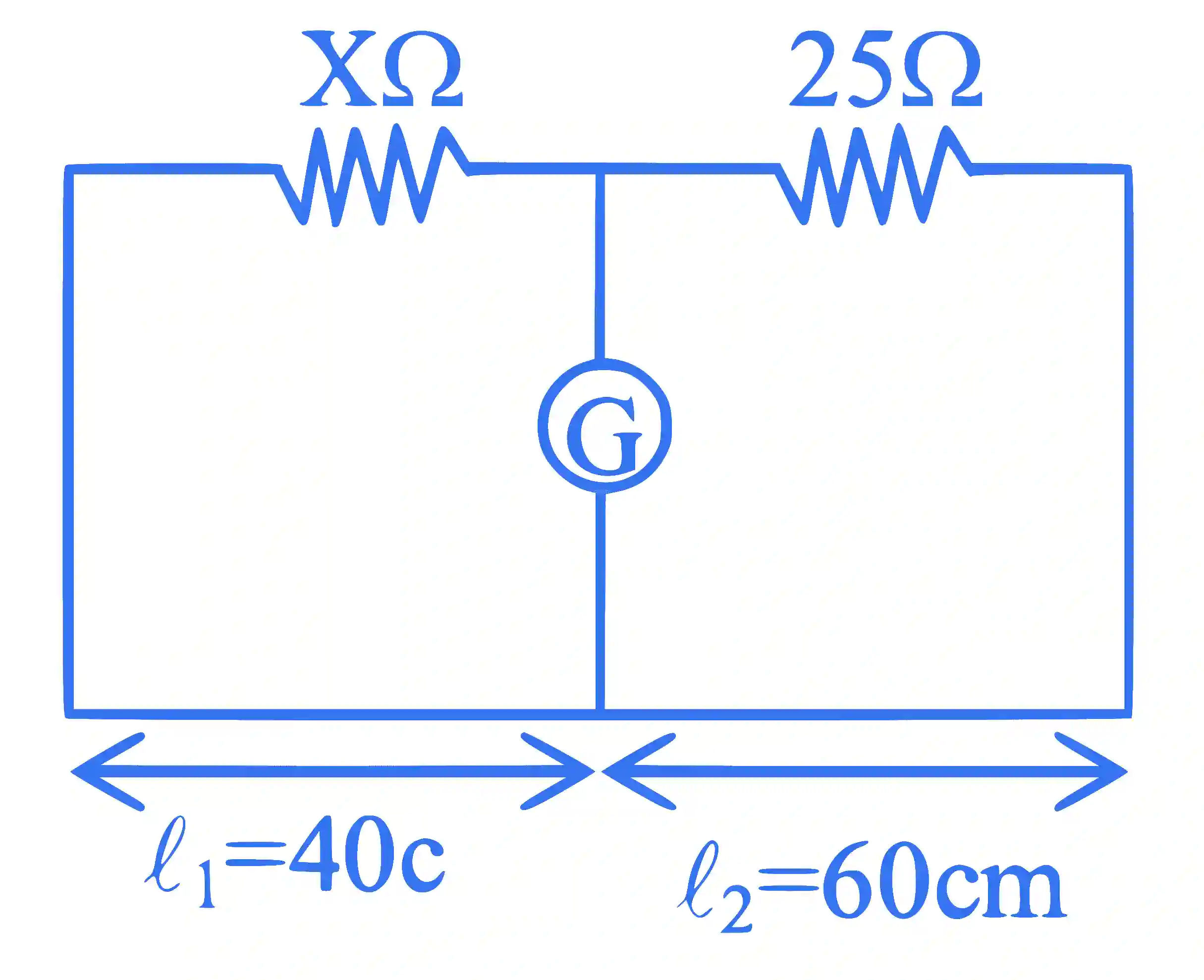

JEE Main 2024 (Online) 31st January Evening Shift Physics - Current Electricity Question 49 English Explanation

$\begin{aligned} \frac{25}{r ℓ_{1}} = \frac{X}{r ℓ_{2}} .... (i) \\ \frac{25}{2 r ℓ_{1}^{'}} = \frac{X}{2 r ℓ^{'}_{2}} .... (ii) \end{aligned}$

From (i) and (ii)

$ℓ_{2}^{'} = ℓ_{2} = 40 cm$
