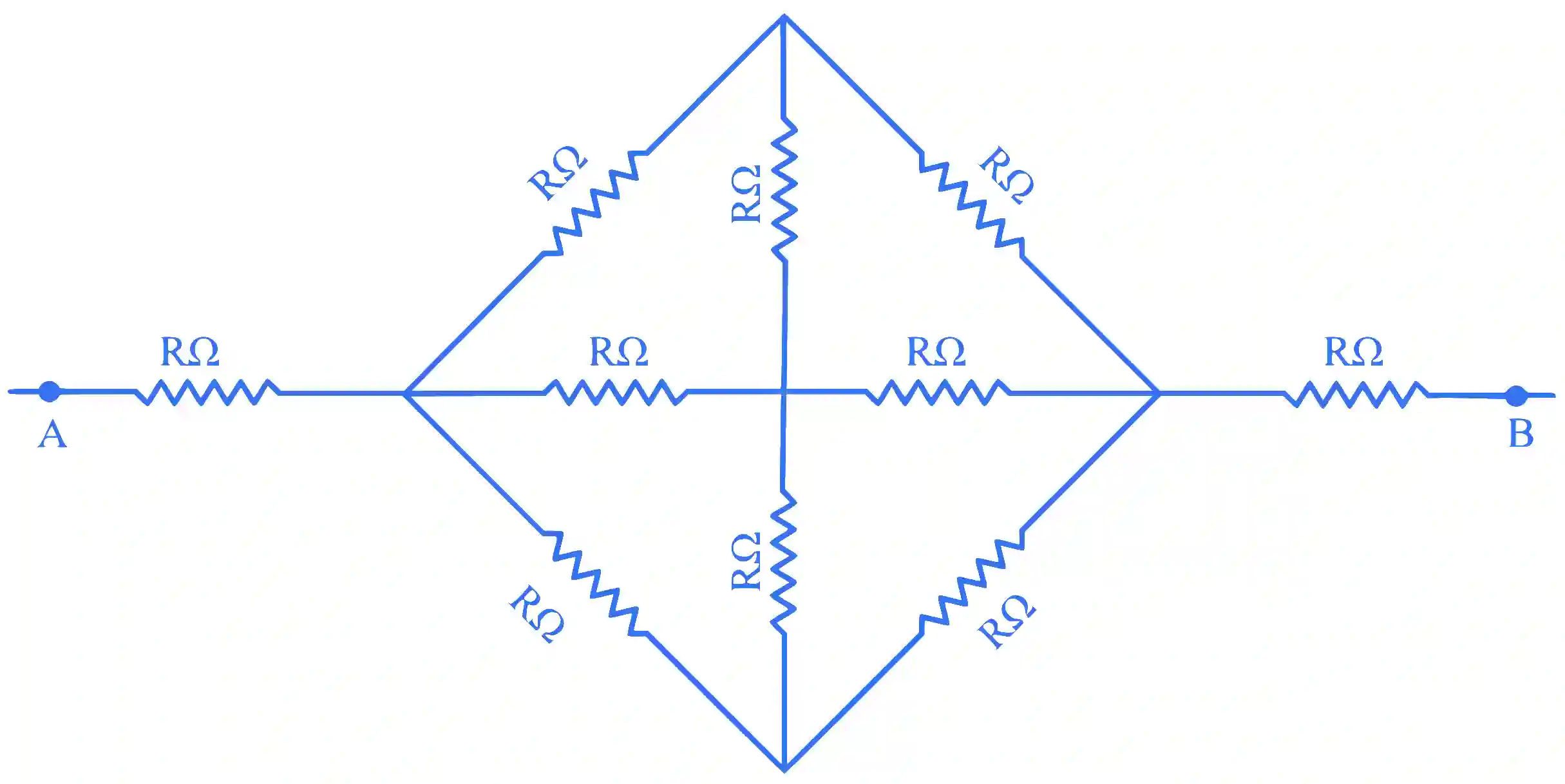

The effective resistance between A and B, if resistance of each resistor is R, will be :

JEE Main 2024 (Online) 9th April Evening Shift Physics - Current Electricity Question 32 English

Multiple Choice Options

  • A 8R3
  • B 4R3
  • C 23R
  • D 5R3

Step-by-Step Verified Solution

From symmetry we can remove two middle resistance.

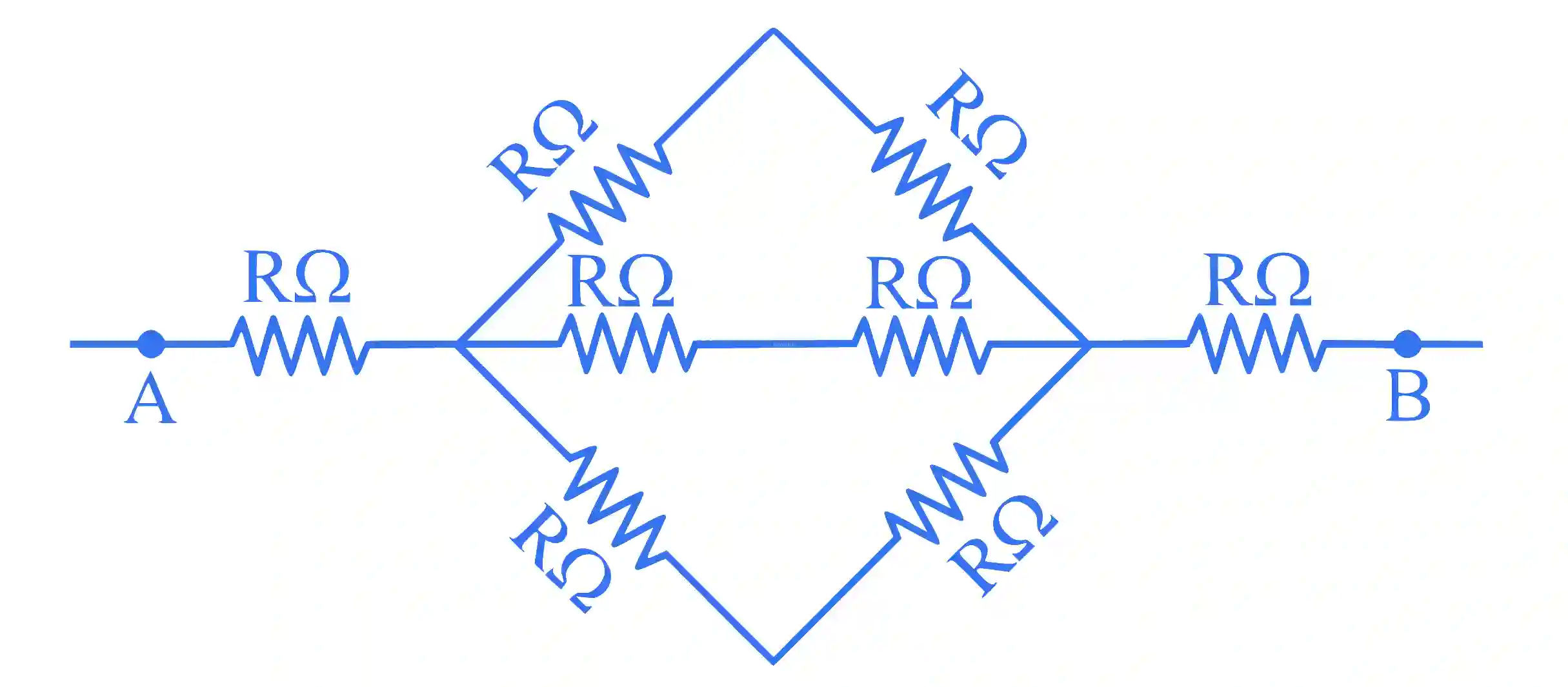

New circuit is

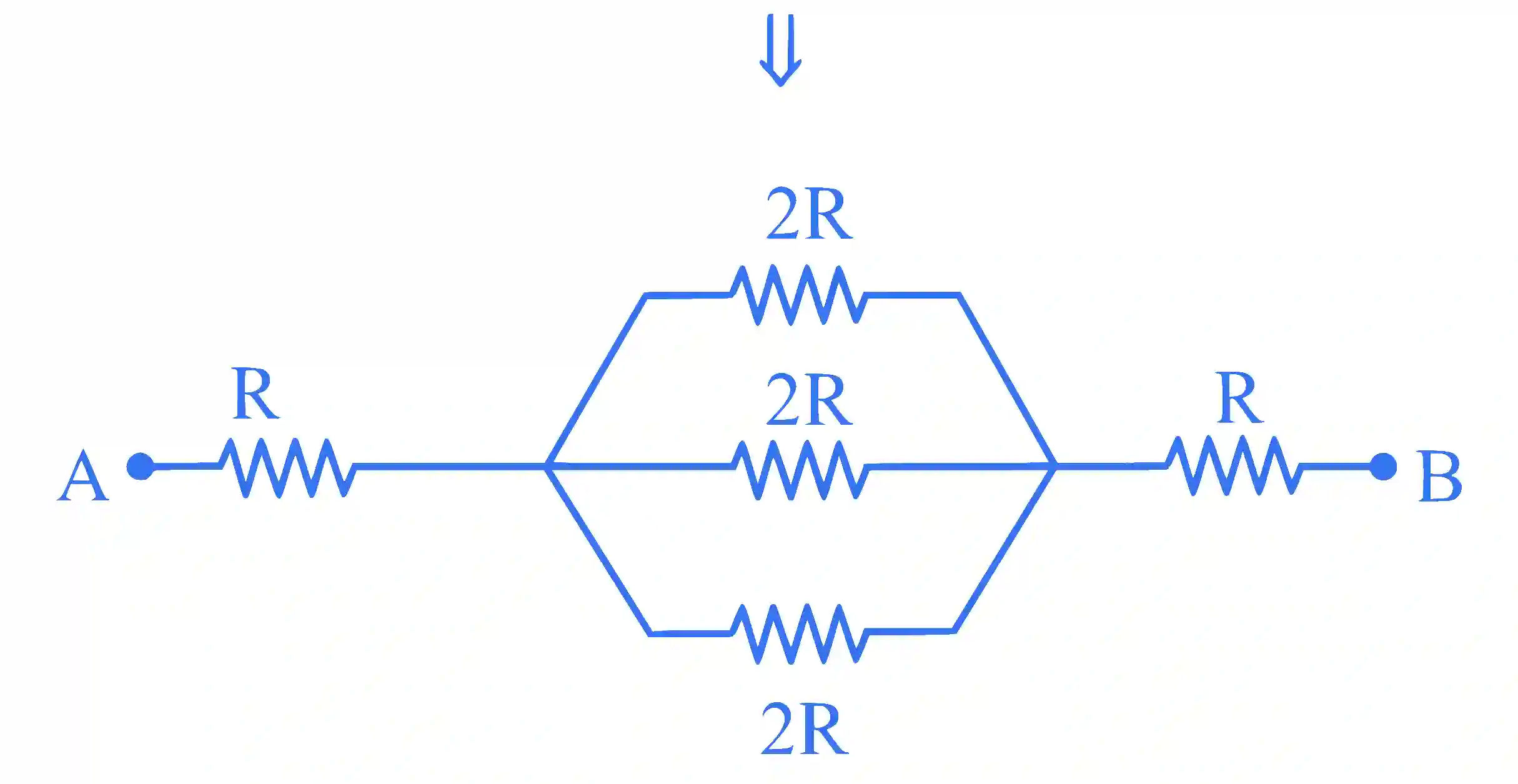

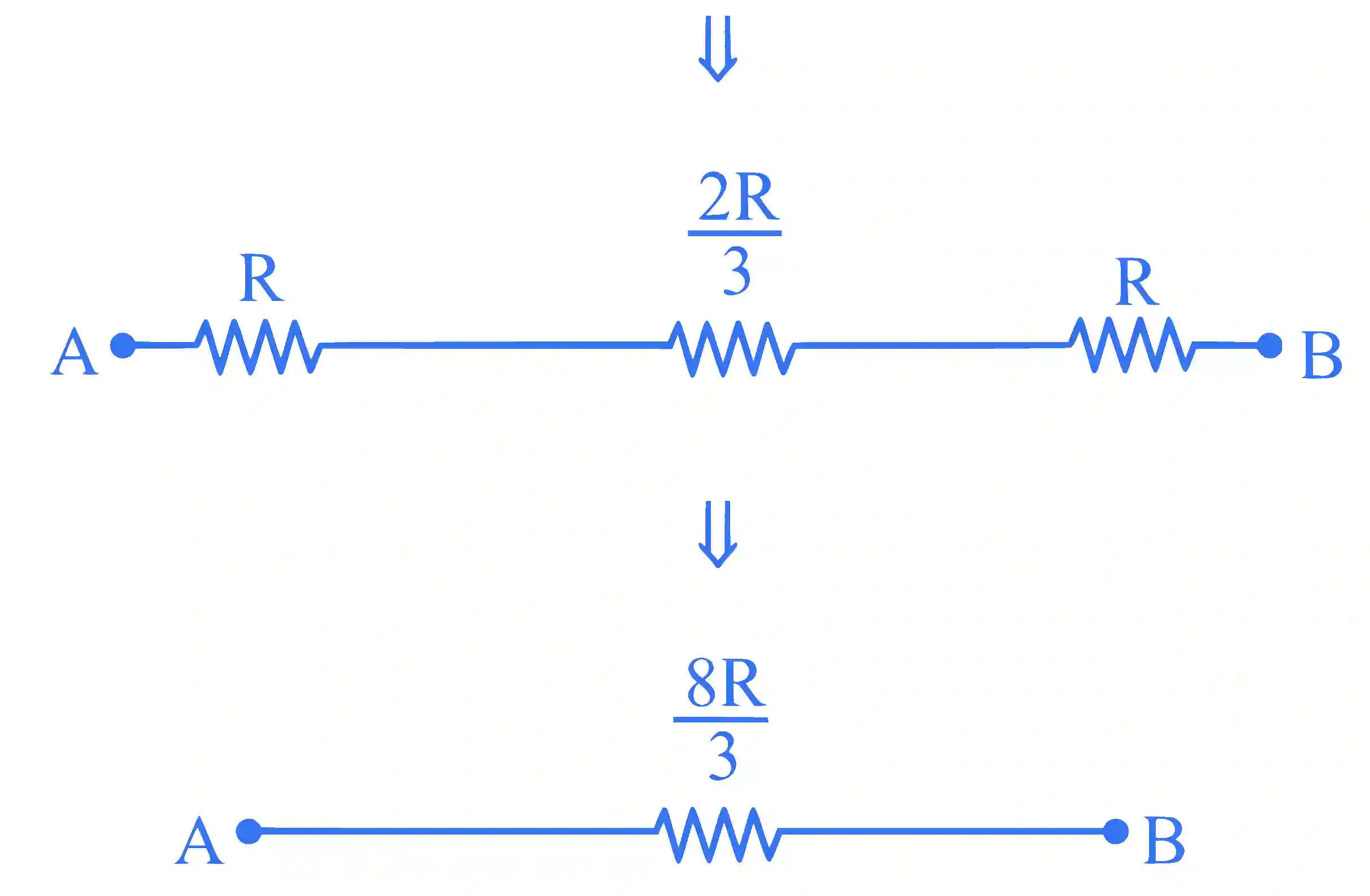

JEE Main 2024 (Online) 9th April Evening Shift Physics - Current Electricity Question 32 English Explanation 1 JEE Main 2024 (Online) 9th April Evening Shift Physics - Current Electricity Question 32 English Explanation 2 JEE Main 2024 (Online) 9th April Evening Shift Physics - Current Electricity Question 32 English Explanation 3
