QJEEM24Ph4567: JEE Main 2024 Physics - Class 12 JEEM24Ph4567 Solution: The value of unknown resistance ( x ) for which the potential…

Question

Verified Solution • 2025–26 Session moderate

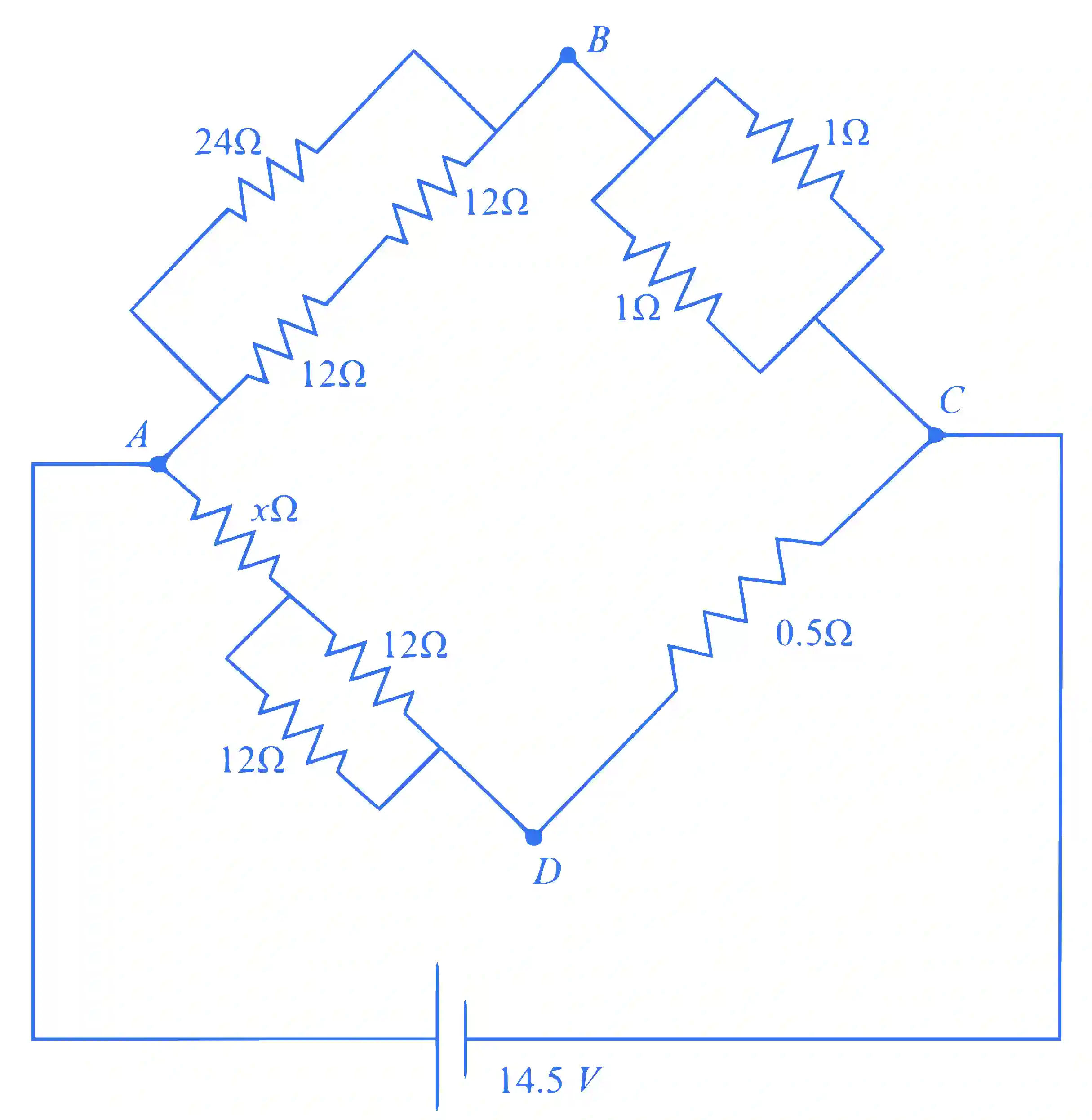

The value of unknown resistance $(x)$ for which the potential difference between $B$ and $D$ will be zero in the arrangement shown, is :

JEE Main 2024 (Online) 6th April Morning Shift Physics - Current Electricity Question 12 English

Accepted Answer

Balanced wheatstone bridge.

$\Rightarrow 12 \times 0.5 = (x + 6) \times \frac{1}{2} \Rightarrow x = 6 Ω$

Step-by-Step Verified Solution
