QJEEM24Ph353e: JEE Main 2024 Physics - Class 12 JEEM24Ph353e Solution: The correct truth table for the following logic circuit is :

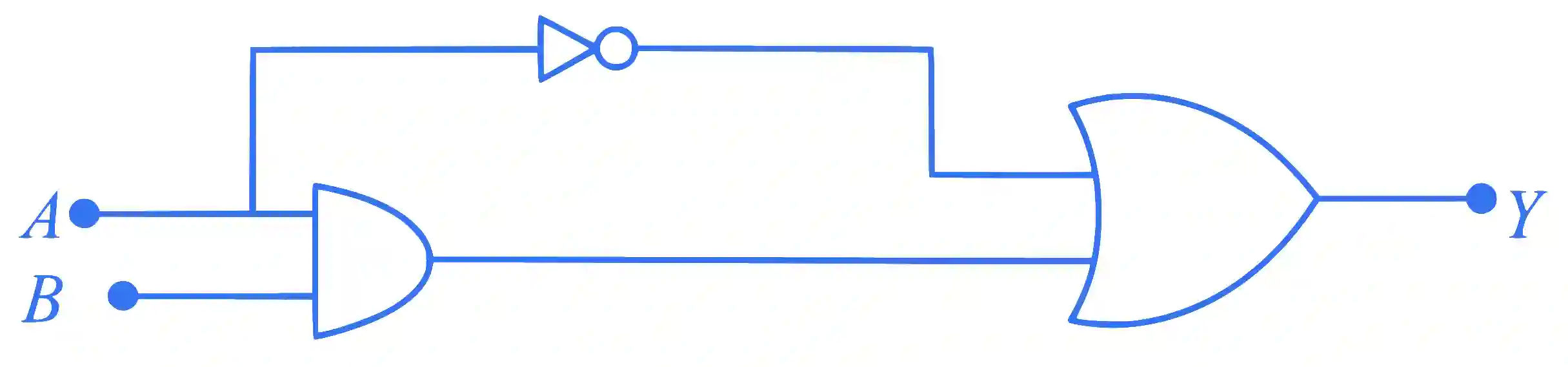

The correct truth table for the following logic circuit is :

JEE Main 2024 (Online) 6th April Morning Shift Physics - Semiconductor Question 10 English

Multiple Choice Options

  • A https://ik.imagekit.io/novatra/photos/8526aa59d849f470f4e7047f5a499bb62c34a8b469a367f549e273f9eff49450.webp
  • B https://ik.imagekit.io/novatra/photos/b26aef10a87dd9951ab6f50cc7e2626b4bcd6a8ff323f280d25cf2a570d8391a.webp
  • C https://ik.imagekit.io/novatra/photos/375f1dfeacf7e929bac621303e27ed43549a02c25066732b99803298a7a20639.webp
  • D https://ik.imagekit.io/novatra/photos/6cb27bdf65a6f0aa99079a1c0039cbc23e746fd8b69542b3cdf465dc6fadb623.webp

Step-by-Step Verified Solution

NOT, OR and AND gate.

AA BB YY
0 0 1
0 1 1
1 0 0
1 1 1
