Question

Verified Solution • 2025–26 Session moderate

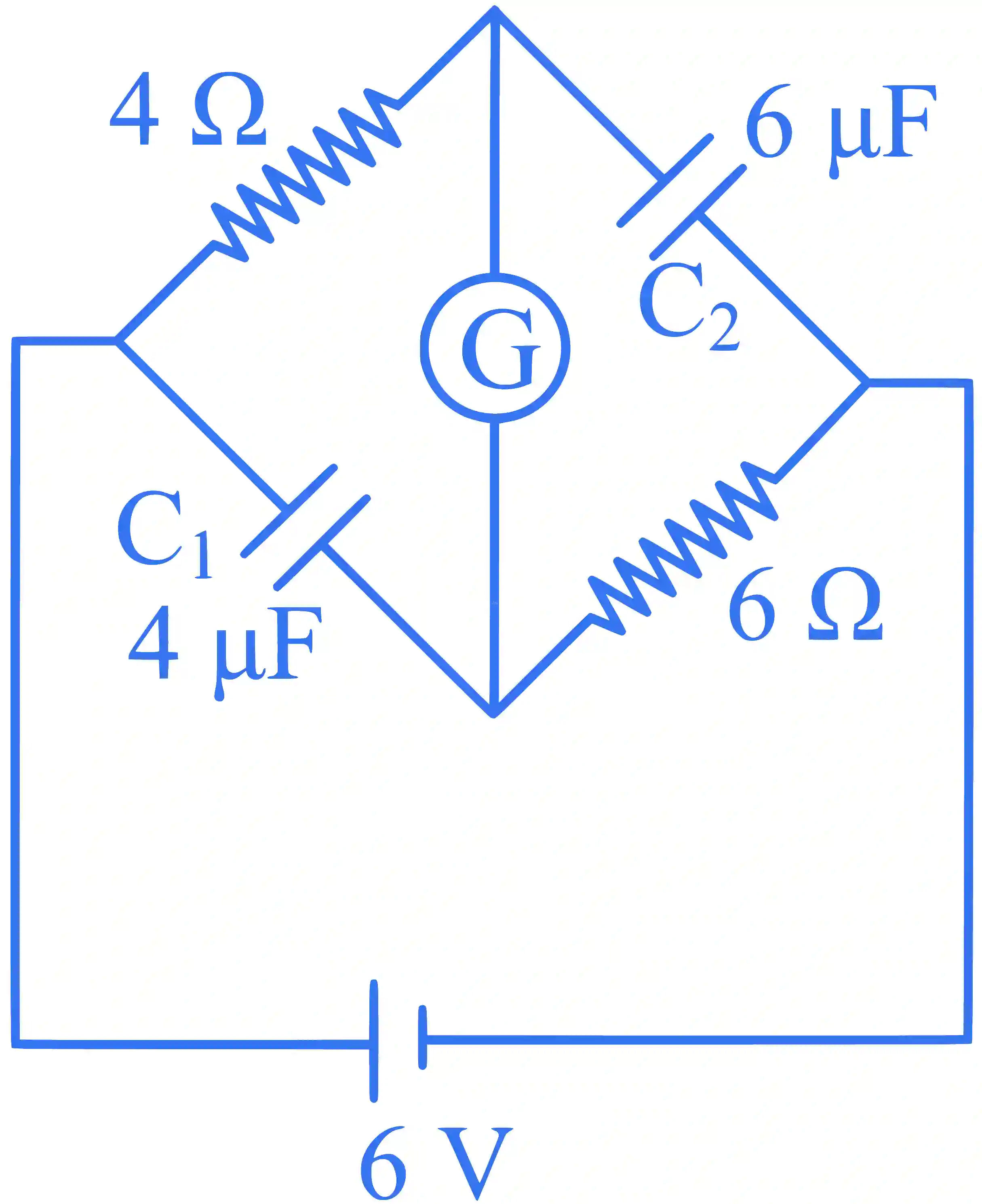

A galvanometer

(G)

of

2 \Omega

resistance is connected in the given circuit. The ratio of charge stored in

C_1

and

C_2

is :

Accepted Answer

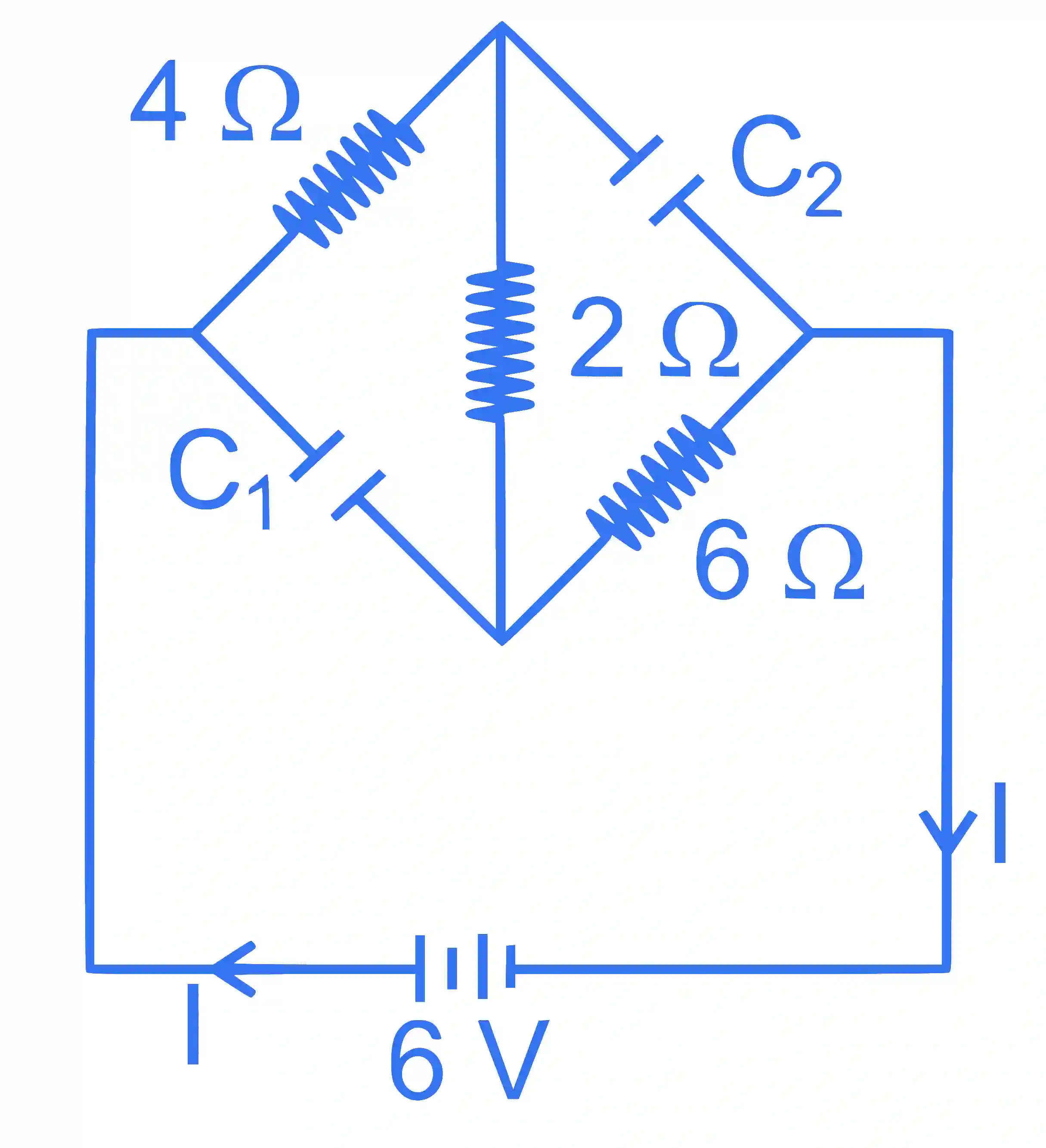

In steady state

\begin{aligned}&amp; { R_{eq} }=12 \Omega \\\\&amp; I=\frac{6}{12}=0.5 \mathrm{~A}\end{aligned}

P.D across

C_1=3 \mathrm{~V}

P.D acoross

\mathrm{C}_2=4 \mathrm{~V}

\begin{aligned}&amp; \mathrm{q}_1=\mathrm{C}_1 \mathrm{~V}_1=12 \mu \mathrm{C} \\\\&amp; \mathrm{q}_2=\mathrm{C}_2 \mathrm{~V}_2=24 \mu \mathrm{C}\end{aligned}

\frac{\mathrm{q}_1}{\mathrm{q}_2}=\frac{1}{2}
