QJEEM24Ph232e: JEE Main 2024 Physics - Class 12 JEEM24Ph232e Solution: Five charges and are situated as shown in the figure. The…

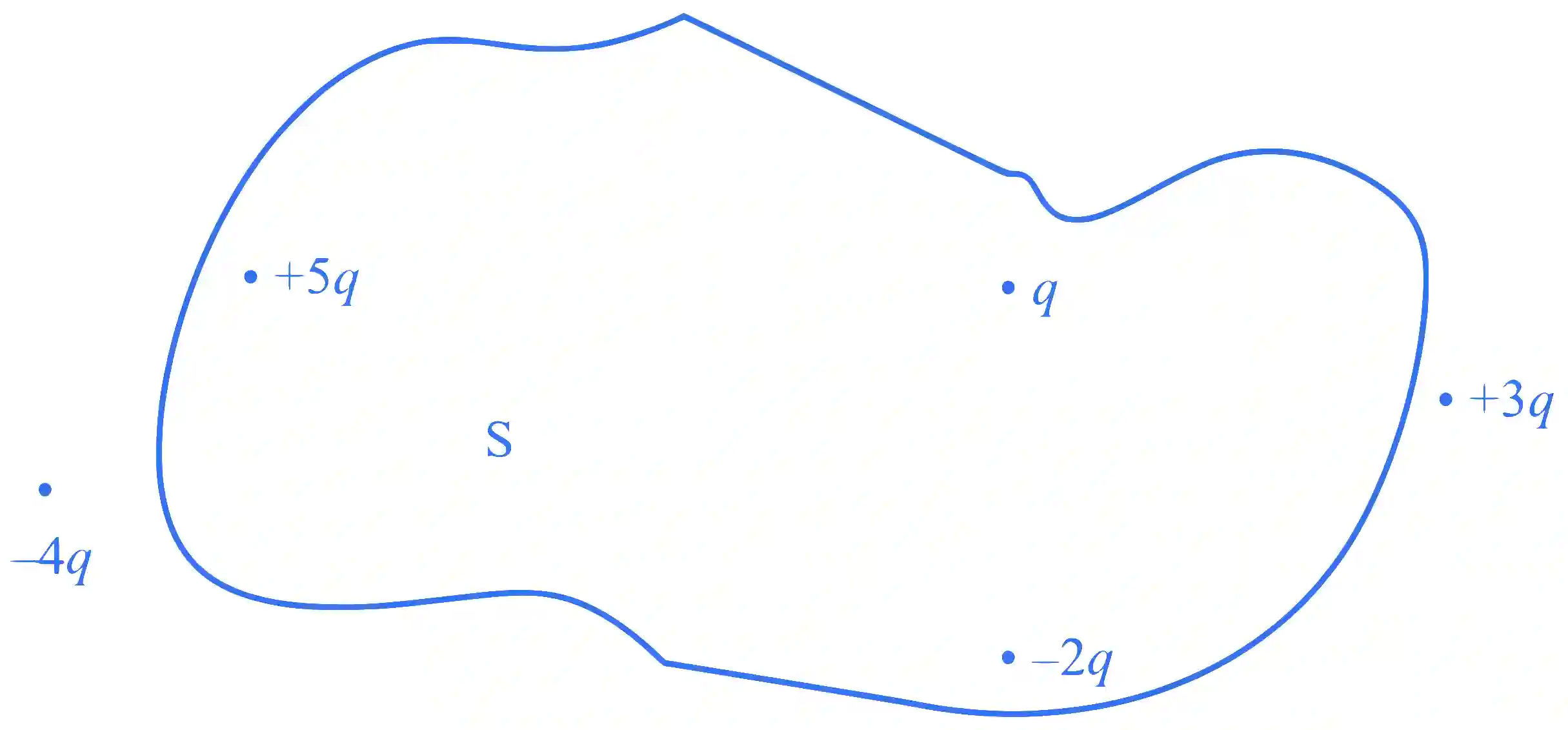

Five charges +q,+5q,−2q,+3q+q,+5 q,-2 q,+3 q and −4q-4 q are situated as shown in the figure. The electric flux due to this configuration through the surface SS is :

JEE Main 2024 (Online) 9th April Evening Shift Physics - Electrostatics Question 33 English

Multiple Choice Options

  • A qϵ0\frac{q}{\epsilon_0}
  • B 3qϵ0\frac{3 q}{\epsilon_0}
  • C 5qϵ0\frac{5 q}{\epsilon_0}
  • D 4qϵ0\frac{4 q}{\epsilon_0}

Step-by-Step Verified Solution

ϕamp;=qenϵ0amp;=(5+1−2)qϵ0amp;=4qϵ0\begin{aligned}\phi & =\frac{q_{\mathrm{en}}}{\epsilon_0} \\& =\frac{(5+1-2) q}{\epsilon_0} \\& =\frac{4 q}{\epsilon_0}\end{aligned}
