Verified Solution • 2025–26 Session moderate

QJEEM24Ph0507: JEE Main 2024 Physics - Class 12 JEEM24Ph0507 Solution: Three infinitely long charged thin sheets are placed as shown…

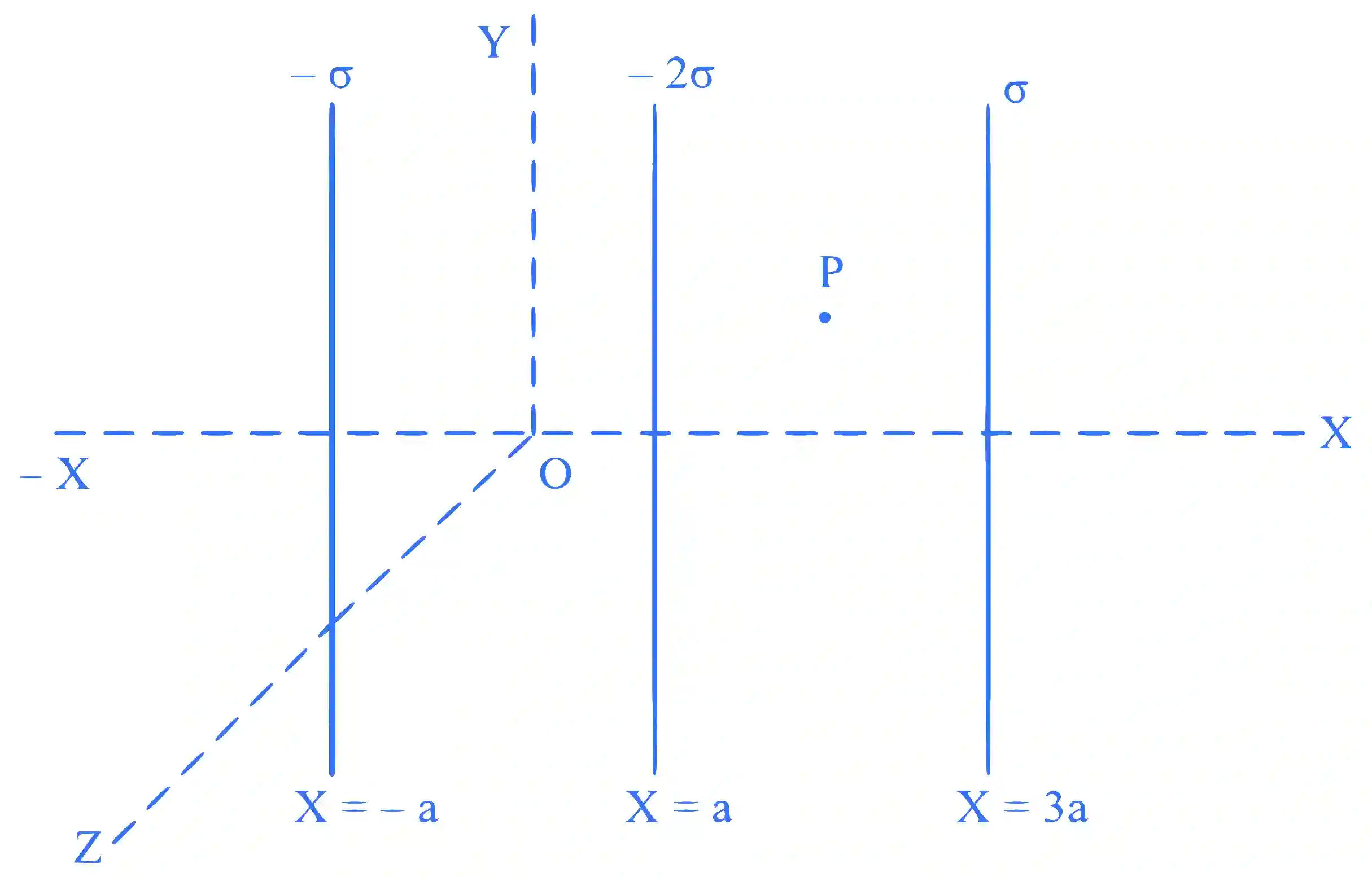

Three infinitely long charged thin sheets are placed as shown in figure. The magnitude of electric field at the point PP is xσϵ0\frac{x \sigma}{\epsilon_0} . The value of xx is _________ (all quantities are measured in SI units).

JEE Main 2024 (Online) 6th April Morning Shift Physics - Electrostatics Question 19 English

Step-by-Step Verified Solution

JEE Main 2024 (Online) 6th April Morning Shift Physics - Electrostatics Question 19 English Explanation E→pamp;=(σ2ε0+2σ2ε0+σ2ε0)(−i^)amp;=−2σε0i^\begin{aligned} \overrightarrow{\mathrm{E}}_{\mathrm{p}} & =\left(\frac{\sigma}{2 \varepsilon_0}+\frac{2 \sigma}{2 \varepsilon_0}+\frac{\sigma}{2 \varepsilon_0}\right)(-\hat{\mathrm{i}}) \\\\ & =-\frac{2 \sigma}{\varepsilon_0} \hat{\mathrm{i}}\end{aligned}
