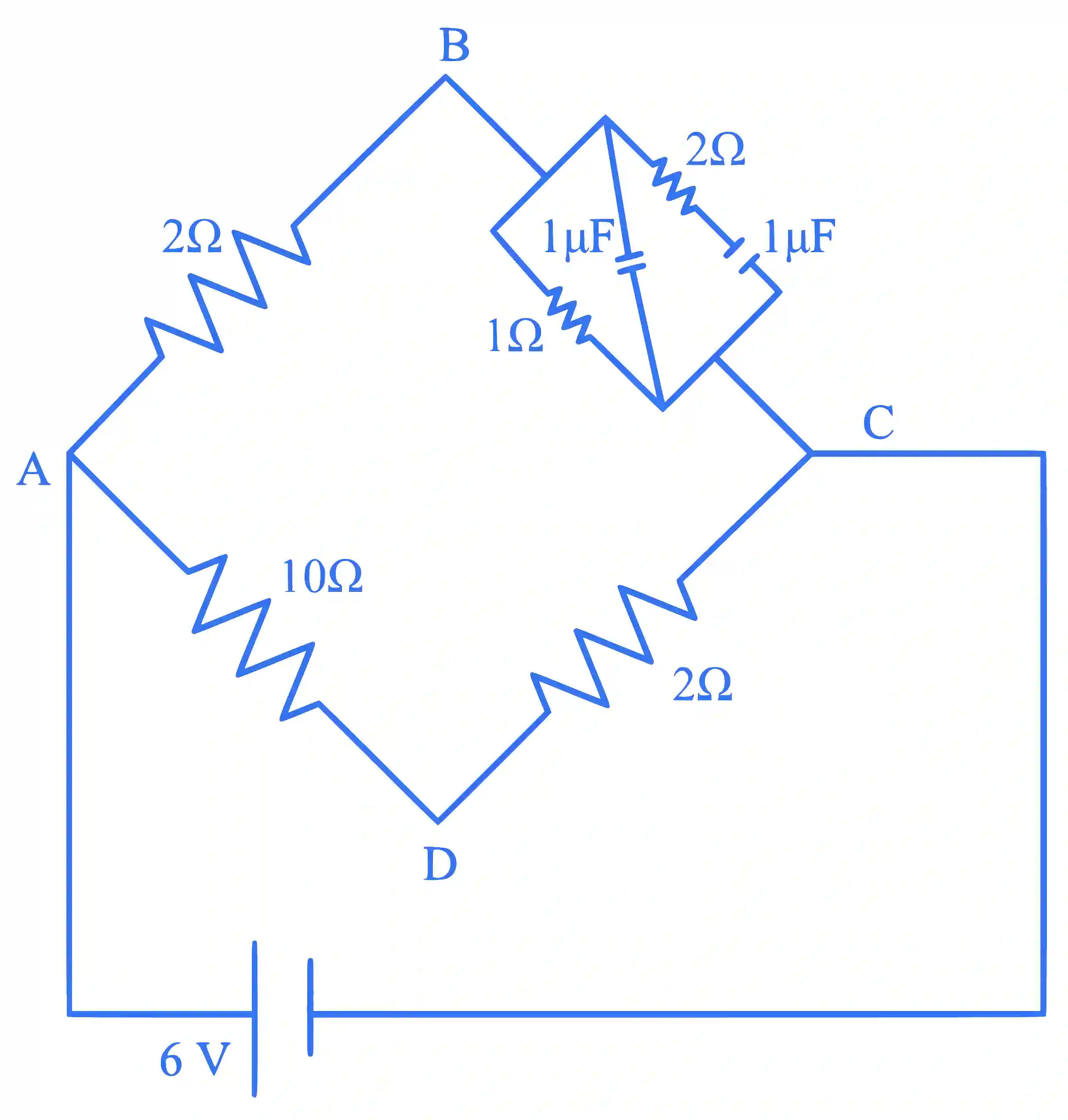

For the given circuit, in the steady state, $\left|\mathrm{V}_{\mathrm{B}}-\mathrm{V}_{\mathrm{D}}\right|=$ ________ V.

Step-by-Step Verified Solution

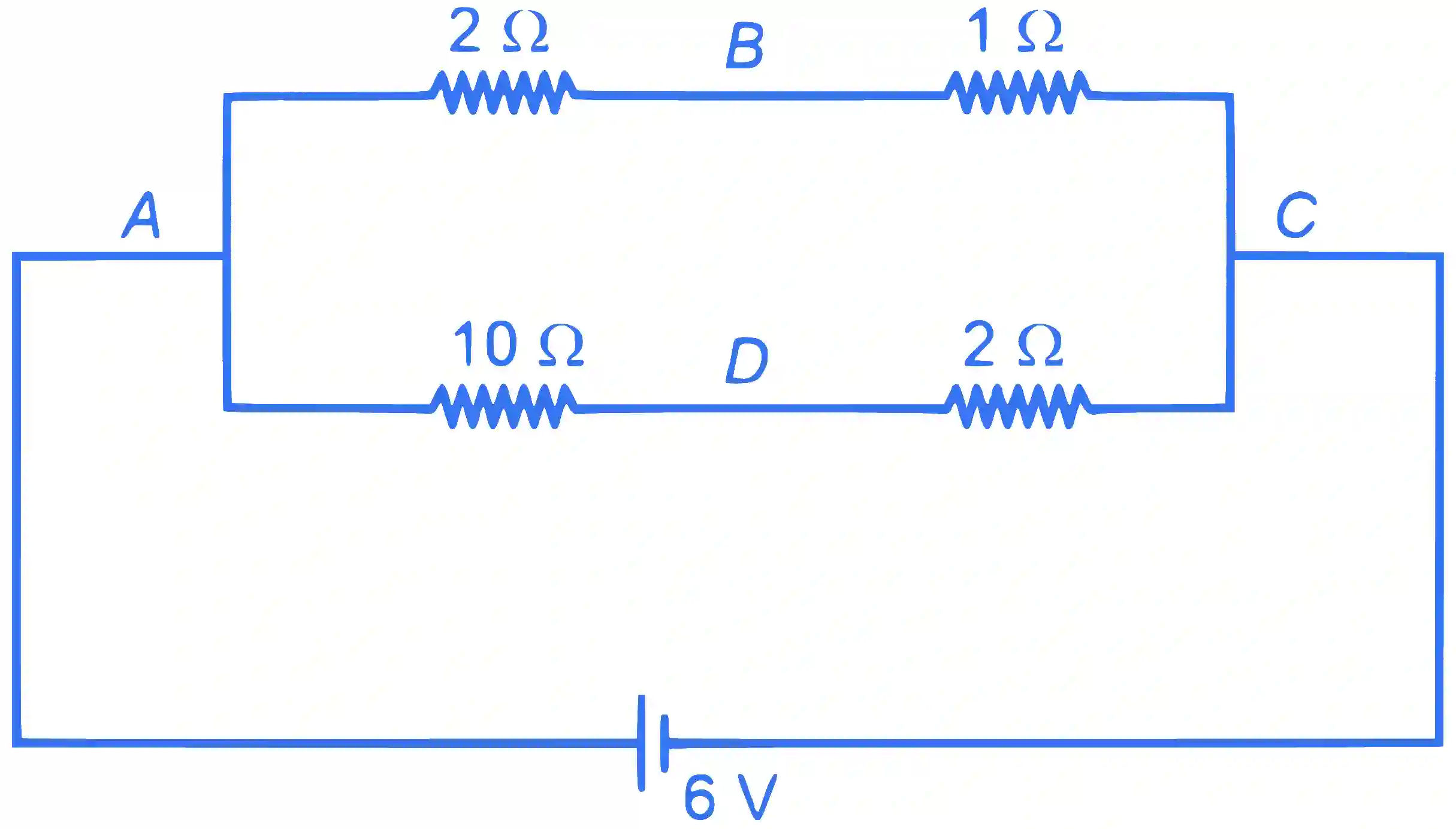

In steady state, capacitor behaves as an open circuit. Circuit is :



$\Rightarrow i_{A B}=\frac{6}{3}=2 \mathrm{~A}$

$i_{A D}=\frac{6}{12}=0.5 \mathrm{~A}$

$\Rightarrow V_{B}+2 \times 2-10 \times 0.5=V_{D}$

$\Rightarrow V_{B}-V_{D}=1$ volt
