Question

Verified Solution • 2025–26 Session moderate

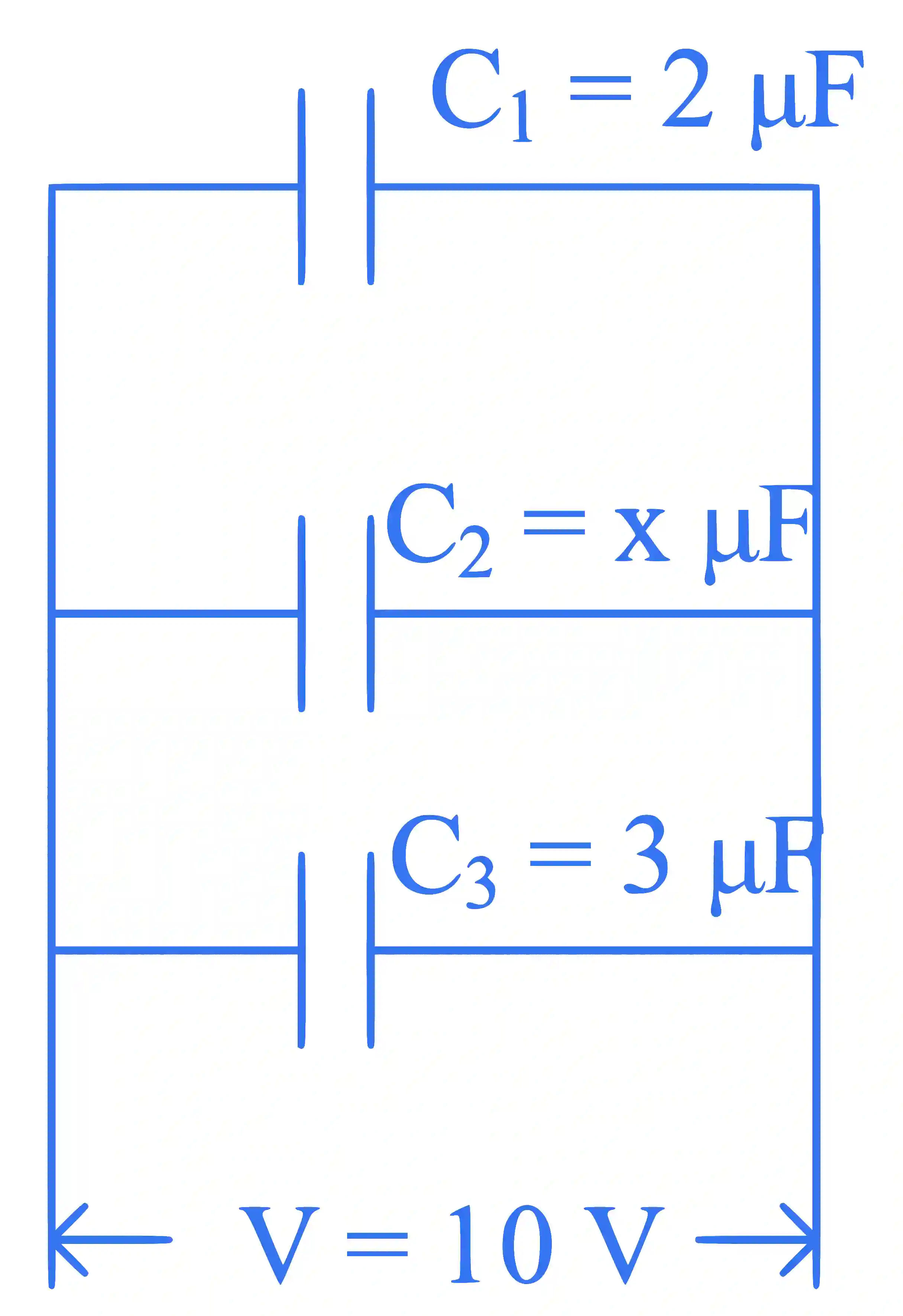

In the given figure the total charge stored in the combination of capacitors is

100~ \mu \mathrm{C}

. The value of '

x

' is _________.

JEE Main 2023 (Online) 15th April Morning Shift Physics - Capacitor Question 36 English

Accepted Answer

Charge on

\mathrm{C}_1

is

\mathrm{Q}_1=2 \times 10=20 \mu \mathrm{C}

.....(i)

Charge on

\mathrm{C}_2

is

\mathrm{Q}_2=\mathrm{x} \times 10=10 \mathrm{x} \mu \mathrm{C}

.....(ii)

Charge on

\mathrm{C}_3

is

\mathrm{Q}_3=3 \times 10=30 \mu \mathrm{C}

.....(iii)

Total charge

20+10 \mathrm{x}+30=100

\Rightarrow x=5
