QJEEM23Phd075: JEE Main 2023 Physics - Class 12 JEEM23Phd075 Solution: As shown in the figure, a plane mirror is fixed at a height of…

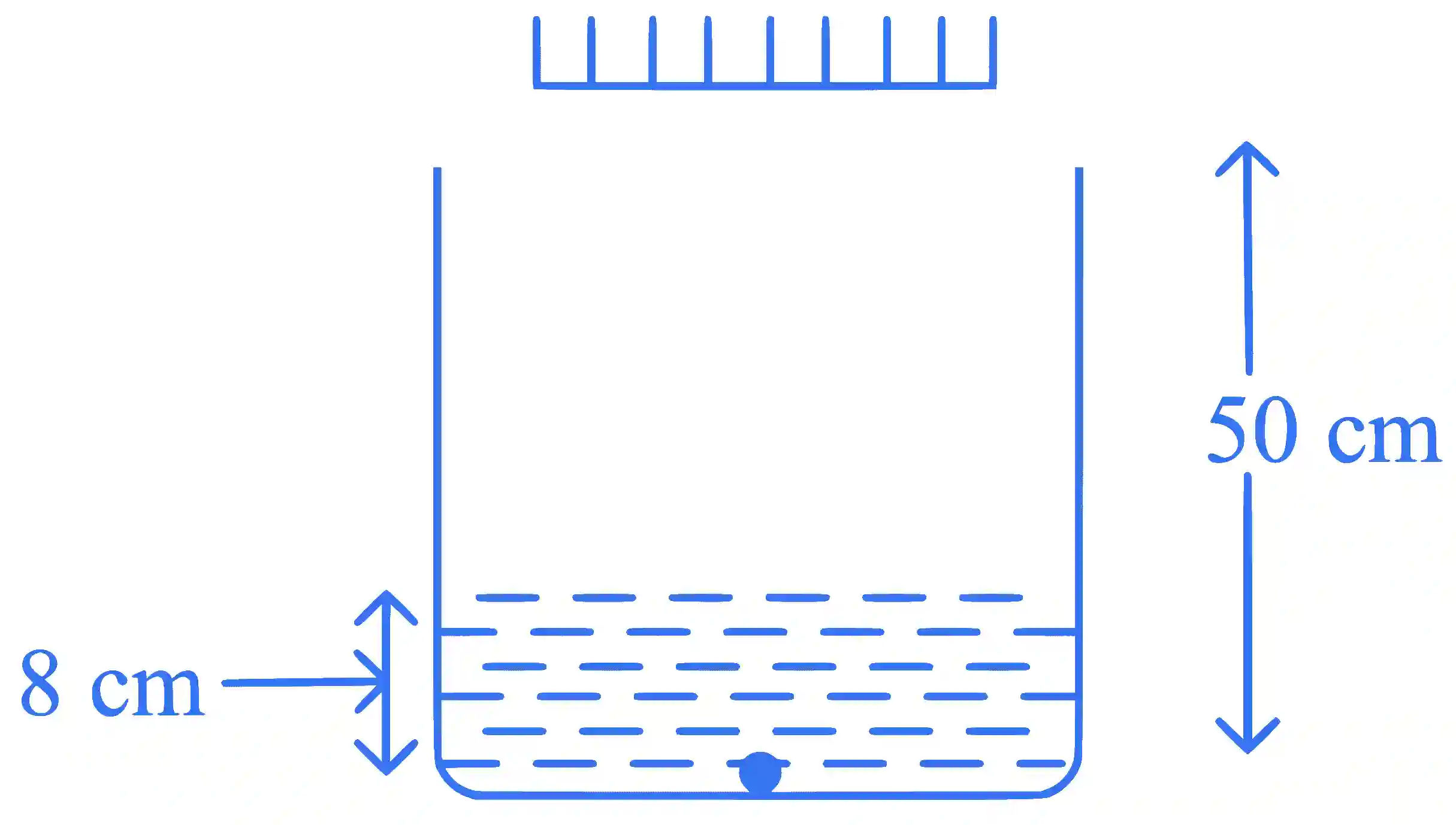

As shown in the figure, a plane mirror is fixed at a height of 50 cm50 \mathrm{~cm} from the bottom of tank containing water (μ=43)\left(\mu=\frac{4}{3}\right) . The height of water in the tank is 8 cm8 \mathrm{~cm} . A small bulb is placed at the bottom of the water tank. The distance of image of the bulb formed by mirror from the bottom of the tank is ___________ cm\mathrm{cm} .

JEE Main 2023 (Online) 11th April Evening Shift Physics - Geometrical Optics Question 56 English

Step-by-Step Verified Solution

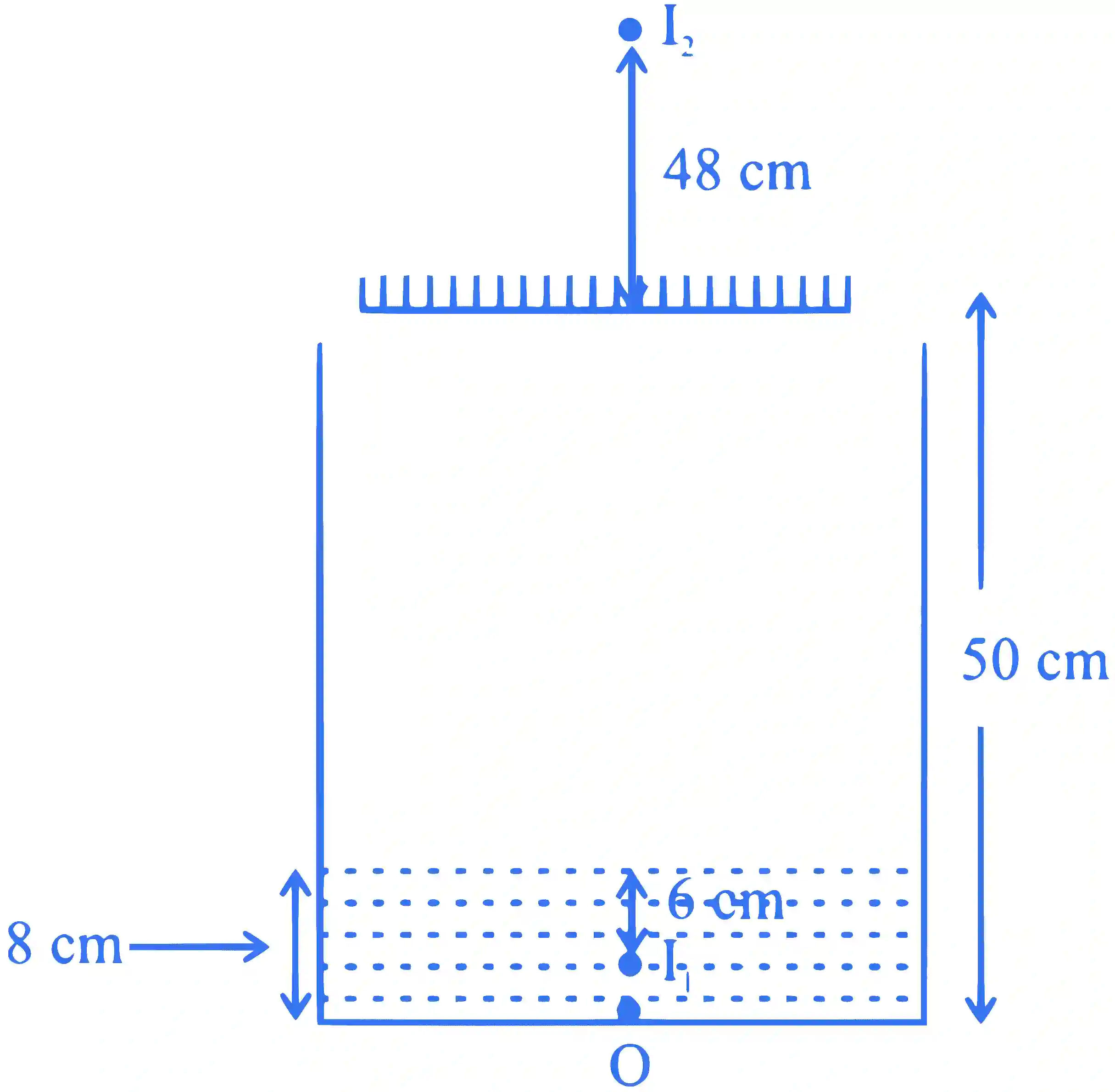

JEE Main 2023 (Online) 11th April Evening Shift Physics - Geometrical Optics Question 56 English Explanation

 Apparent depth of O=dμ\text { Apparent depth of } \mathrm{O}=\frac{\mathrm{d}}{\mu} =843=6 cm=\frac{8}{\frac{4}{3}}=6 \mathrm{~cm}

Distance of object from mirror = 42 + 6 = 48 m

 Distance between O and I2=48+50=98 cm\text { Distance between } \mathrm{O} \text { and } \mathrm{I}_2=48+50=98 \mathrm{~cm}
