The output YY for the inputs AA and BB of circuit is given by

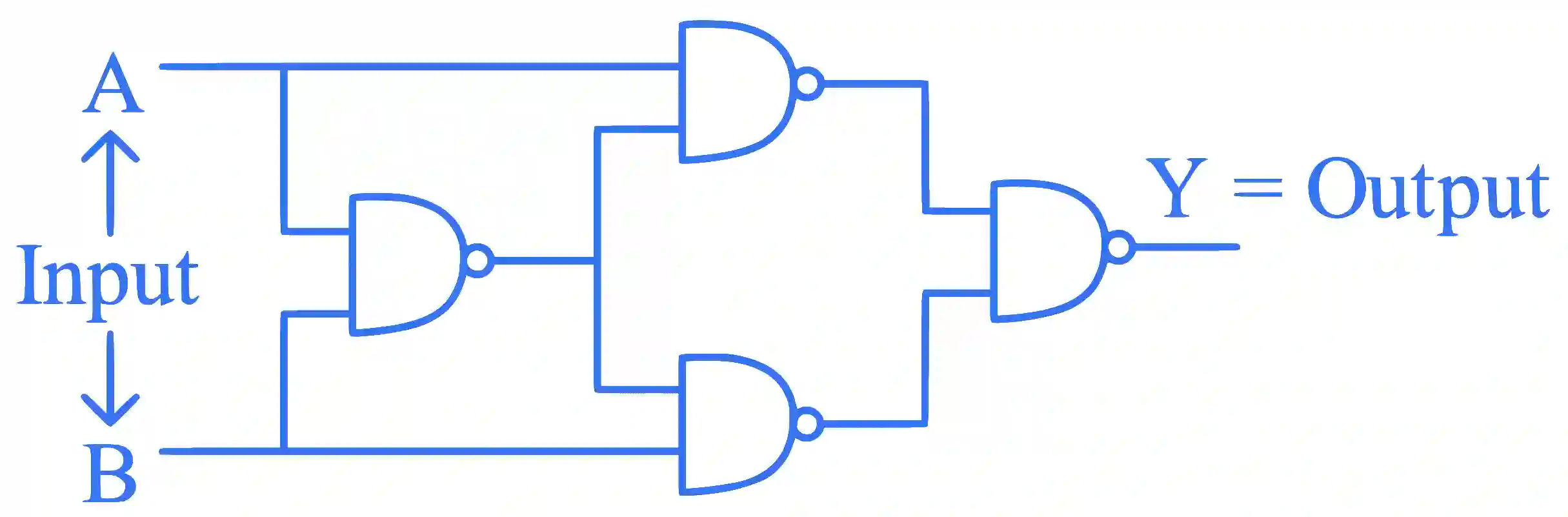

JEE Main 2023 (Online) 30th January Evening Shift Physics - Semiconductor Question 53 English

Truth table of the shown circuit is:

Multiple Choice Options

  • A https://ik.imagekit.io/novatra/photos/0c5c07fe523c26f50ad62efc99154bd1b63df8d8487cb0d775fe79bcba101fe3.webp
  • B https://ik.imagekit.io/novatra/photos/4ccdcb447df09d648f9f0b67693880324a56f2732041c572215fe0647ecfef78.webp
  • C https://ik.imagekit.io/novatra/photos/6526cbaedc7aad437139c2cb1fb0dae5882f4947f640a7a36aeec39b3ee35f05.webp
  • D https://ik.imagekit.io/novatra/photos/4a09b82747cb2be4cd1e09ae77af335b53d57d590cc664f15d8aa3844d64e5be.webp

Step-by-Step Verified Solution

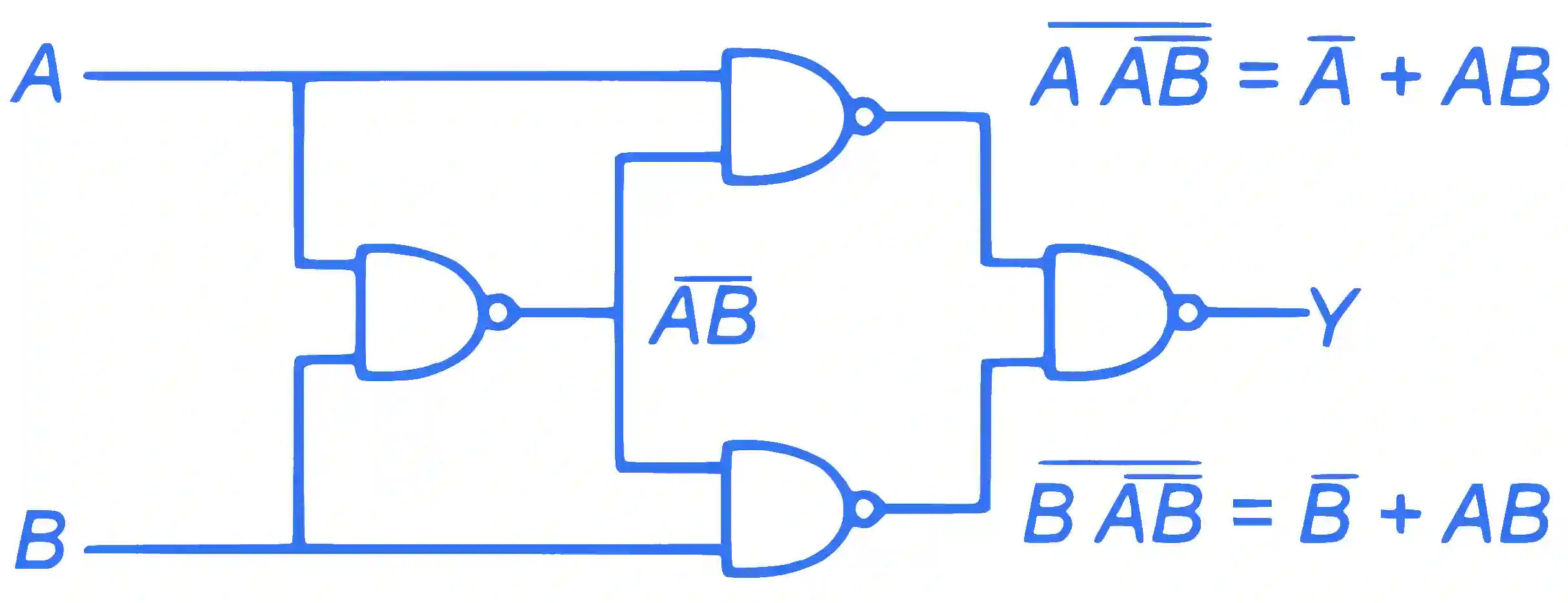

JEE Main 2023 (Online) 30th January Evening Shift Physics - Semiconductor Question 53 English Explanation 1

Y=(A‾+AB)(B‾+AB)‾=(A+B)(A‾+B‾)Y = \overline {\left( {\overline A + AB} \right)\left( {\overline B + AB} \right)} = \left( {A + B} \right)\left( {\overline A + \overline B } \right)

=AB‾+BA‾= A\overline B + B\overline A (XOR gate)

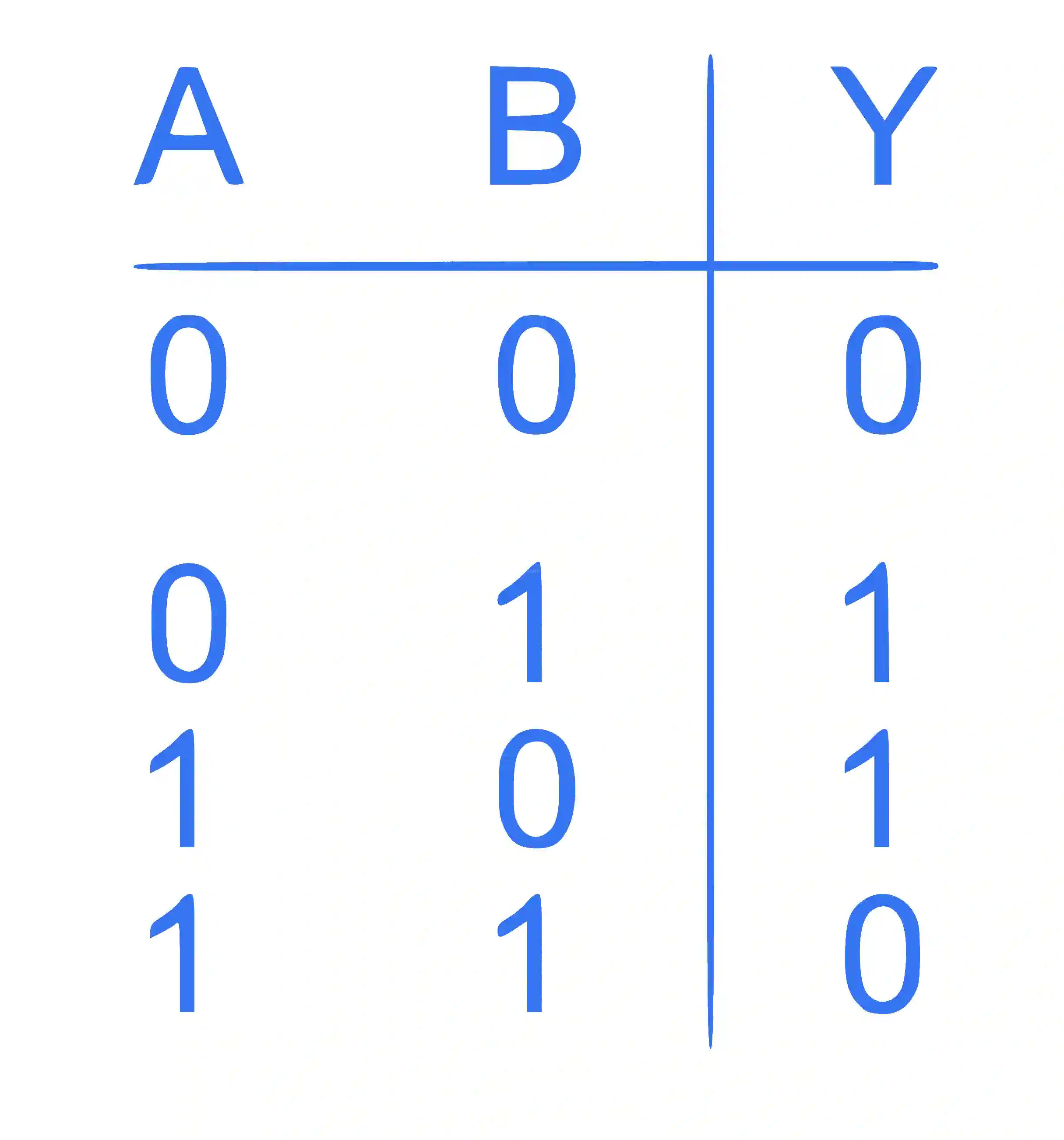

JEE Main 2023 (Online) 30th January Evening Shift Physics - Semiconductor Question 53 English Explanation 2
