For the given logic gates combination, the correct truth table will be

JEE Main 2023 (Online) 29th January Evening Shift Physics - Semiconductor Question 51 English

Multiple Choice Options

  • A https://ik.imagekit.io/novatra/photos/ad9476707e806cb27f00a0a4766892cf2827fd90c175c69bf1d65a7d768089bf.webp
  • B https://ik.imagekit.io/novatra/photos/54d0400f769810c17780d9408d8e139a6f13050d4b906d6d8cc87d0fcf4d8e2f.webp
  • C https://ik.imagekit.io/novatra/photos/ac6cfeec1ab12f868c9fbad61710baa9e00fed0e3b90d0526f8232108d58834f.webp
  • D https://ik.imagekit.io/novatra/photos/a9bb0e65d64efd2bd5169e4feae73a33884a8dc06051929adb259c61be8ea79f.webp

Step-by-Step Verified Solution

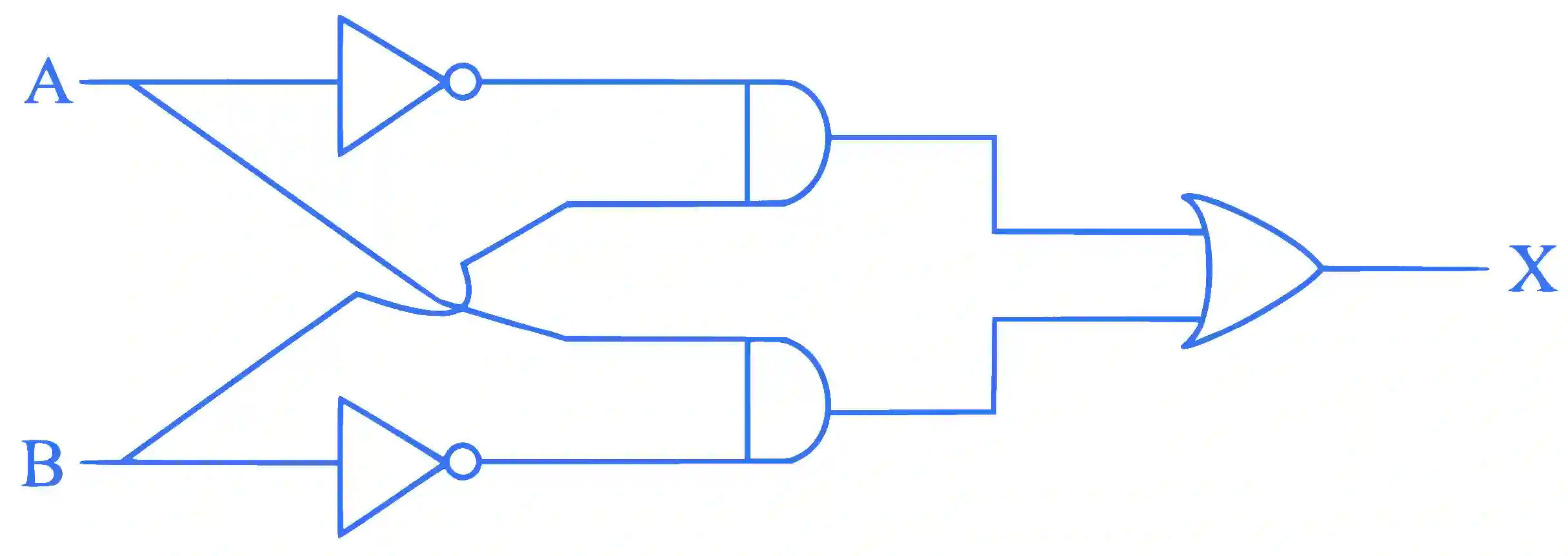

As per the circuit,

X=A′B+AB′X=A'B+AB'

If : A=0,B=0⇒X=0A=0,B=0\Rightarrow X=0

A=0,B=1⇒X=1A=0,B=1\Rightarrow X=1

A=1,B=0⇒X=1A=1,B=0\Rightarrow X=1

A=1,B=1⇒X=0A=1,B=1\Rightarrow X=0
