Question

Verified Solution • 2025–26 Session moderate

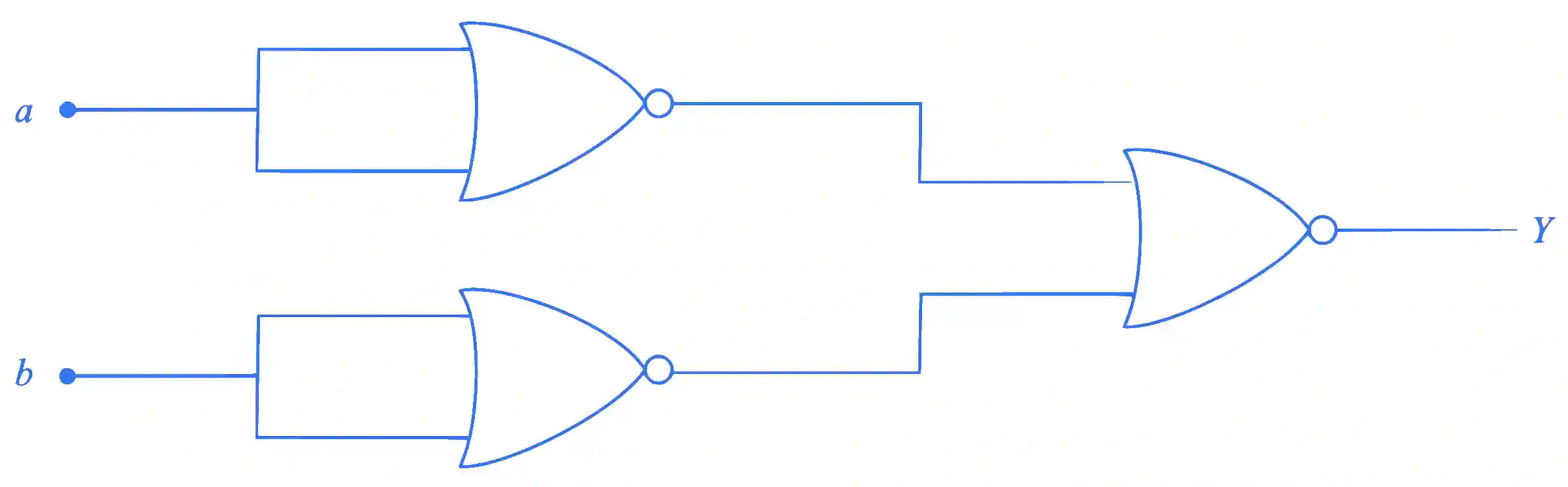

The logic performed by the circuit shown in figure is equivalent to :

JEE Main 2023 (Online) 11th April Morning Shift Physics - Semiconductor Question 39 English

Accepted Answer

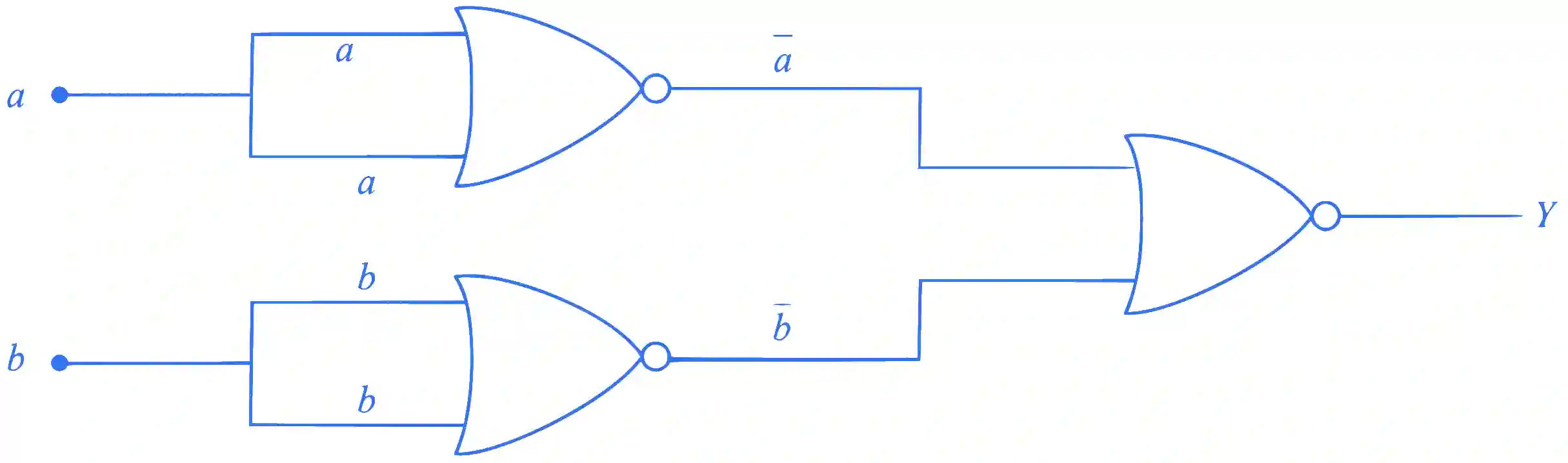

Y=\overline{\bar{a}+\overline{\mathrm{b}}}=a \cdot b

The truth table for the given circuit will be

\begin{array}{|c|c|c|}\hline \mathrm{a} &amp; \mathrm{b} &amp; \text { output } \\\hline 0 &amp; 0 &amp; 0 \\\hline 0 &amp; 1 &amp; 0 \\\hline 1 &amp; 0 &amp; 0 \\\hline 1 &amp; 1 &amp; 1 \\\hline\end{array}

Hence it will be equivalent to AND gate.
