Question

Verified Solution • 2025–26 Session moderate

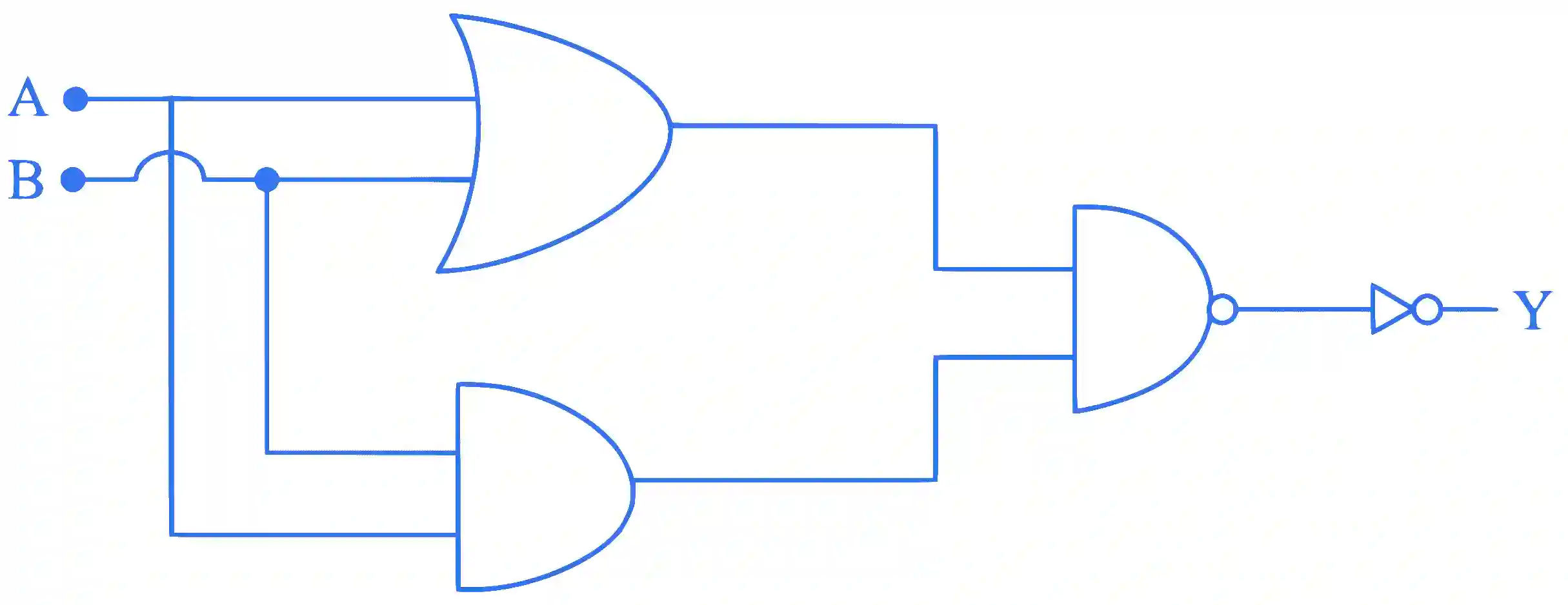

The logic operations performed by the given digital circuit is equivalent to:

JEE Main 2023 (Online) 11th April Evening Shift Physics - Semiconductor Question 40 English

Accepted Answer

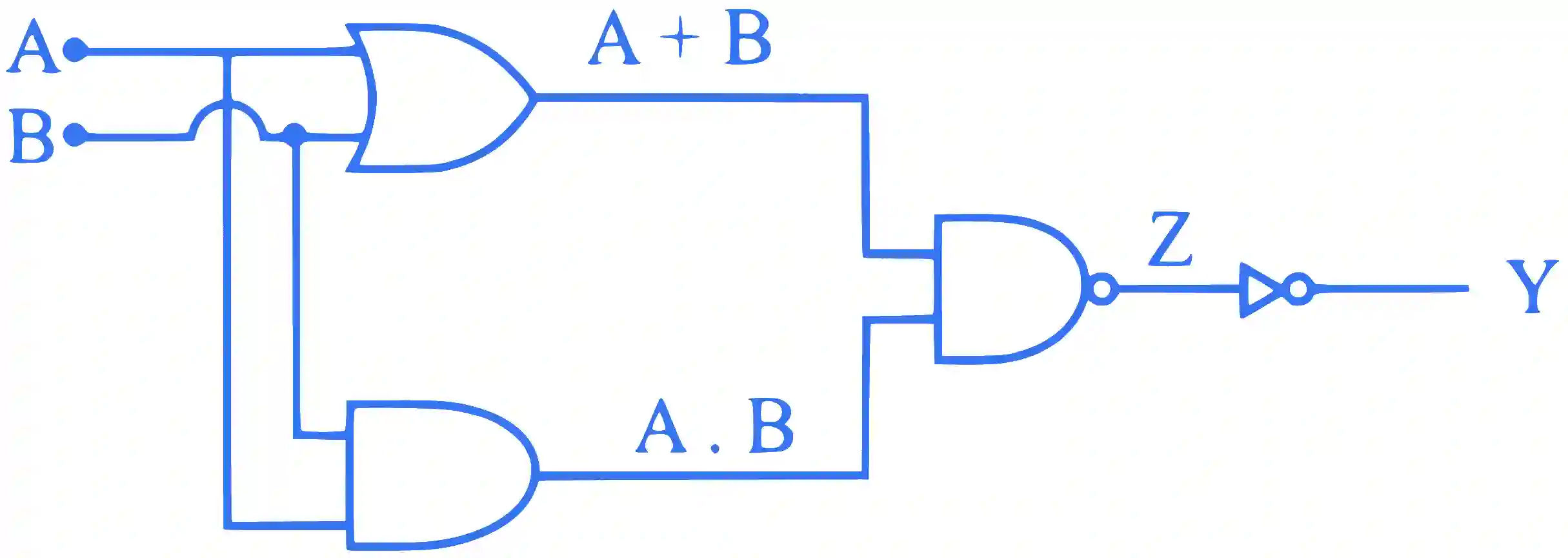

\begin{aligned}Z =\overline{(A+B) \cdot(A \cdot B)} \\\\Y =\bar{Z}=(A+B) \cdot(A \cdot B) \\\\\end{aligned}

Y=A \cdot(A B)+B \cdot(A B)

\begin{aligned}&amp; =A B+A B \\\\&amp; =(A B)\end{aligned}

\therefore

It is an AND gate.
