QJEEM23Ph6089: JEE Main 2023 Physics - Class 12 JEEM23Ph6089 Solution: The logic gate equivalent to the given circuit diagram is :

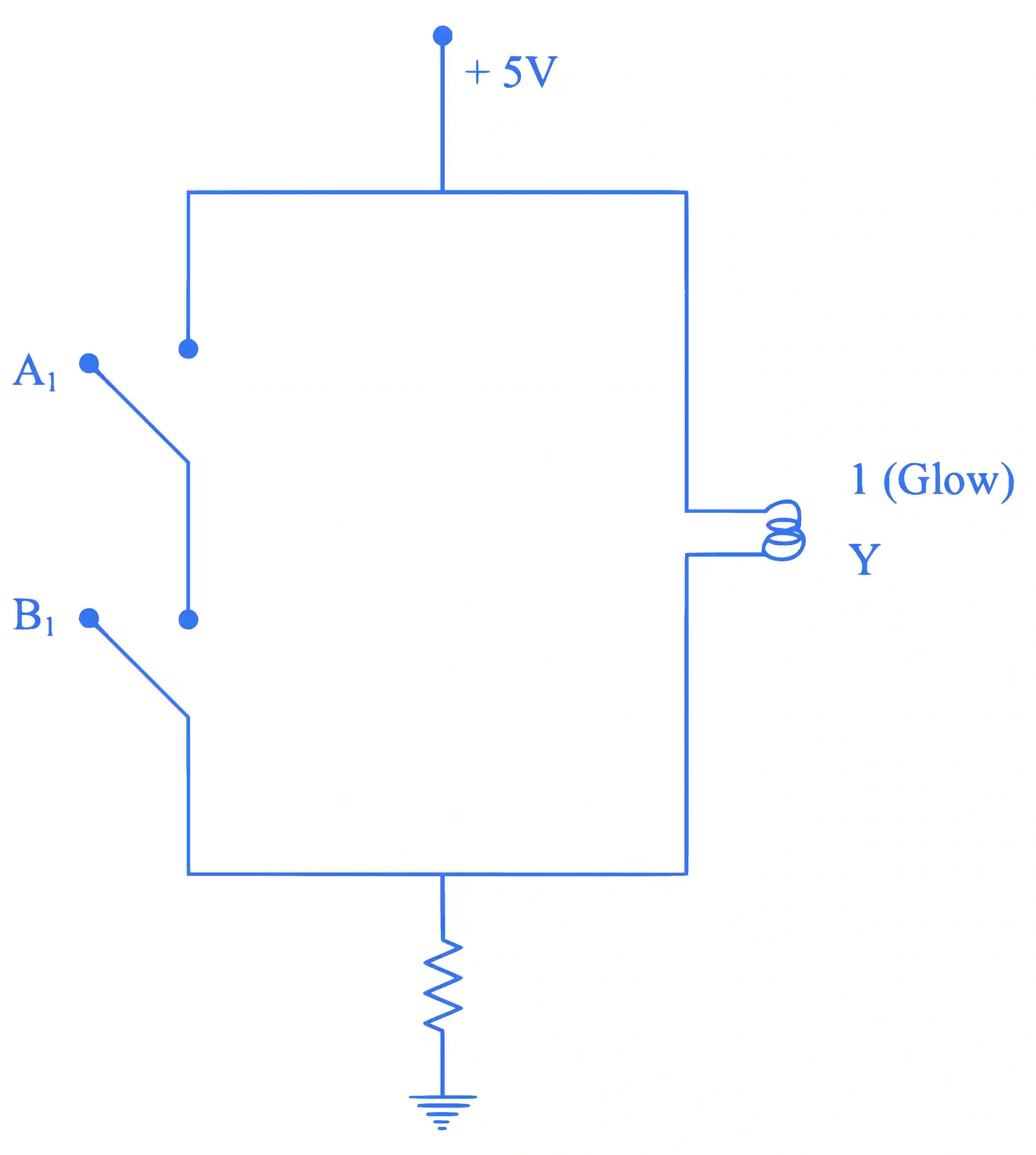

The logic gate equivalent to the given circuit diagram is :
Multiple Choice Options
- A NOR
- B OR
- C NAND
- D AND
Step-by-Step Verified Solution
The truth table for the circuit will be given as below
| 0 | 0 | 1 |
| 0 | 1 | 1 |
| 1 | 0 | 1 |
| 1 | 1 | 0 |
The above truth table is of NAND Gate.
