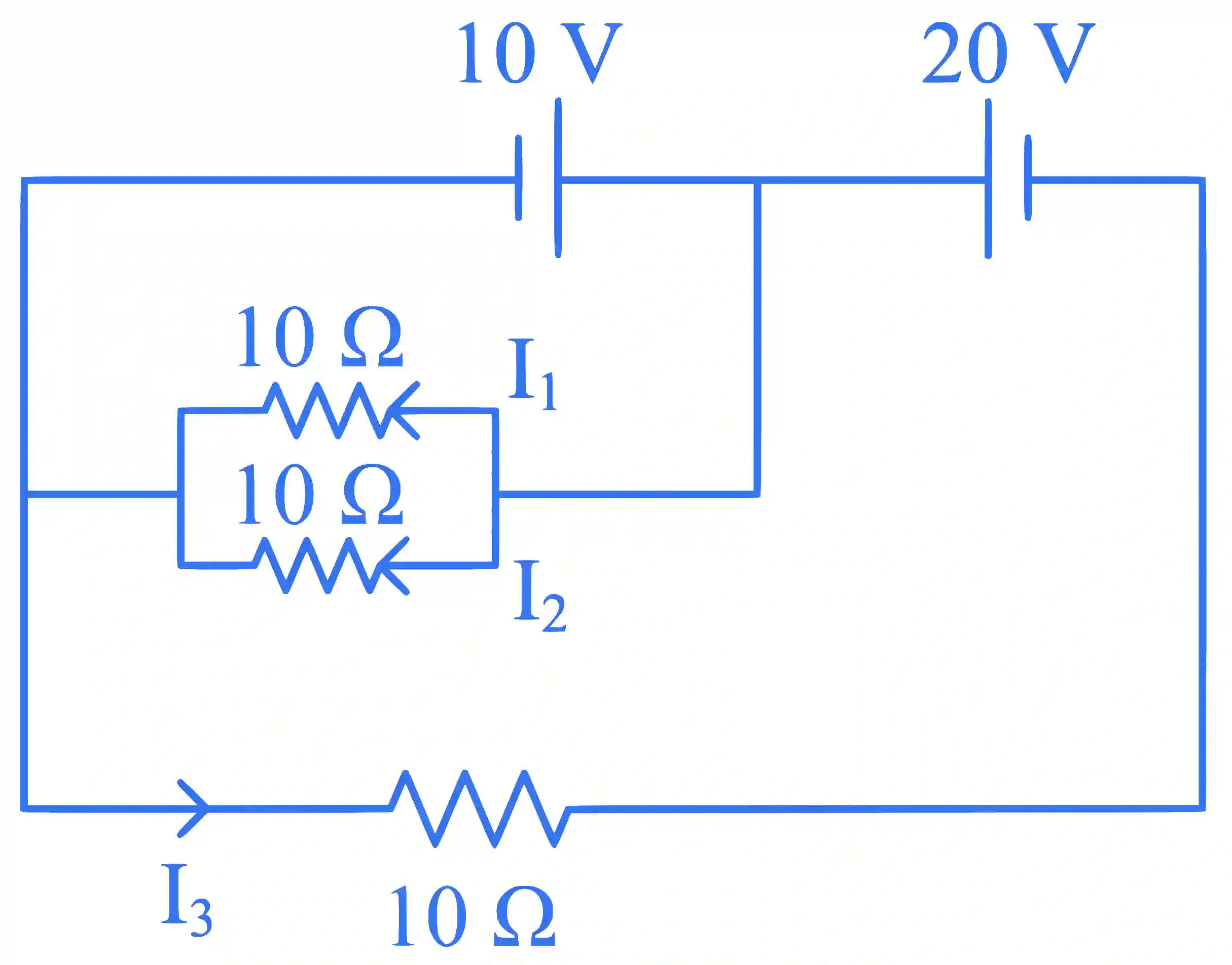

QJEEM23Ph5ee4: JEE Main 2023 Physics - Class 12 JEEM23Ph5ee4 Solution: In the given circuit, the value of is _____________

Step-by-Step Verified Solution

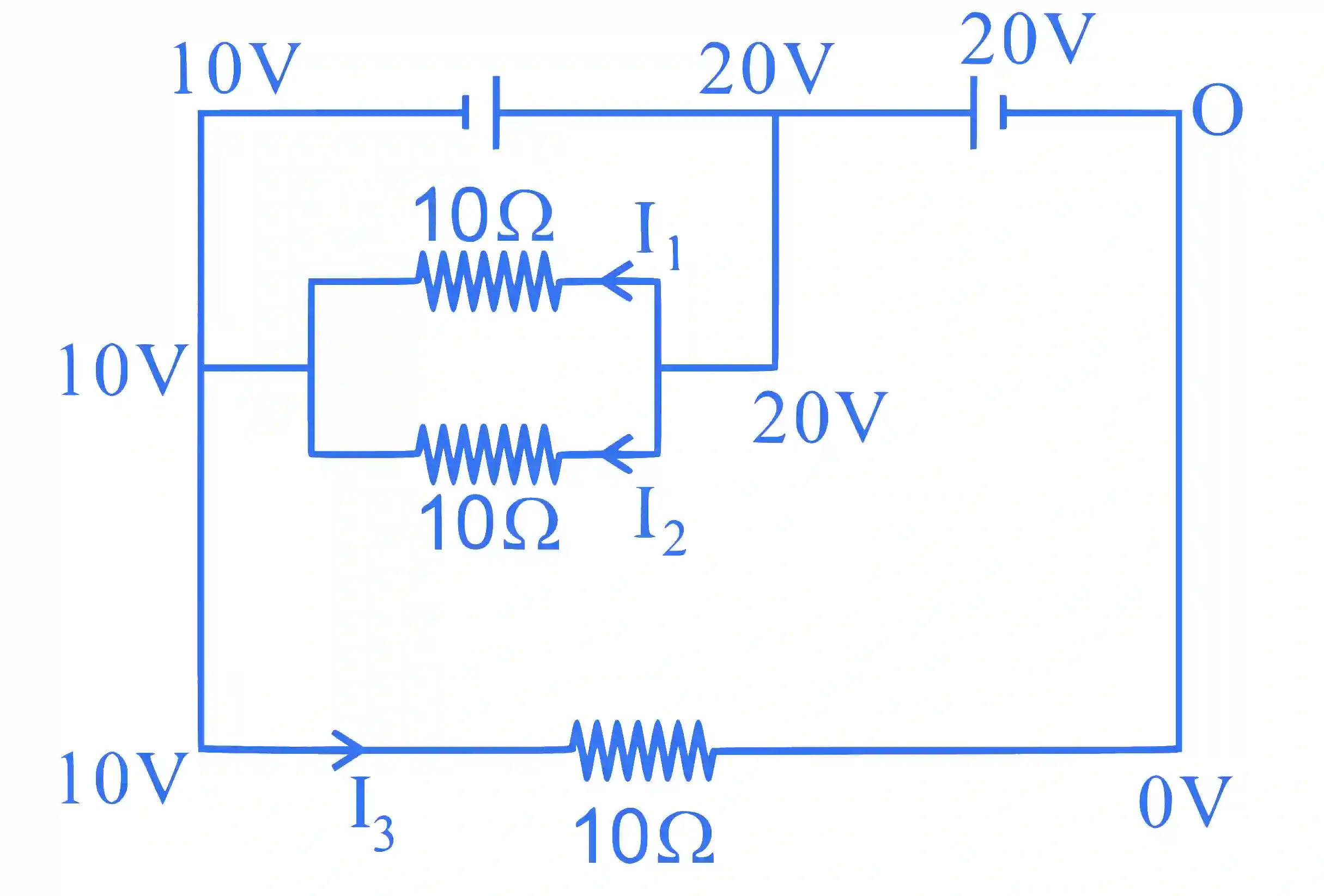

$\begin{aligned} & \mathrm{I}_1=\mathrm{I}_2=\frac{20-10}{10}=1 \mathrm{~A} \\\\ & \mathrm{I}_3=1 \mathrm{~A} \\\\ & \left|\frac{\mathrm{I}_1+\mathrm{I}_3}{\mathrm{I}_2}\right|=2\end{aligned}$
