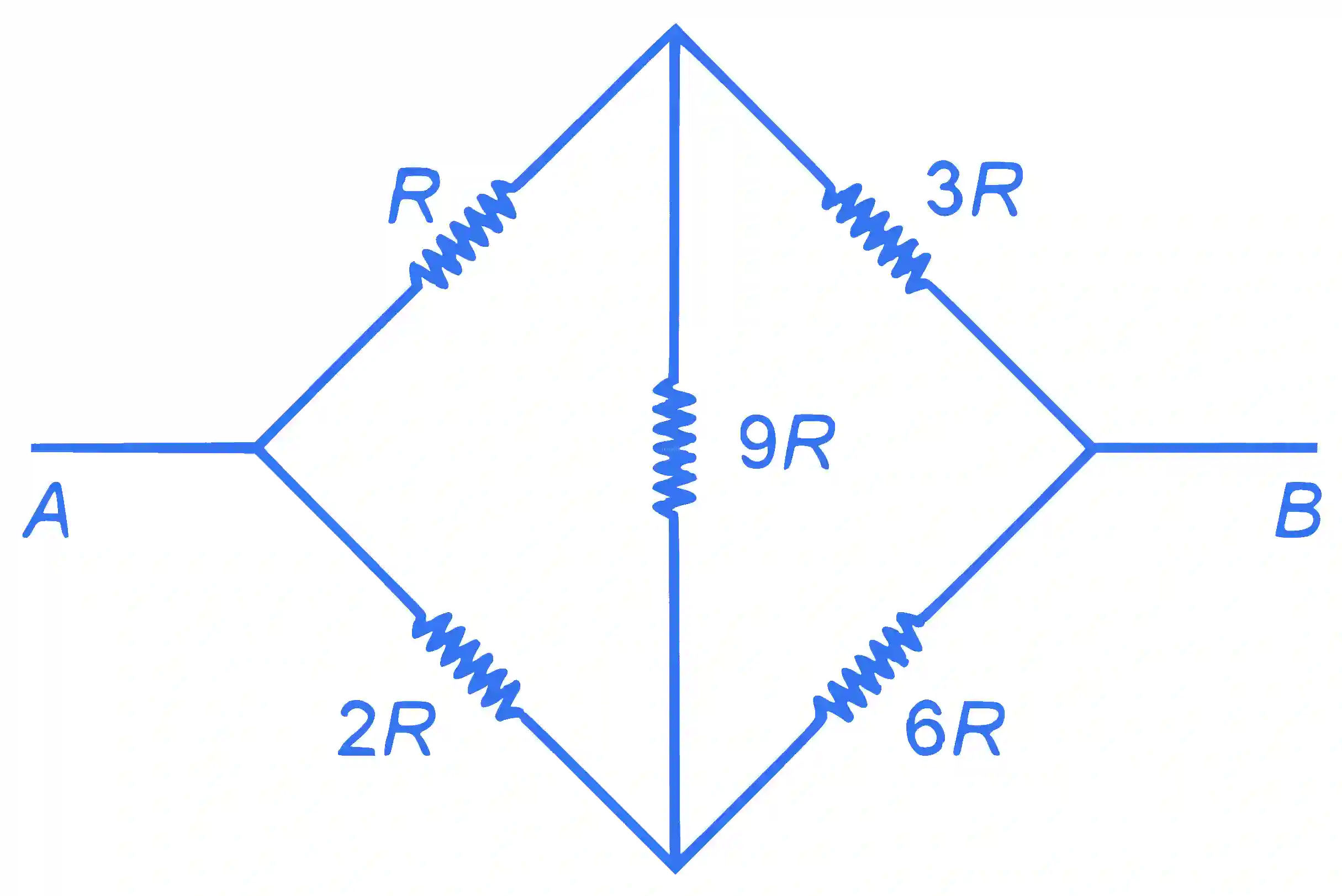

The equivalent resistance between $A$ and $B$ of the network shown in figure;

JEE Main 2023 (Online) 1st February Morning Shift Physics - Current Electricity Question 103 English

Accepted Answer

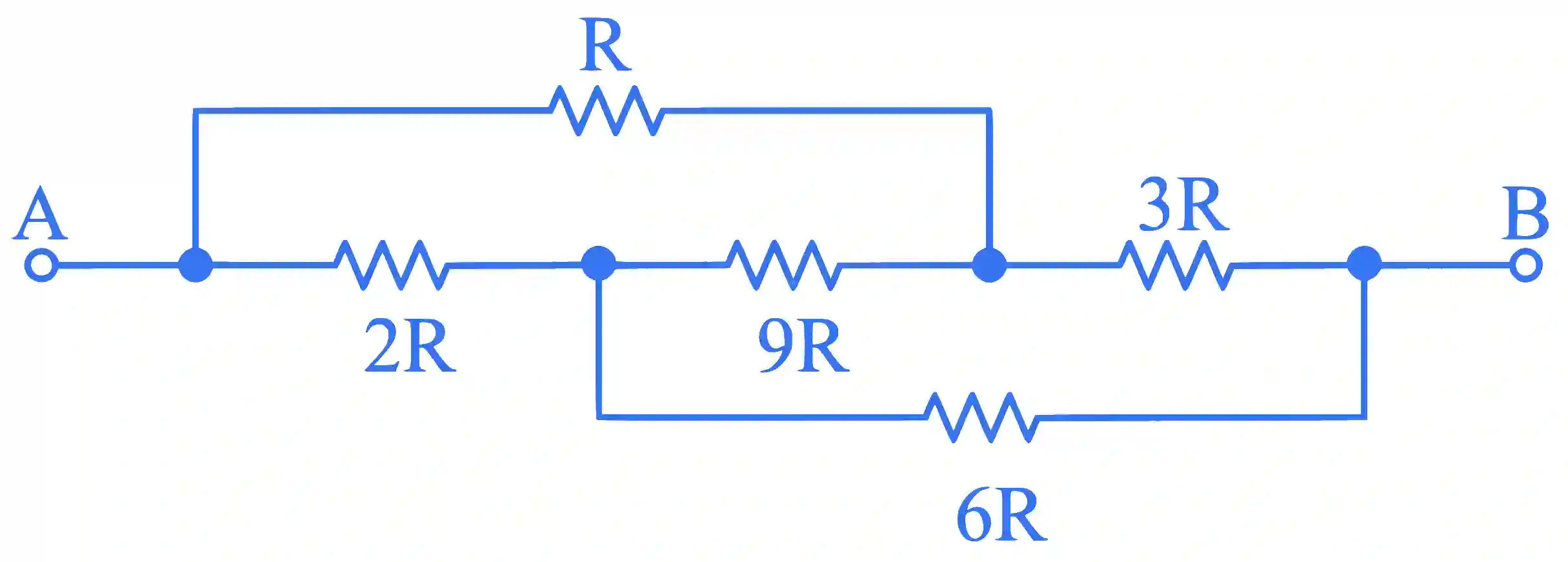

This is balanced Wheatstone bridge,

R_{\mathrm{eq}}=\frac{4 R \times 8 R}{12 R}=\left(\frac{8 R}{3}\right)
