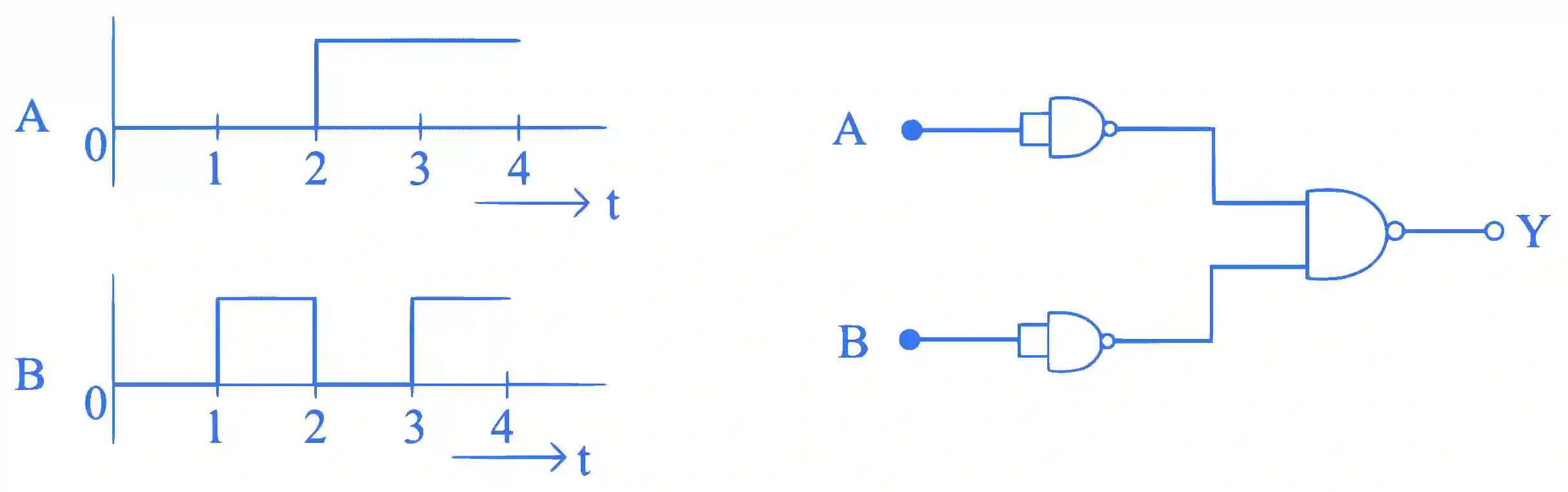

For the logic circuit shown, the output waveform at $Y$ is:

JEE Main 2023 (Online) 8th April Morning Shift Physics - Semiconductor Question 35 English

Multiple Choice Options

A https://ik.imagekit.io/novatra/photos/67a589a17190b5ea011dcaa4ff25c78fc818f3fa6d5daabcde9f43284d86d26b.webp
B https://ik.imagekit.io/novatra/photos/bd117c466c3aa298197e97cdbc222d565fdc98280ce60c9c0aa24d2d952732b8.webp
C https://ik.imagekit.io/novatra/photos/8e119d8c0d89ae2db817e49d05a28da472709a098de64165af85d5624e6b5a15.webp
D https://ik.imagekit.io/novatra/photos/9f33430b644eebd0b3807cf5f5c4eaf6143452e8d1e1134e3d9571ab64ac8b9b.webp

Related Learning Resources & Exam Preparation

JEE Main PYQ Question Bank

Browse year-wise authentic previous years' questions with solutions

Authentic CBT Mock Tests

Simulate official exam environment with live timer and percentile scoring

Accepted Answer

\begin{aligned} For the given circuit the truth table would be : \\ \begin{array}{ccc} A & B & Y \\ 0 & 0 & 0 \\ 0 & 1 & 1 \\ 1 & 0 & 1 \\ 1 & 1 & 1 \end{array} \end{aligned}

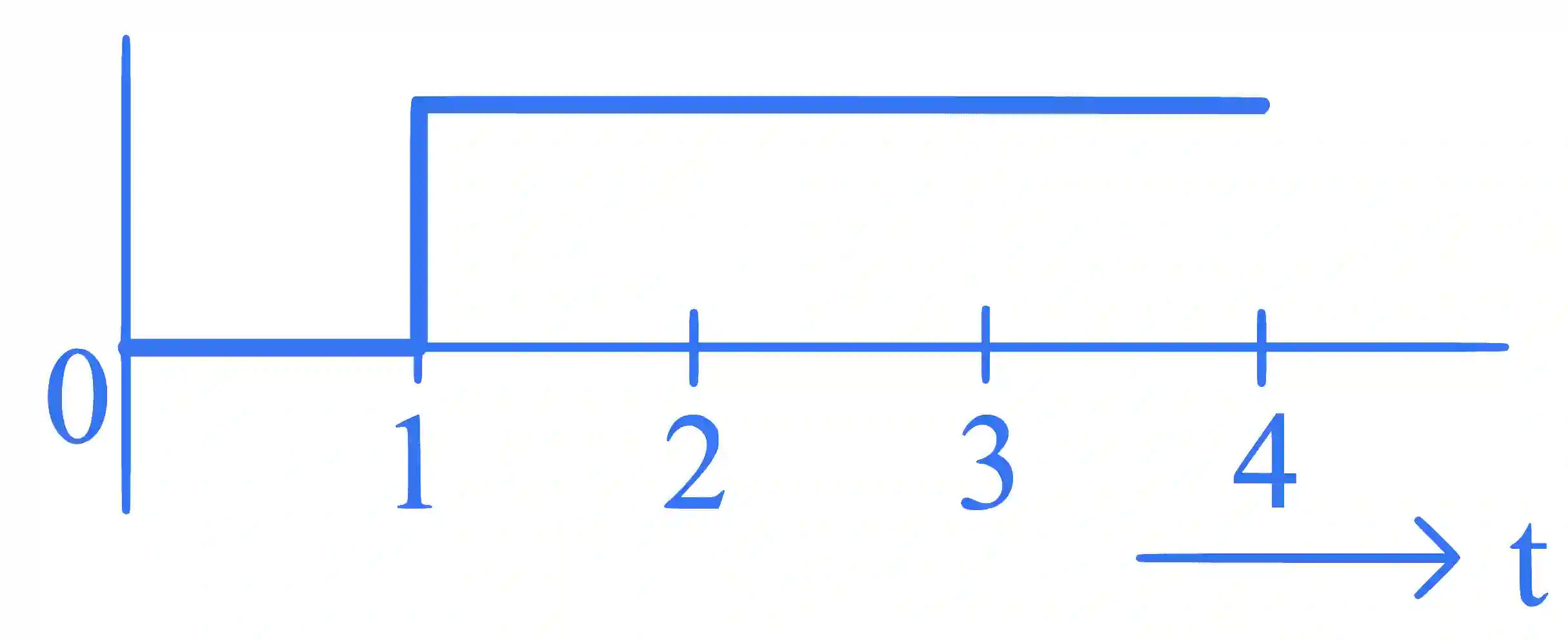

The truth table shows that the output graph is given by :

JEE Main 2023 (Online) 8th April Morning Shift Physics - Semiconductor Question 35 English Explanation

JEE Main 2023 (Online) 8th April Morning Shift Physics - Semiconductor Question 35 English Explanation
