Question

Verified Solution • 2025–26 Session moderate

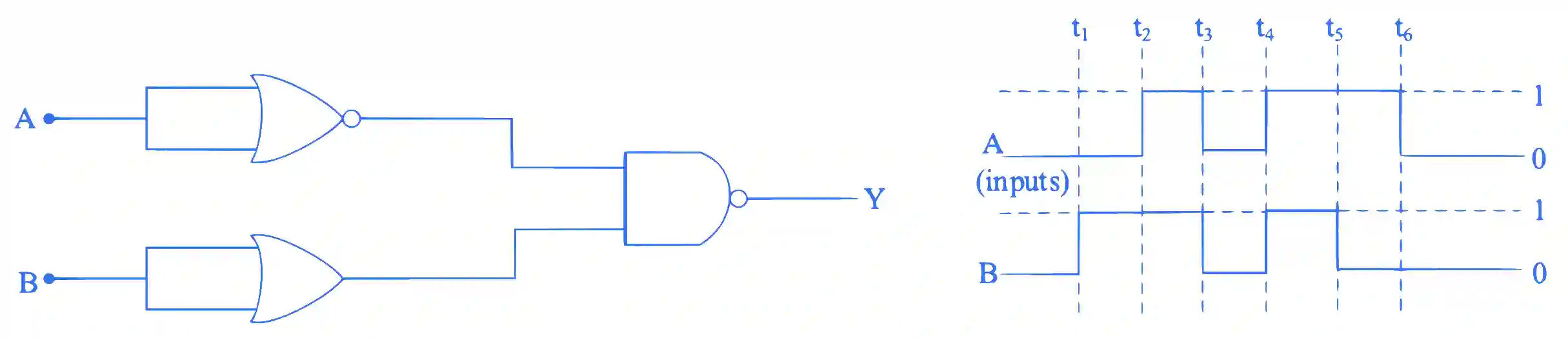

For the following circuit and given inputs A and B, choose the correct option for output ' $Y$ '

JEE Main 2023 (Online) 13th April Morning Shift Physics - Semiconductor Question 42 English

A https://ik.imagekit.io/novatra/photos/554ea6f00c9a26408ea72eb23c0043a3e81dd6518441a0a223b999d7dd370e7b.webp
B https://ik.imagekit.io/novatra/photos/062e6520397f7294da4990a7a8d6aaf0f464bddded733a2f872b4e0e39d2989a.webp
C https://ik.imagekit.io/novatra/photos/e2de0f8d56fb83013ae86df3bf3277fc3f6ccdd2de8d5bb81f2bd3a7d5d5afbc.webp
D https://ik.imagekit.io/novatra/photos/5411879d6a6d1f4c3ed0c5fd43dddf3c7d3a45db8260d49a27f097abee3568e2.webp

Accepted Answer

\begin{aligned} Y = {(A^{'} \cdot B)}^{'} \\ = A + B^{'} \\ \Rightarrow Option D . \end{aligned}

Step-by-Step Verified Solution
