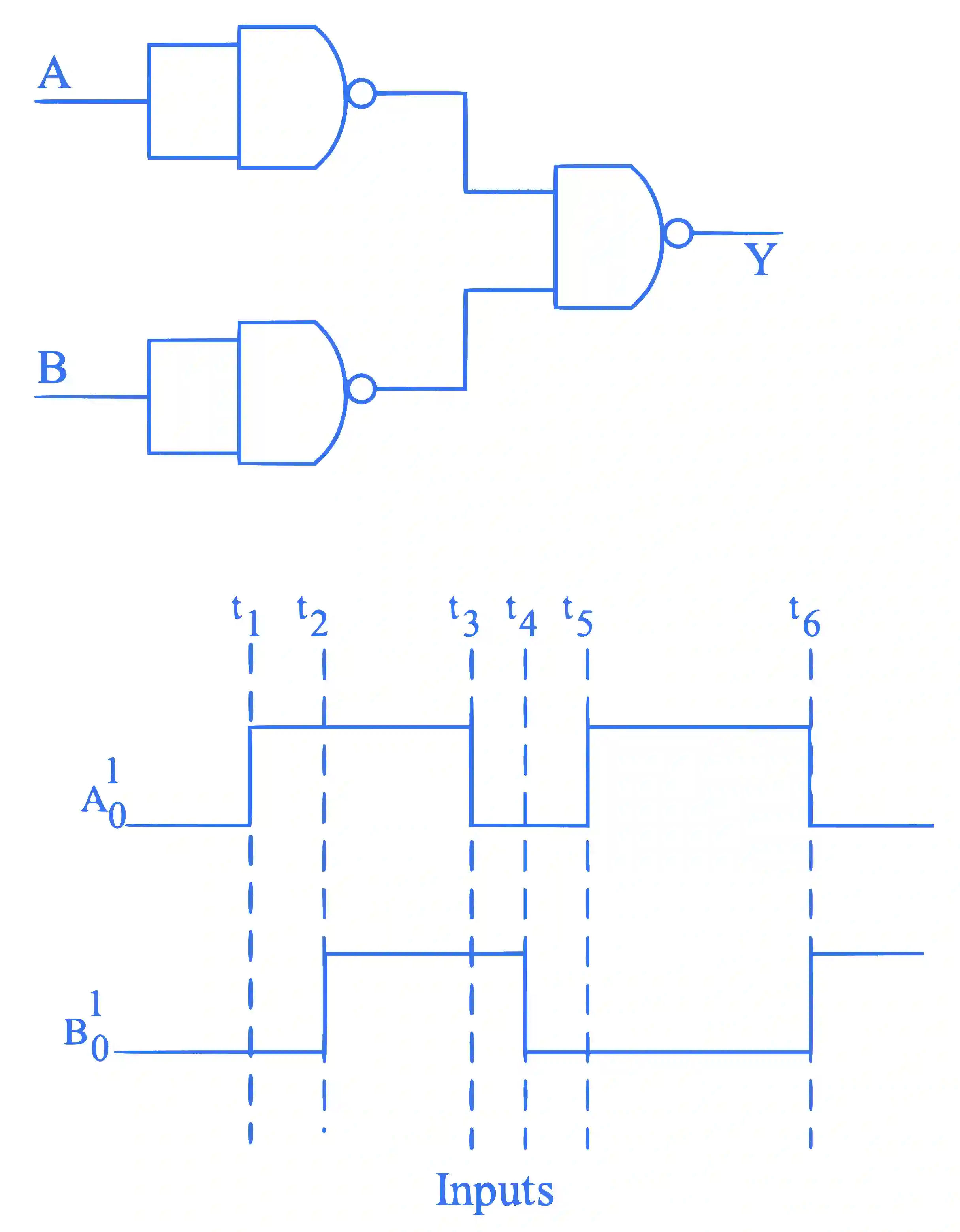

The output waveform of the given logical circuit for the following inputs A and B as shown below, is :

JEE Main 2023 (Online) 30th January Morning Shift Physics - Semiconductor Question 52 English

Multiple Choice Options

  • A https://ik.imagekit.io/novatra/photos/8e3d61d5c15fe3e0675cbbe25b80965475d9519798a788e92ab56b86ba355f39.webp
  • B https://ik.imagekit.io/novatra/photos/6ea1ed13a70a6b3cff08bec0564c05fbcf9587c5ac805f66cf4b17b834a6f9f5.webp
  • C https://ik.imagekit.io/novatra/photos/bd430ab672e41dddf6d7bbf1fc74a9fe1ab229d37f580be6f1aa65aa8b39dcfb.webp
  • D https://ik.imagekit.io/novatra/photos/7c4375e94e7e62a1a667144ece37ecbf22229273c222c89555af0619c315ea35.webp

Step-by-Step Verified Solution

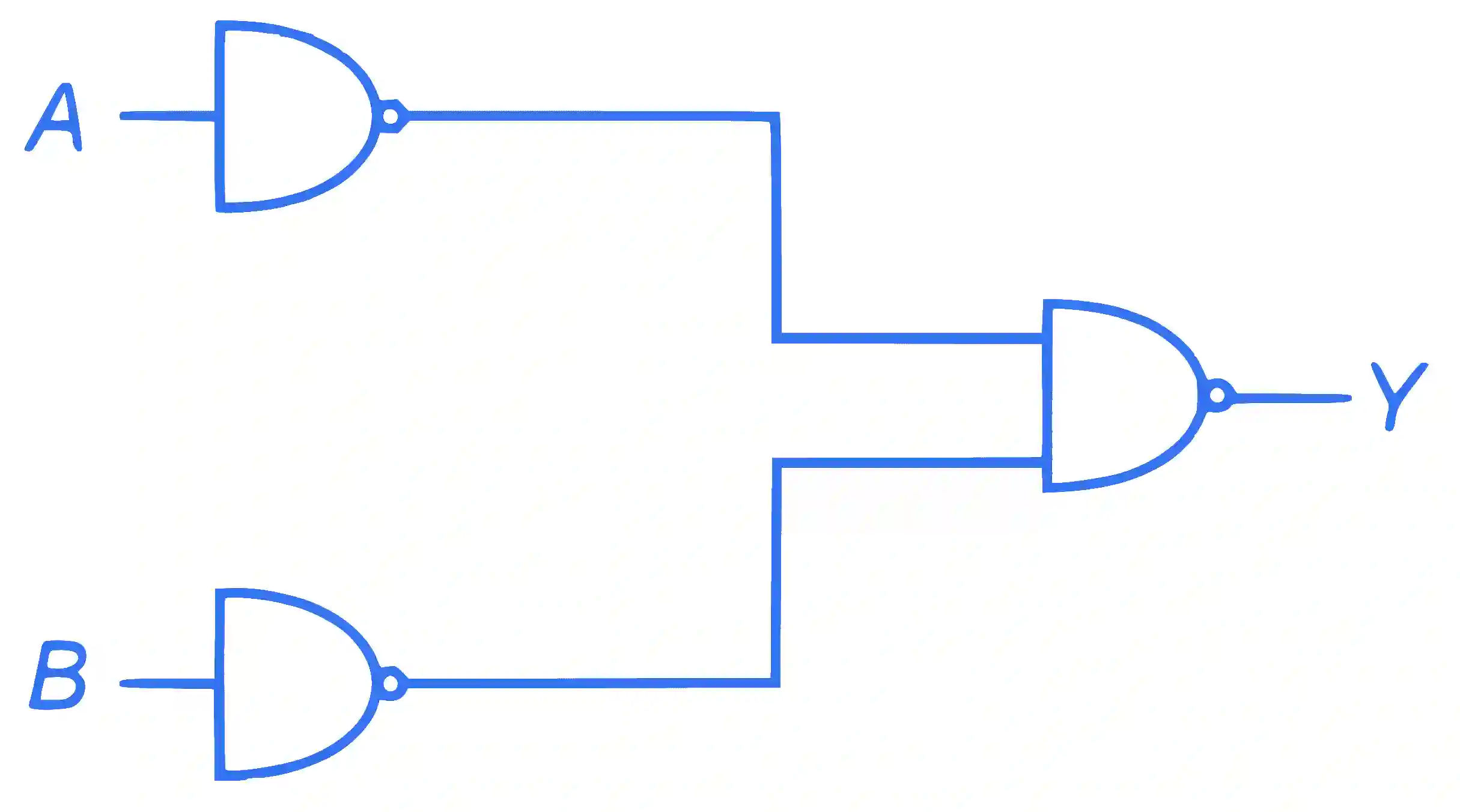

JEE Main 2023 (Online) 30th January Morning Shift Physics - Semiconductor Question 52 English Explanation 1

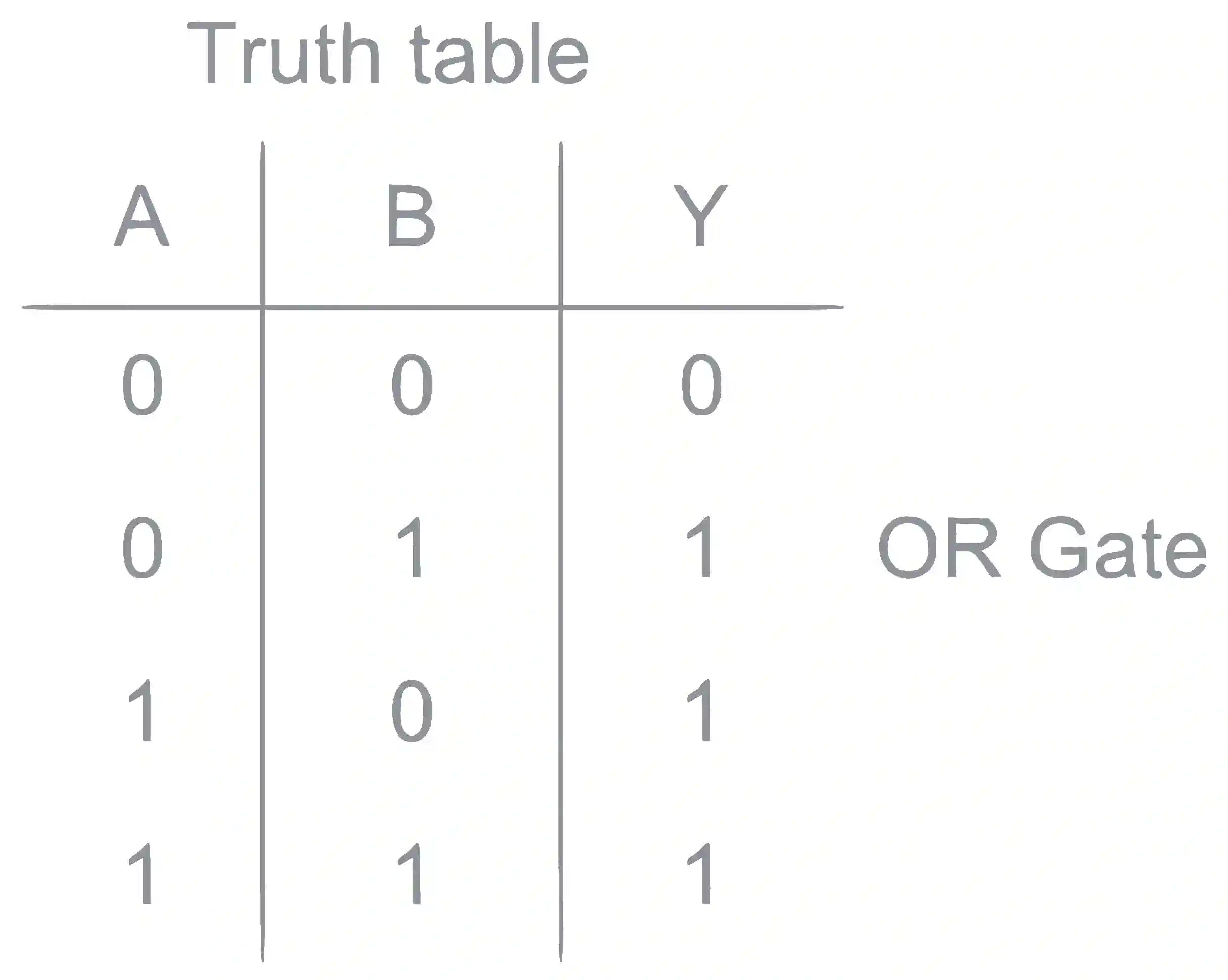

JEE Main 2023 (Online) 30th January Morning Shift Physics - Semiconductor Question 52 English Explanation 2
