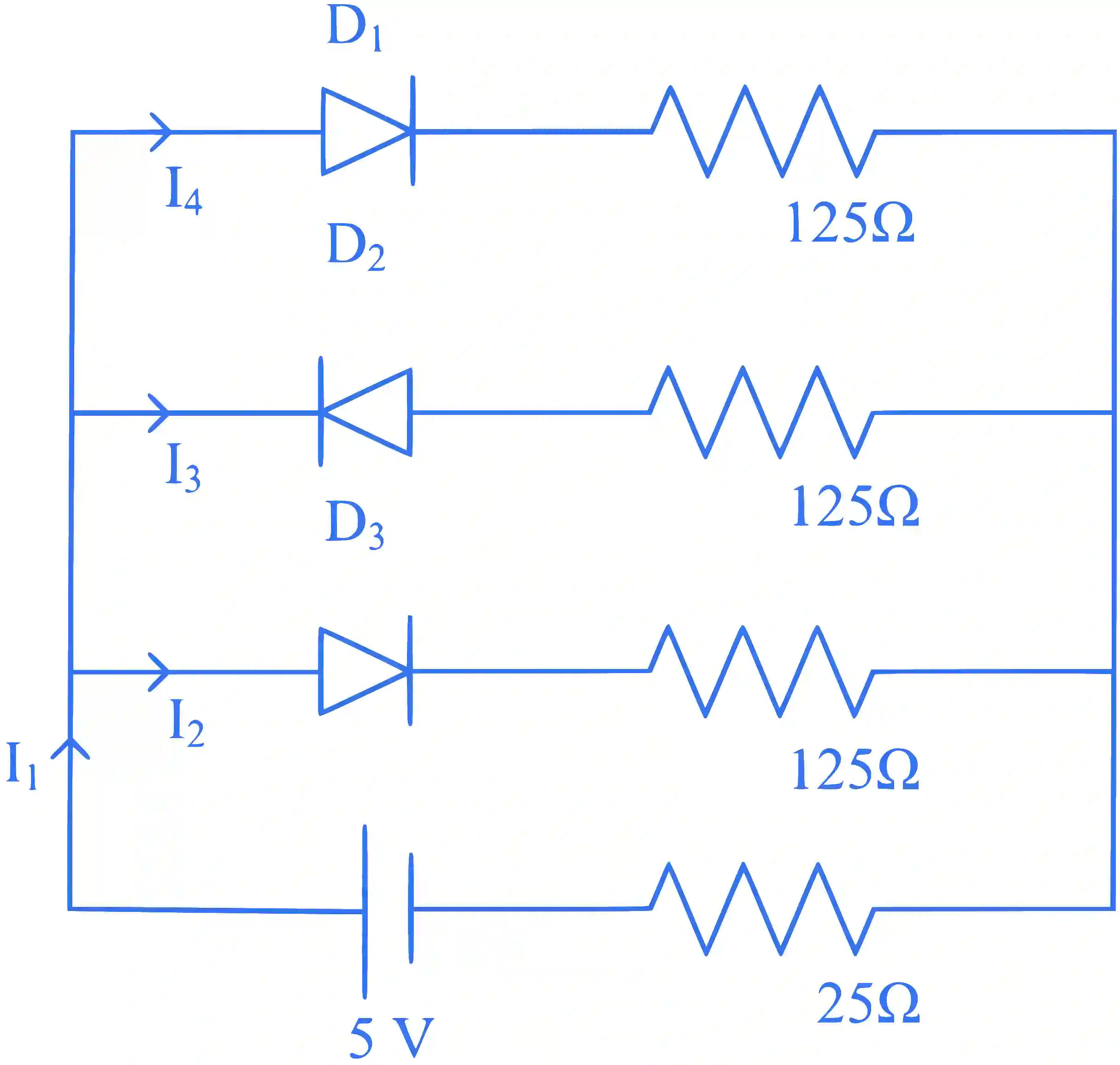

If each diode has a forward bias resistance of $25 Ω$ in the below circuit,

JEE Main 2023 (Online) 10th April Evening Shift Physics - Semiconductor Question 38 English

Which of the following options is correct :

Accepted Answer

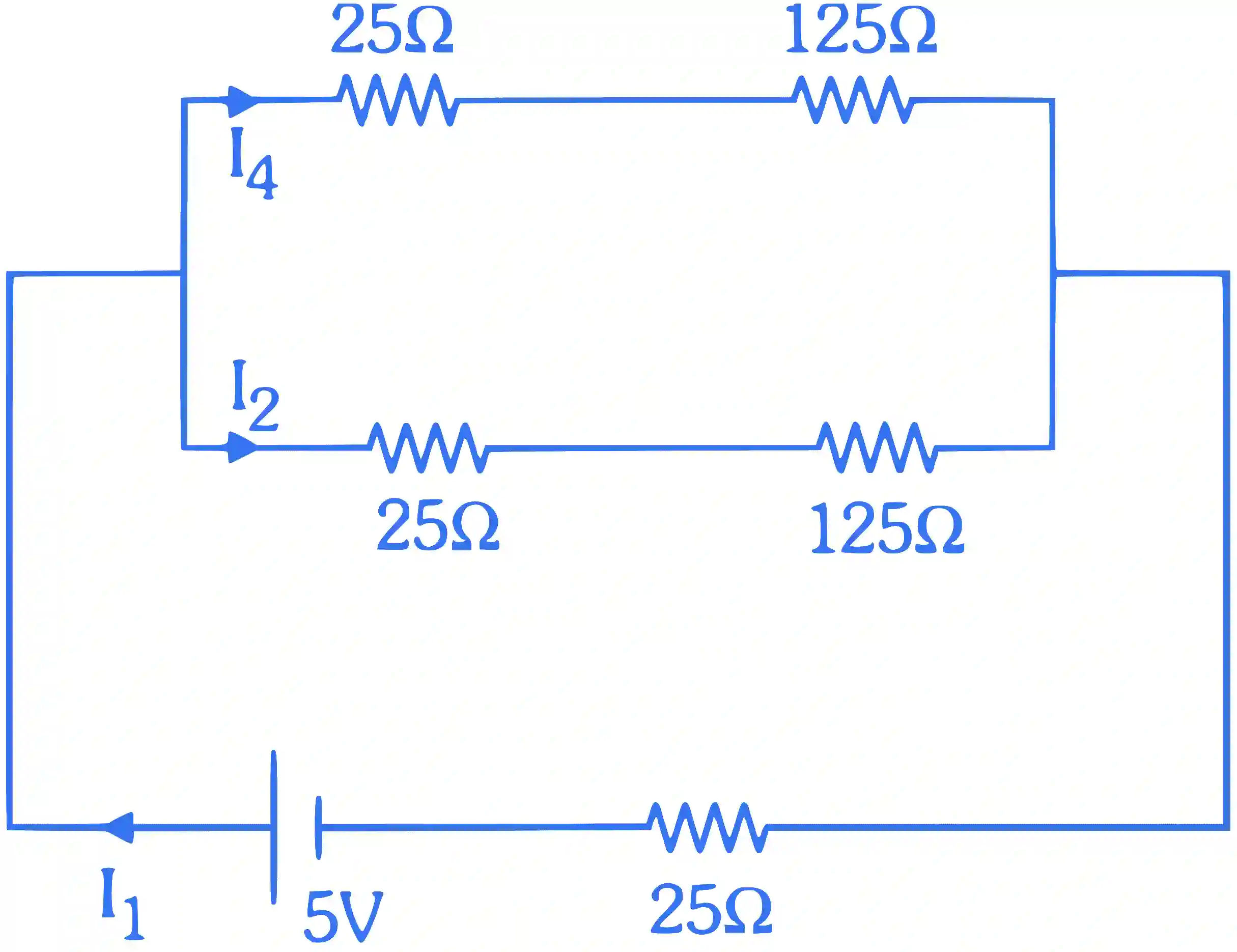

\begin{aligned} R_{eq} = \frac{150 \times 150}{300} + 25 = 100 Ω \\ I_{1} = \frac{5}{10} = 0.05 A \\ I_{2} = I_{4} = \frac{0.05}{2} = 0.025 A \\ \frac{I_{1}}{I_{2}} = 2 \end{aligned}
