QJEEM23Ph2c81: JEE Main 2023 Physics - Class 11 JEEM23Ph2c81 Solution: As shown in figure, a garden roller is pushed with a force of…

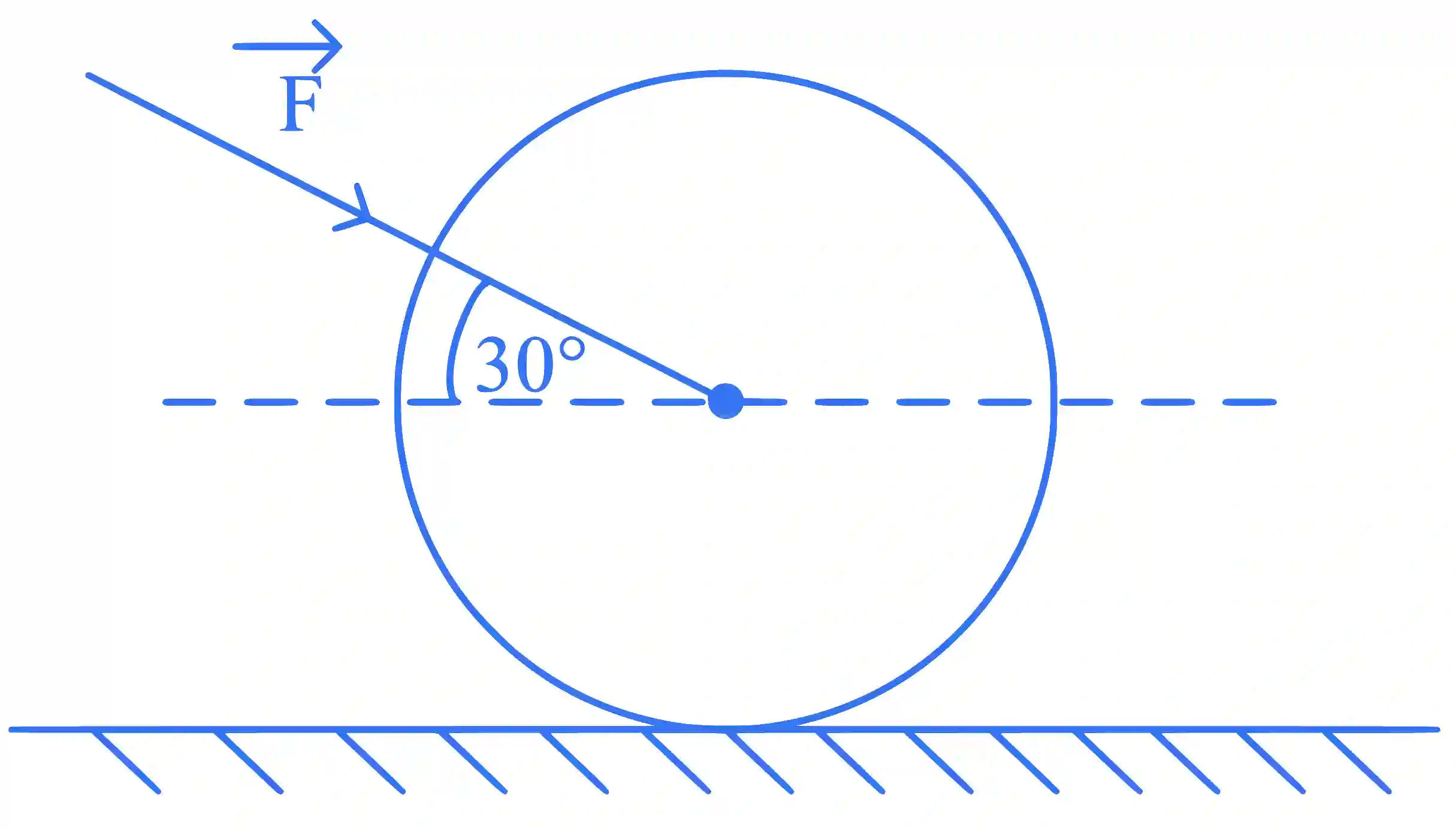

As shown in figure, a 70 kg70 \mathrm{~kg} garden roller is pushed with a force of F⃗=200 N\vec{F}=200 \mathrm{~N} at an angle of 30∘30^{\circ} with horizontal. The normal reaction on the roller is

(Given g=10 m s−2\mathrm{g=10~m~s^{-2}} )

JEE Main 2023 (Online) 31st January Morning Shift Physics - Laws of Motion Question 37 English

Multiple Choice Options

  • A 800 N
  • B 600 N
  • C 200 3\sqrt3 N
  • D 800 2\sqrt2 N

Step-by-Step Verified Solution

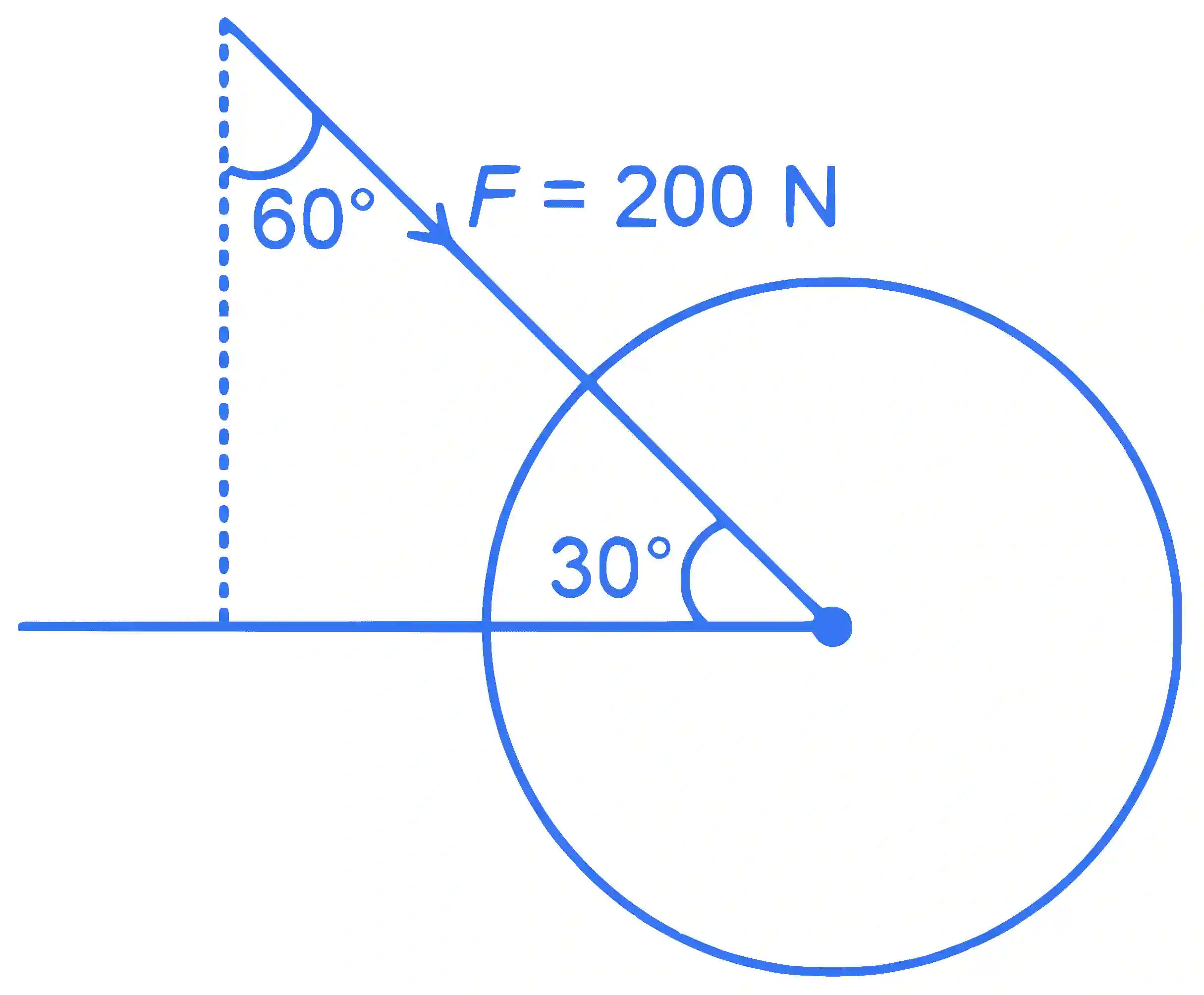

JEE Main 2023 (Online) 31st January Morning Shift Physics - Laws of Motion Question 37 English Explanation
Normal reaction =70 g+Fcos⁡60=70 \mathrm{~g}+F \cos 60

=700+100=700+100

=800 N=800 \mathrm{~N}
