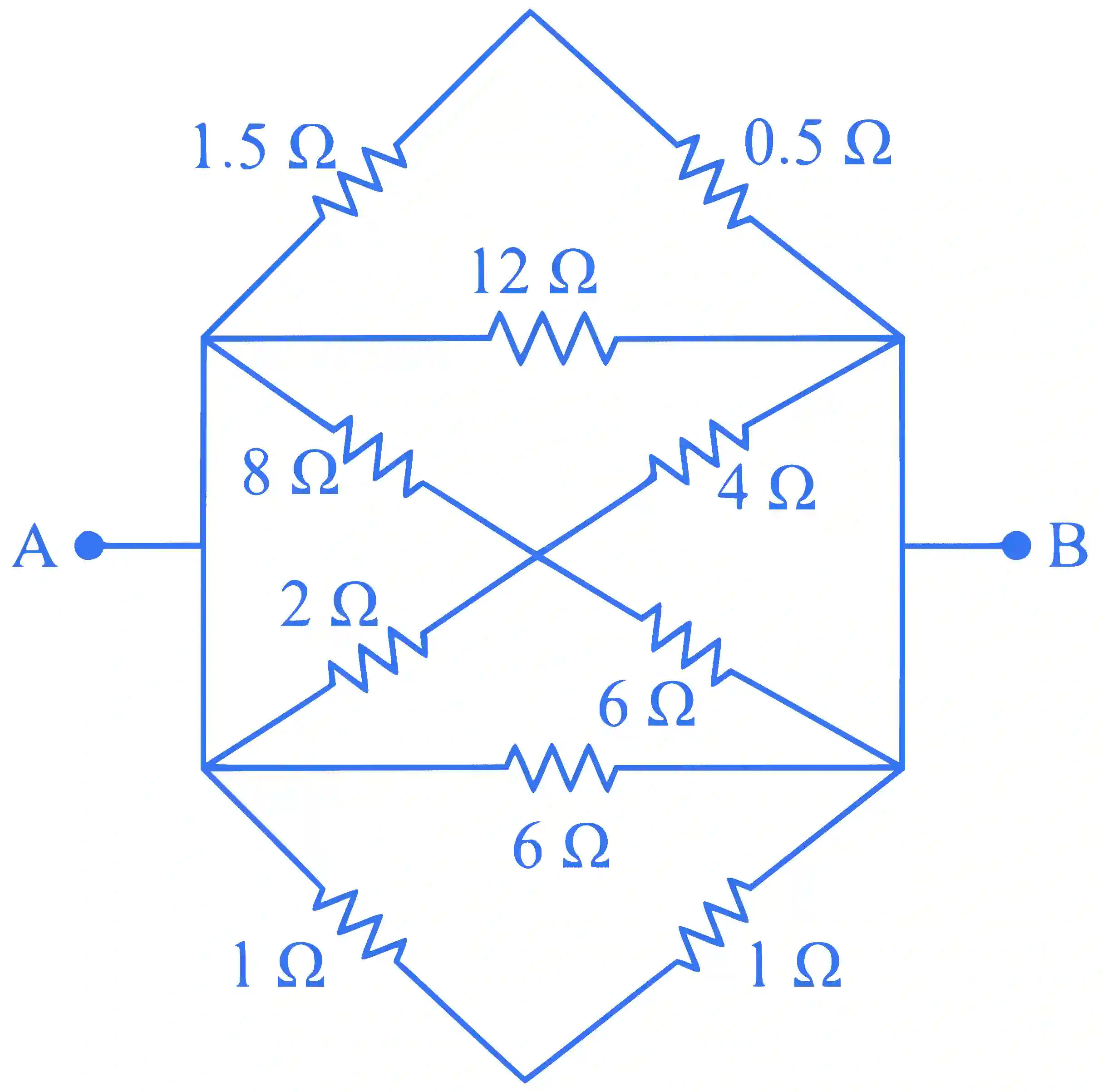

The equivalent resistance between

A

and

B

is _________.

JEE Main 2023 (Online) 30th January Evening Shift Physics - Current Electricity Question 99 English

Accepted Answer

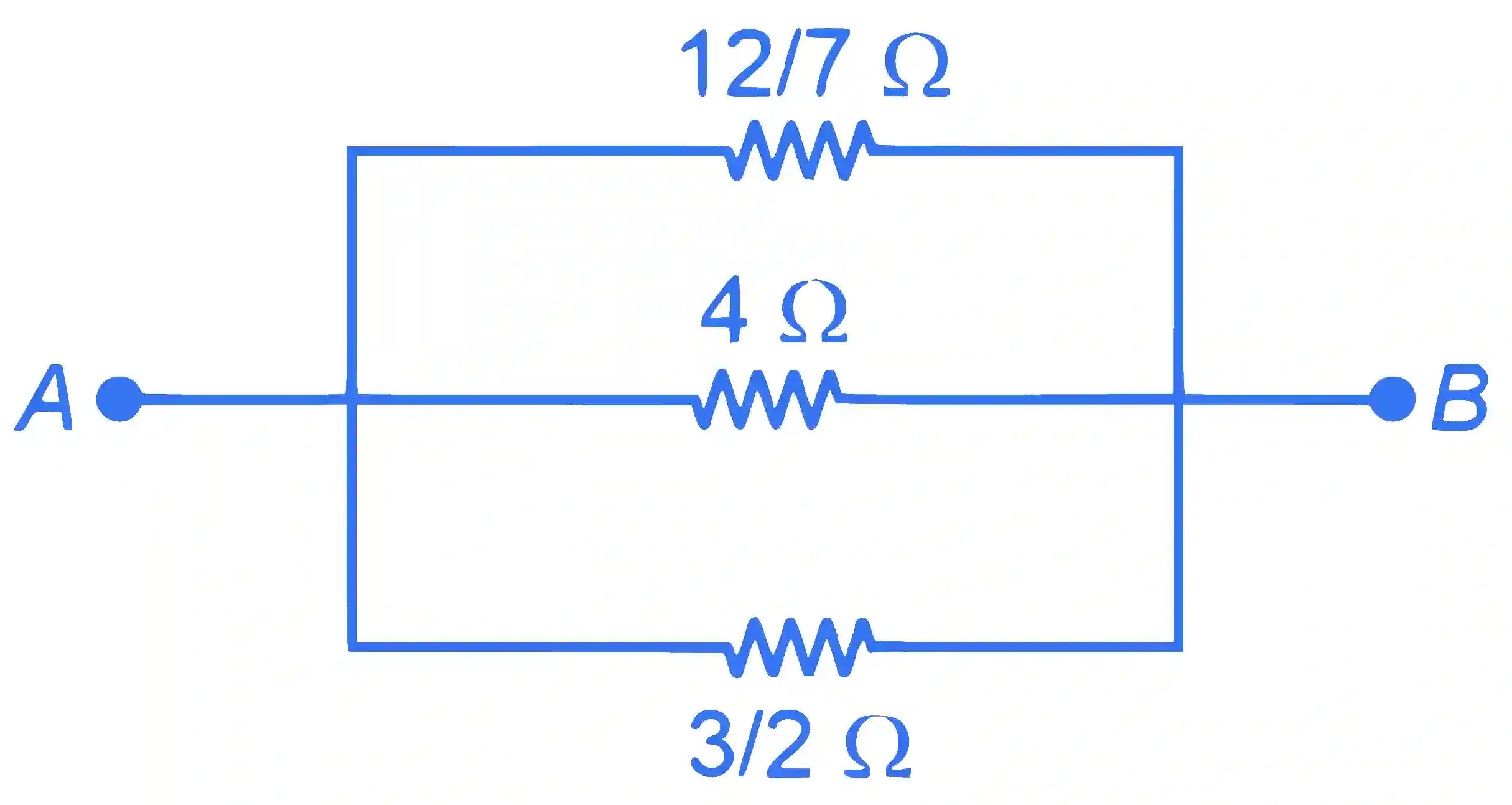

Equivalent circuit can be drawn as

JEE Main 2023 (Online) 30th January Evening Shift Physics - Current Electricity Question 99 English Explanation

$\therefore$ $\frac{1}{R_{AB}}=\frac{7}{12}+\frac{1}{4}+\frac{2}{3}$

$R_{AB}=\frac{2}{3}~\Omega$
