QJEEM22Phe948: JEE Main 2022 Physics - Class 12 JEEM22Phe948 Solution: In the circuit shown below, maximum zener diode current will be …

Question

Verified Solution • 2025–26 Session moderate

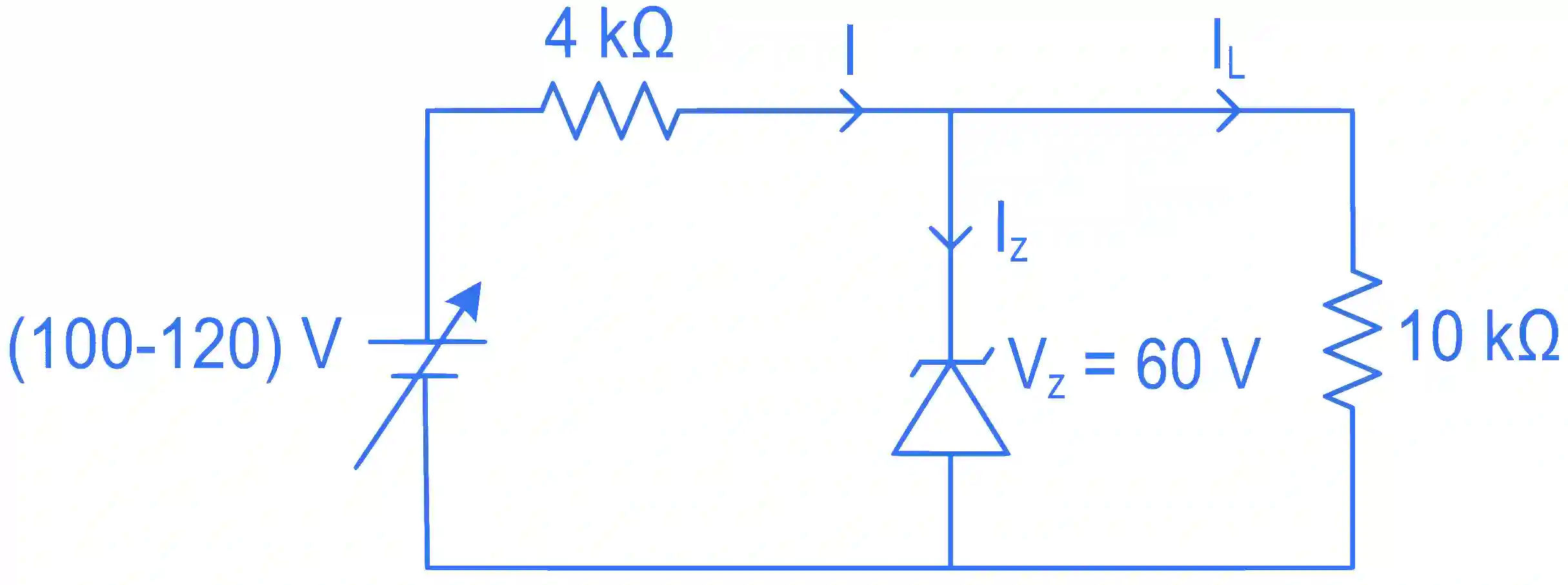

In the circuit shown below, maximum zener diode current will be _________ $\mathrm{mA}$ .

JEE Main 2022 (Online) 26th July Morning Shift Physics - Semiconductor Question 65 English

Accepted Answer

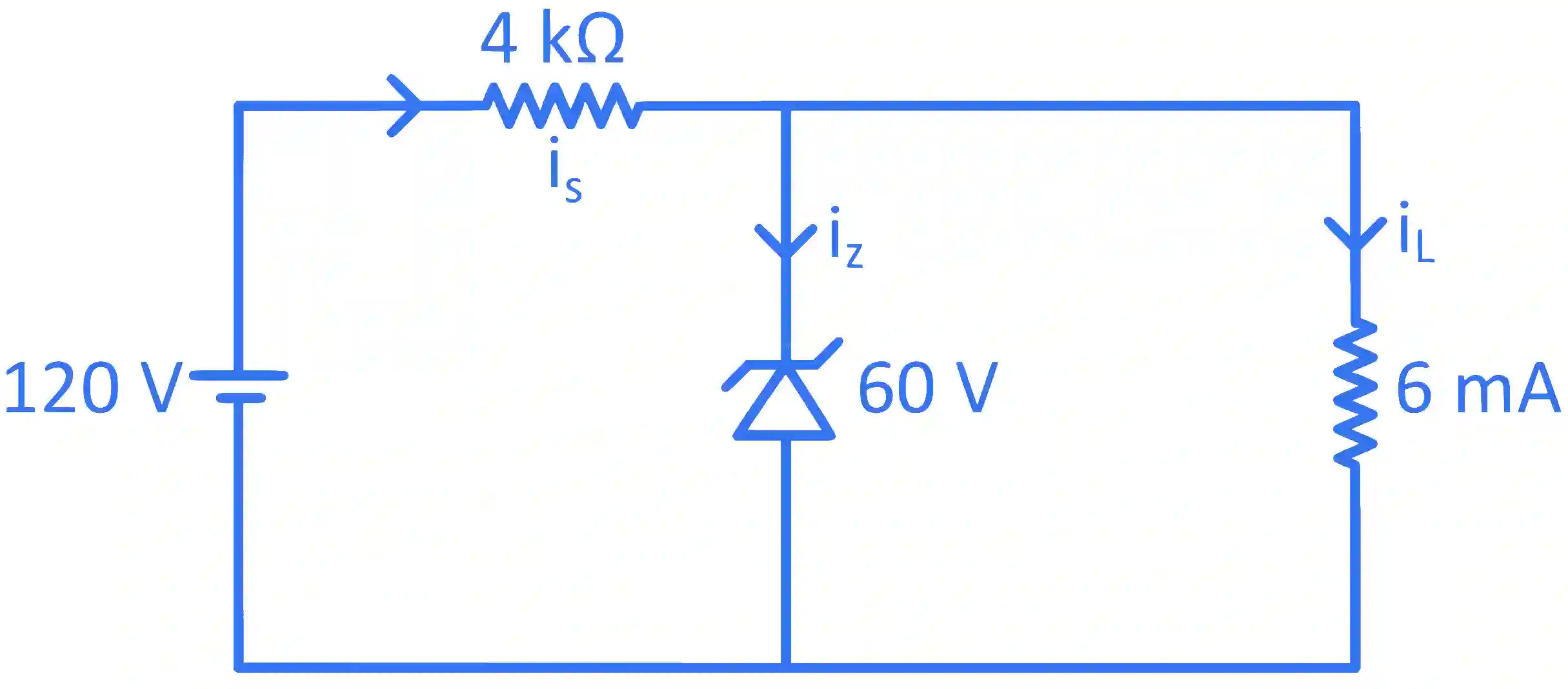

JEE Main 2022 (Online) 26th July Morning Shift Physics - Semiconductor Question 65 English Explanation

${i_s} = {{60} \over {4 \times {{10}^3}}} = 15 \times {10^{ - 3}} = 15$ mA

${i_L} = {{60} \over {10 \times {{10}^3}}} = 6$ mA

${I_z} = {i_s} - {i_L} = 9$ mA
