QJEEM22Phe549: JEE Main 2022 Physics - Class 12 JEEM22Phe549 Solution: In a series LCR circuit, the inductance, capacitance and…

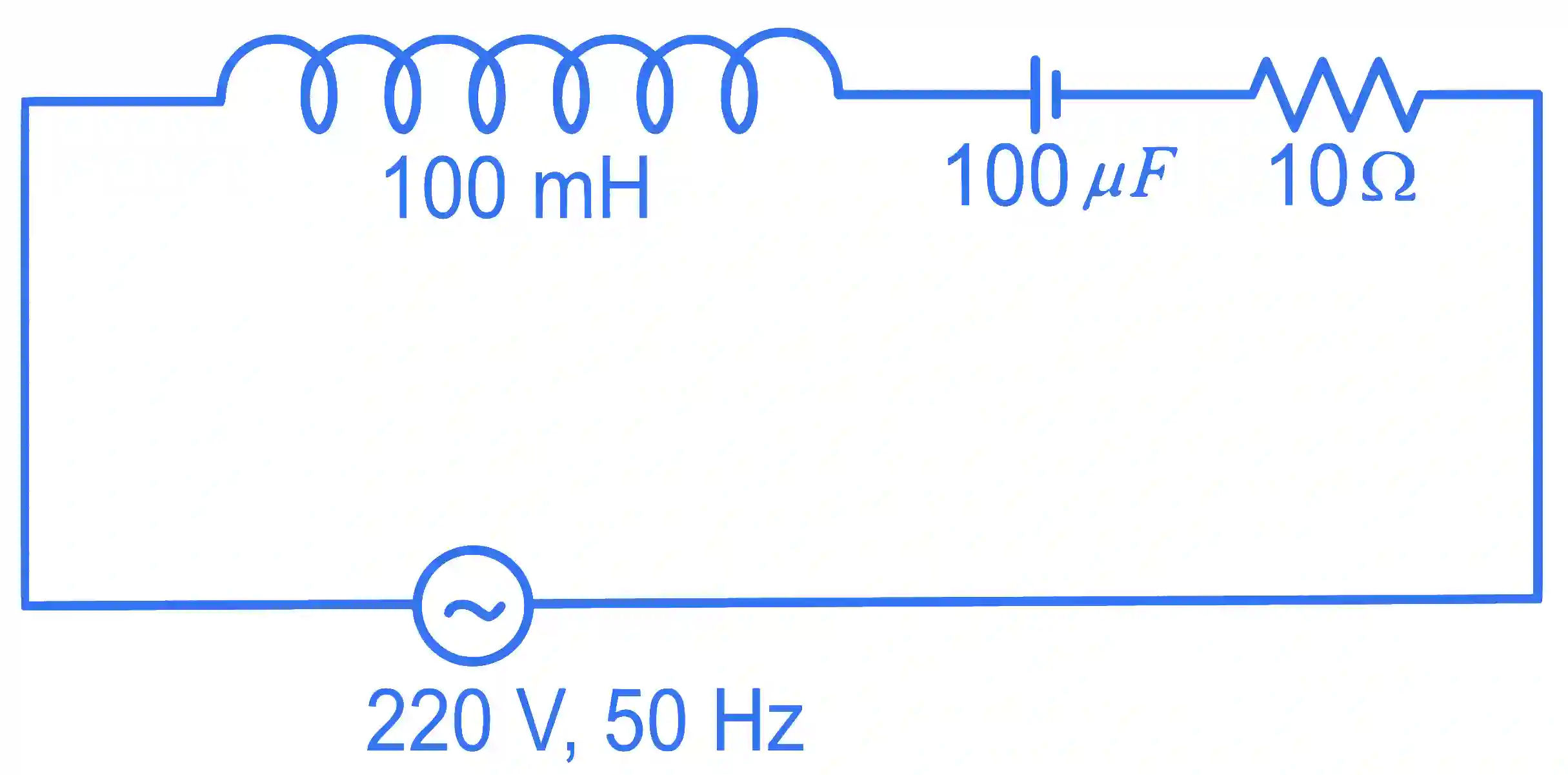

In a series LCR circuit, the inductance, capacitance and resistance are L = 100 mH, C = 100 μF and R = 10 Ω respectively. They are connected to an AC source of voltage 220 V and frequency of 50 Hz. The approximate value of current in the circuit will be ___________ A.

JEE Main 2022 (Online) 25th June Evening Shift Physics - Alternating Current Question 78 English

Step-by-Step Verified Solution

Z=R2+(xL+xC)2

=102+[10π−100π]2Ω

≃10Ω

⇒ Current =22010 A = 22 A
