A 72 $\Omega$ galvanometer is shunted by a resistance of 8 $\Omega$ . The percentage of the total current which passes through the galvanometer is :

Accepted Answer

JEE Main 2022 (Online) 27th June Morning Shift Physics - Current Electricity Question 145 English Explanation

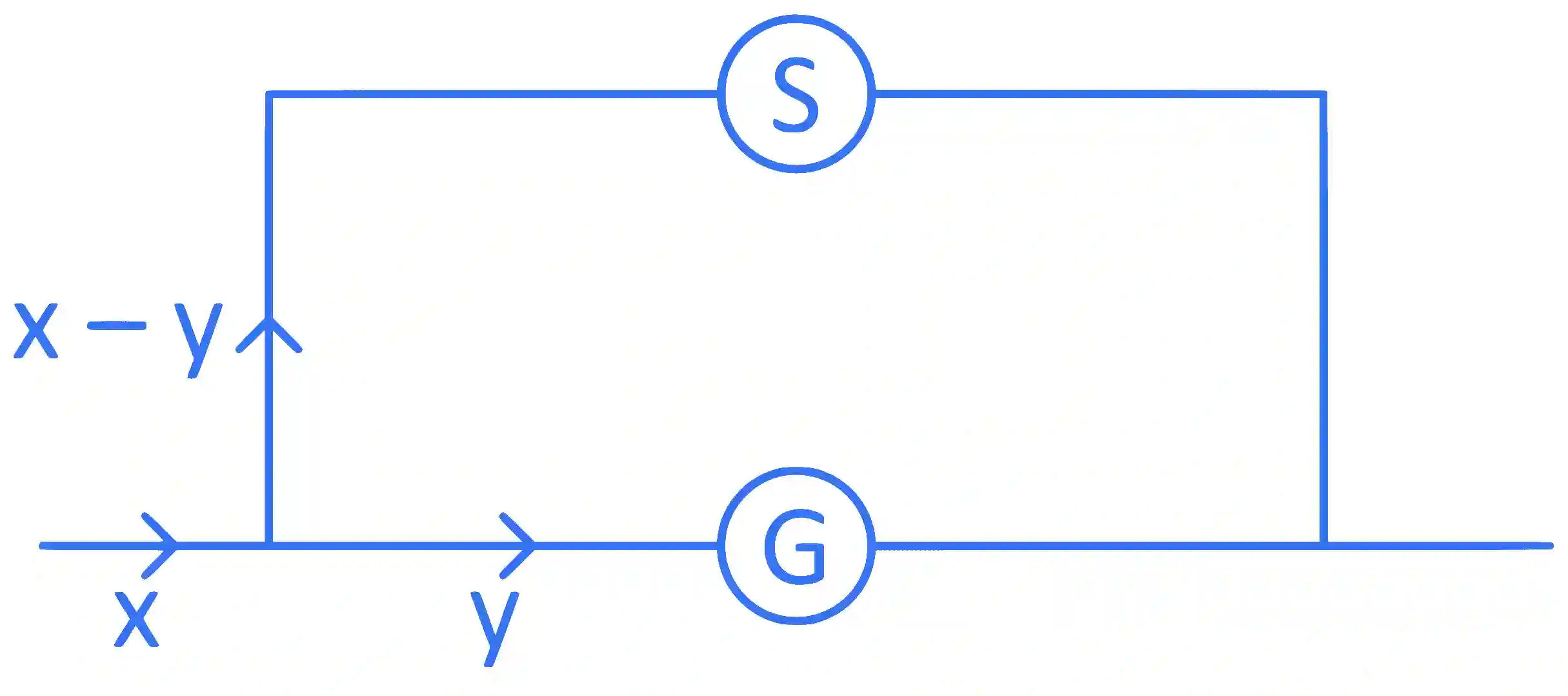

From the given setup

$y \times {R_G} = (x - y)({R_S})$

$\Rightarrow y \times 72 = (x - y) \times 8$

$\Rightarrow 9y = x - y$

$\Rightarrow y = {x \over {10}}$ or 10% of x
