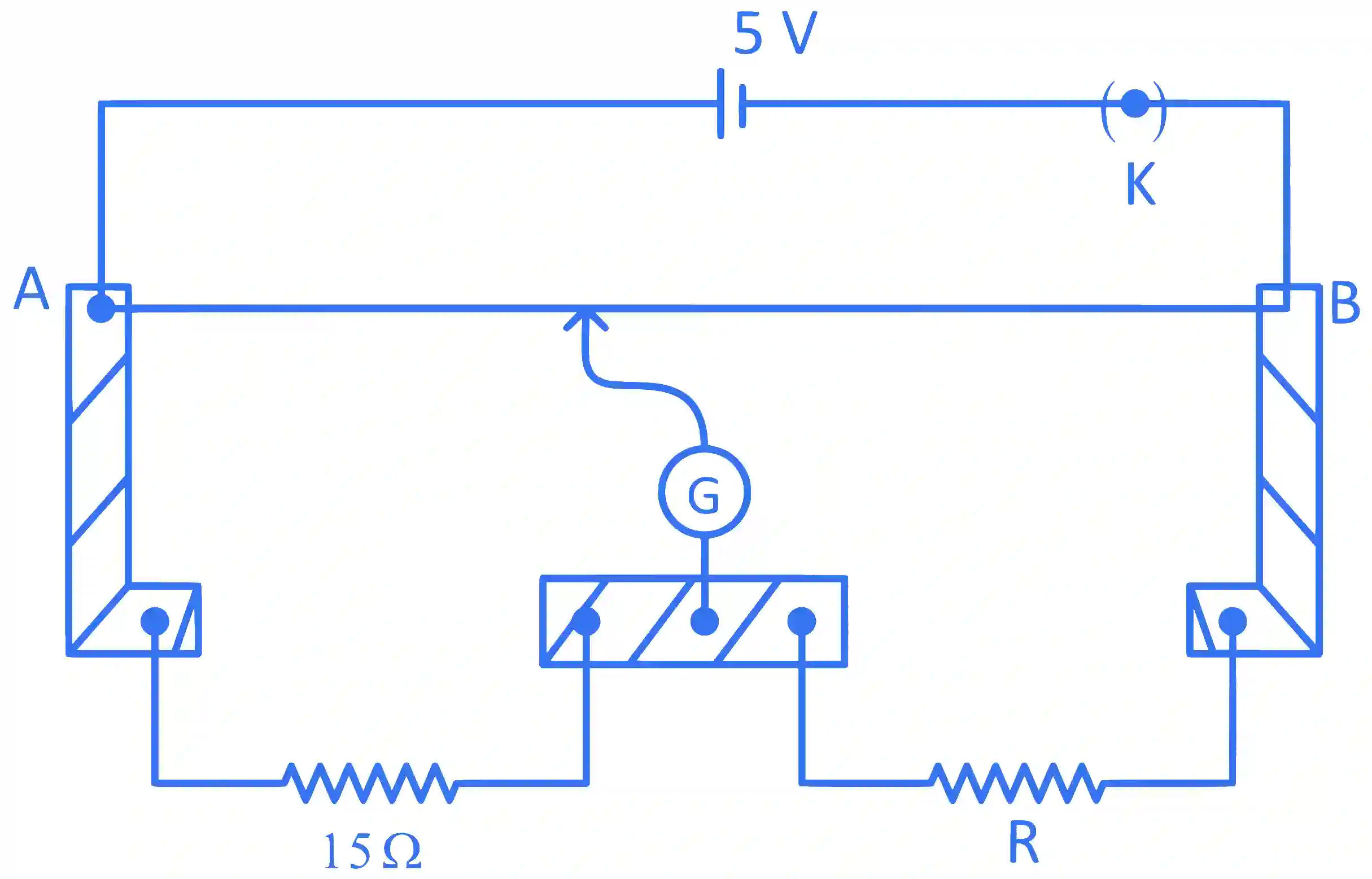

A meter bridge setup is shown in the figure. It is used to determine an unknown resistance R using a given resistor of 15 Ω. The galvanometer (G) shows null deflection when tapping key is at 43 cm mark from end A. If the end correction for end A is 2 cm, then the determined value of R will be ____________ Ω.

JEE Main 2022 (Online) 28th June Morning Shift Physics - Current Electricity Question 150 English

Step-by-Step Verified Solution

43+215=57R

R=57×1545=19Ω
