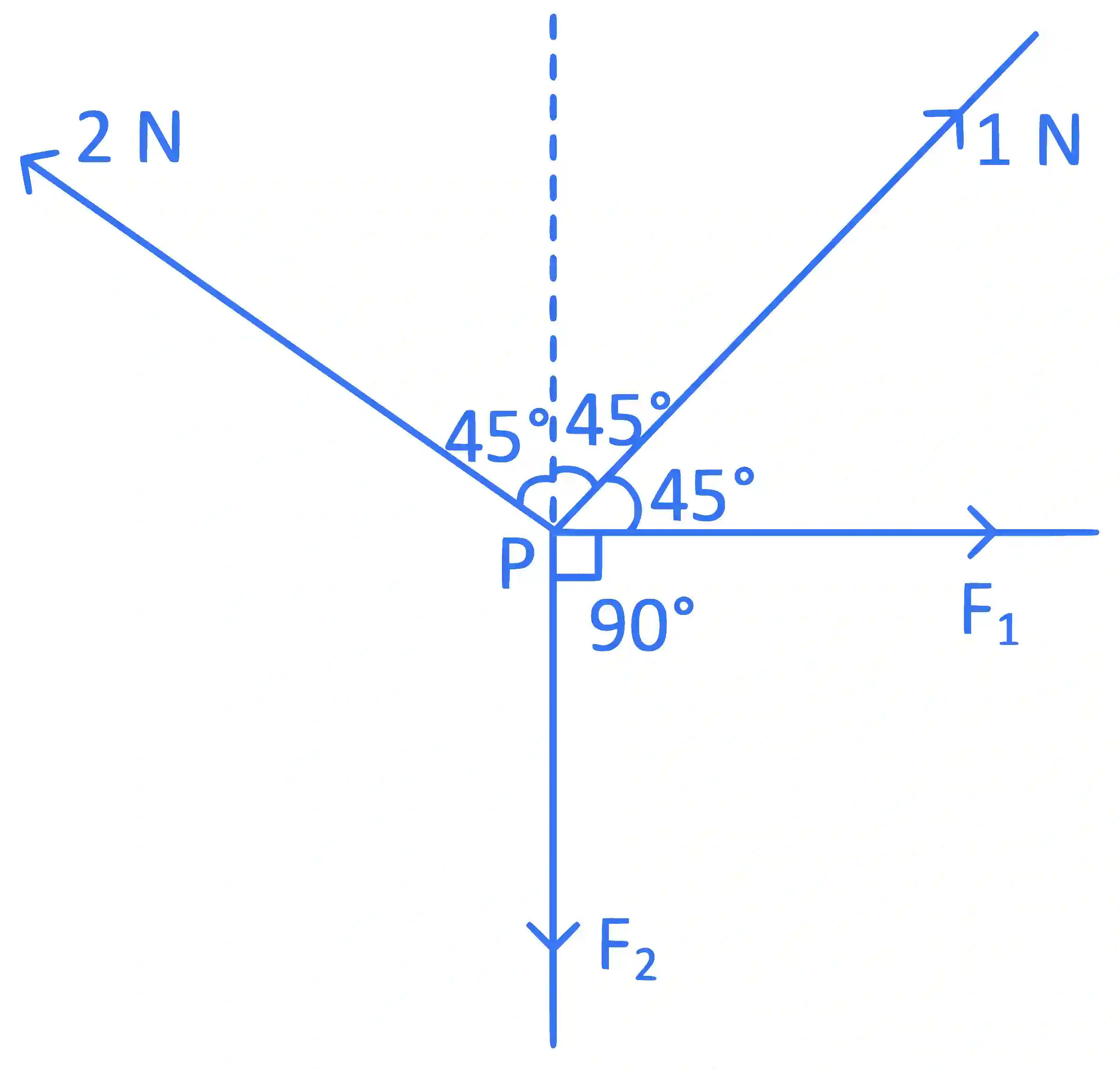

Four forces are acting at a point $P$ in equilibrium as shown in figure. The ratio of force $F_{1}$ to $F_{2}$ is $1 : x$ where $x =$ _____________.

JEE Main 2022 (Online) 25th July Morning Shift Physics - Laws of Motion Question 52 English

Accepted Answer

$F_{1} = + 2 \times \frac{1}{\sqrt{2}} - \frac{1}{\sqrt{2}} = \frac{1}{\sqrt{2}}$

$F_{2} = 2 \times \frac{1}{\sqrt{2}} + \frac{1}{\sqrt{2}} = \frac{3}{\sqrt{2}}$

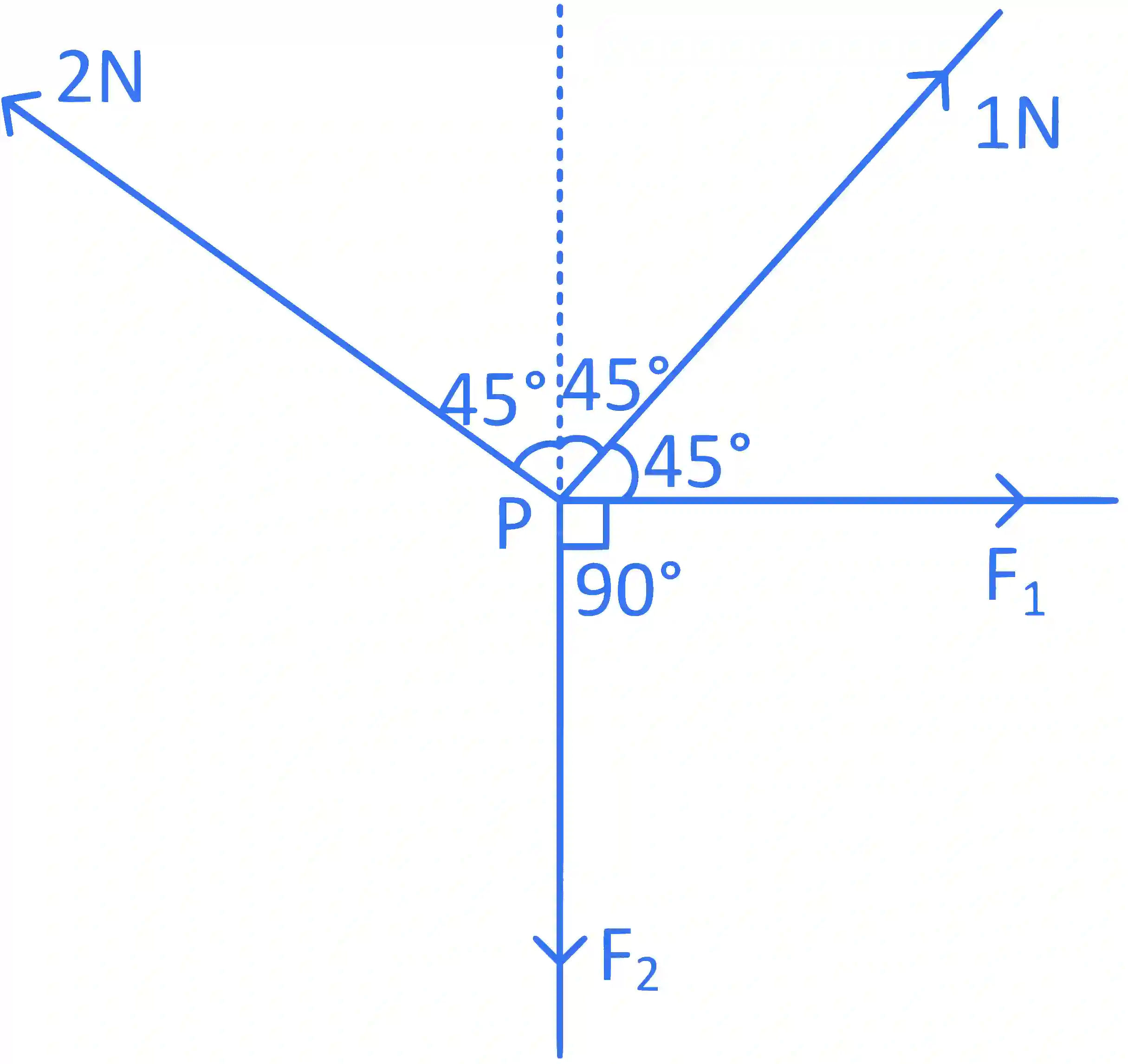

JEE Main 2022 (Online) 25th July Morning Shift Physics - Laws of Motion Question 52 English Explanation

$\frac{F_{1}}{F_{2}} = \frac{1}{3} = \frac{1}{x} \Rightarrow x = 3$
