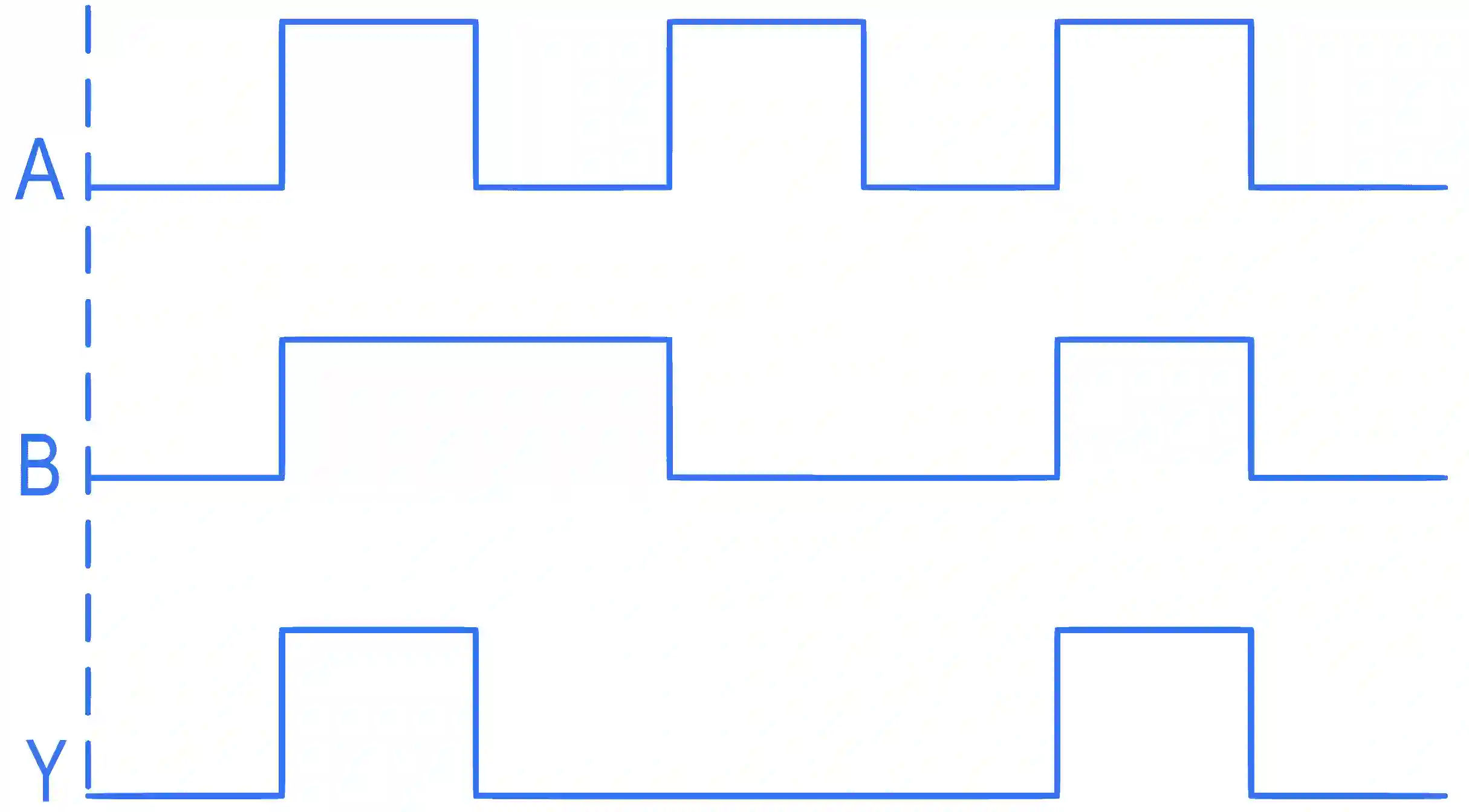

A logic gate circuit has two inputs A and B and output Y. The voltage waveforms of A, B and Y are shown below.
The logic gate circuit is :
Multiple Choice Options
- A AND gate
- B OR gate
- C NOR gate
- D NAND gate
Step-by-Step Verified Solution
From waveforms, it is an AND gate.
