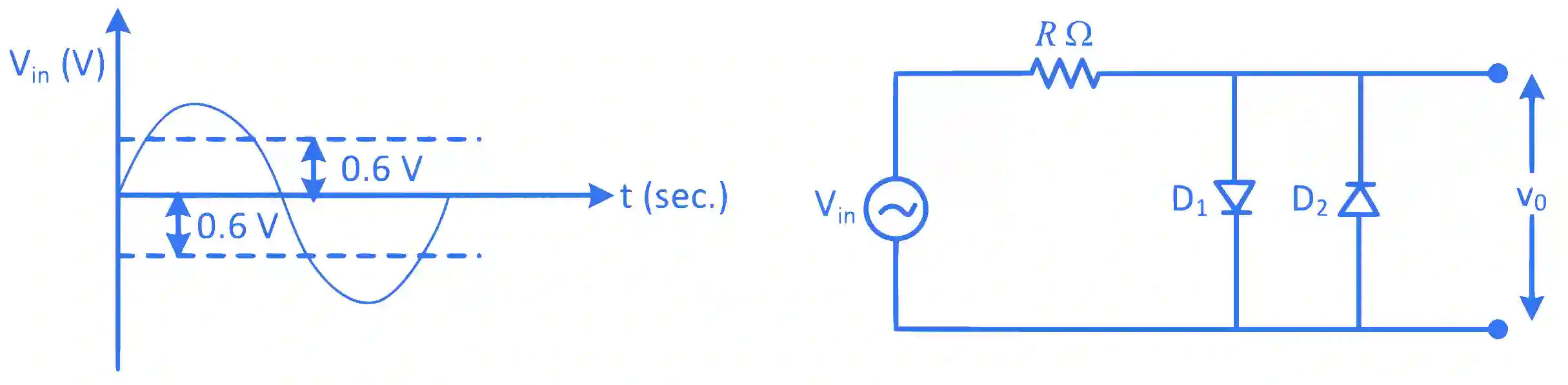

In the given circuit the input voltage Vin is shown in figure. The cut-in voltage of p-n junction diode (D1 or D2) is 0.6 V. Which of the following output voltage (V0) waveform across the diode is correct?

JEE Main 2022 (Online) 28th June Evening Shift Physics - Semiconductor Question 85 English

Multiple Choice Options

  • A https://ik.imagekit.io/novatra/photos/17ac9510f072b3bae66f21a3f2542ae6af07182f4df864010b4efa4b6fcdca33.webp
  • B https://ik.imagekit.io/novatra/photos/bbd962659e59b475e181771104a52ae3b94d47d60980323e050dee45a8c5db45.webp
  • C https://ik.imagekit.io/novatra/photos/9dd7d7d48a170ea447500084578c0b6c8e6f7ae93b2fae6980f2d1b72fddf4cf.webp
  • D https://ik.imagekit.io/novatra/photos/0abbfaf1518357d4b953d71b9b0f6372fa6b84cde38e952ead4c180f81fae4c4.webp

Step-by-Step Verified Solution

Till ∣V∣≤0.6V|V| \le 0.6V

∣V0∣=∣V∣|{V_0}| = |V|

So correct graph will be D.
